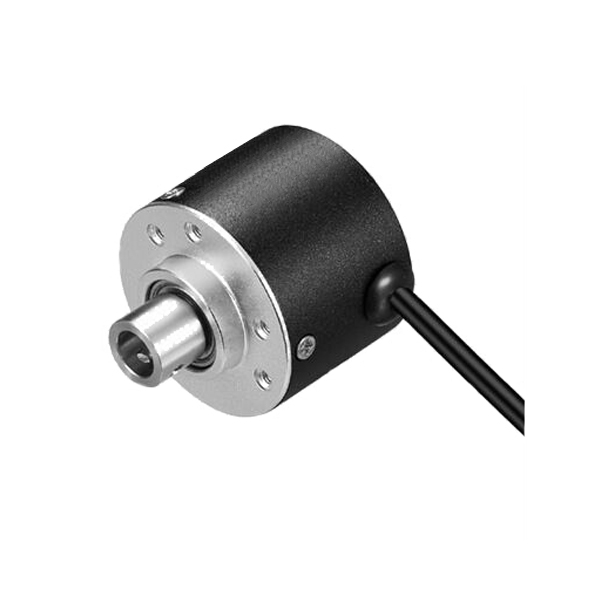

Absolute Single Turn Encoder, 12 Bit, 4-20mA

0 review(s) | Add your review

SKU: SUCH-RE-BMJ001

$149.50

● Working voltage 8~30VDC ● 4-20mA analog voltage output ● Measurement range 0~360° ● Protection rating IP56

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Buy an absolute single-turn encoder for angle measurement and positioning control. SUCH absolute rotary encoders are among the most commonly used measuring components in industrial automation, featuring vibration and shock resistance, and are widely used in motors and various automated equipment. The 12-bit absolute single-turn rotary encoder can operate at 8~30VDC voltage, has a measurement range of 0~360°, a 4-20mA output, and an IP56 protection rating.

Feature

The absolute single-turn encoder has a robust metal housing and a completely sealed internal structure.
The encoder provides a high level of protection as well as a high level of EMC protection.
It is widely used in the measurement and positioning control of the shaft angle position of electric motors and various automated equipment.

Dimension (Unit:mm)

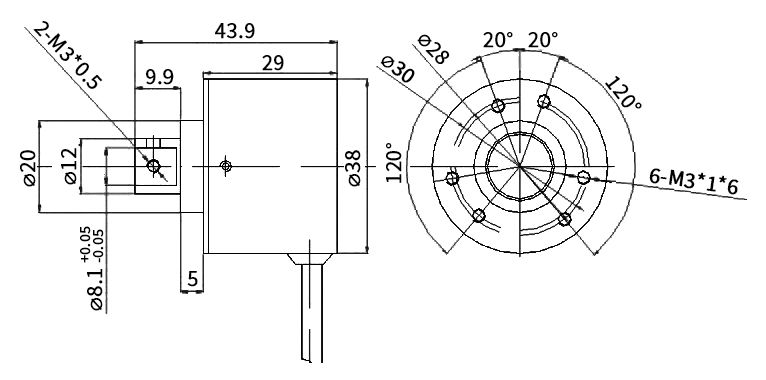

Absolute single turn encoder size

Signal Output

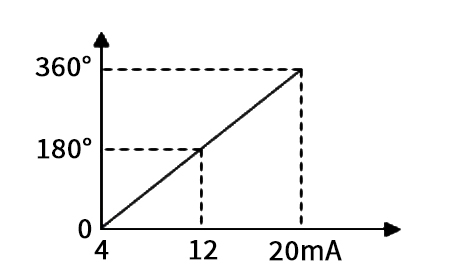

Absolute single turn encoder signal output diagram

Specs

Working Voltage	8~30VDC
Working Current	<30mA
Working Temperature	-10~80℃
Storage Temperature	-50~130℃
Load Current	Maximum 100mA
Resolution	12 bit (0.088°)
Output Signal	4-20mA analog voltage output
Measurement Range	0~360°
Output High Level	Close to the power supply voltage
Output Low Level	<0.2V
Vibration Resistance	<600 m/s²
Shock Resistance	<4000 m/s²
Starting Torque	<6*10^-3 Nm
Maximum Shaft Load	<3*10^-6 kgm²
Axial Runout	<±1.5mm
Mechanical Speed	<16000rpm
Standard Cable Length	1 m
Weight	<150g
Protection Rating	IP56
Wiring	Red - VCC, Black - GND, Yellow - OUT, Green - Zero

Application

CNC Machine Tool

Robot

Motor

FAQ

Q1: What is a single-turn absolute encoder?❯

A single-turn absolute encoder is a type of absolute encoder that provides a unique position value for one full shaft rotation (360°). It can accurately report the angular position within a single turn, but it does not track how many full rotations have occurred.

Q2: What is an absolute encoder used for?❯

An absolute encoder is used to measure the exact position of a rotating shaft. It is widely applied in servo motors, robotics, CNC machines, automation equipment, elevators, and positioning systems where precise and reliable position feedback is required.

Q3: What is the difference between a single-turn absolute encoder and a multi-turn absolute encoder?❯

A single-turn absolute encoder can only measure the angular position within one revolution (360°), while a multi-turn absolute encoder can not only measure the angle within a single revolution but also record the number of revolutions the shaft has made. Multi-turn encoders are suitable for applications with long strokes or where position information needs to be retained even after power failure.
