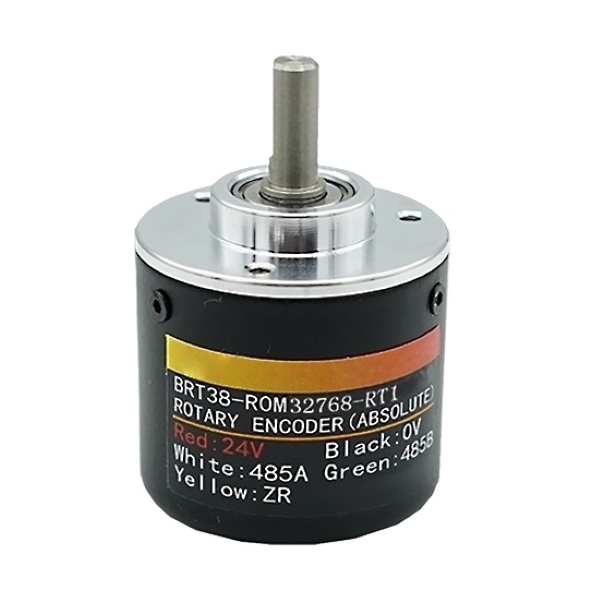

Multiturn Absolute Rotary Encoder, 10/12 Bit, RS485/ CAN

SKU: SUCH-RE-39M

$136.33

● Communication interface RS485/ CAN ● Resolution 10 bit (1024)/12 bit (4096) ● Working voltage 5V-24V ● IP54 waterproof rating

Resolution *
Size *
Communication Interface *
Number of Turns *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Cheap price multiturn absolute rotary encoder for sale. The SUCH absolute rotary encoder outputs natural binary code, shaft diameter selectable 6mm/8mm, blind hole size selectable 8mm, and communication interface RS485/CAN selectable. This high-precision multiturn absolute encoder can operate in temperatures ranging from -40 to 85℃, and is widely used in various applications requiring monitoring or control of mechanical systems.

Feature

Industrial encoders feature compact size, high precision, and no internal battery.
The encoder is an absolute multi-turn rotary encoder with power-off memory.
Wide voltage input range, EMC-tested, strong anti-interference capability, and high stability.
Simple operation with parameter settings via communication protocol or host computer software.
Supports query mode and auto-return mode, providing position and speed feedback.
Programmable parameters include baud rate, set function, counting direction, and speed feedback.

Dimension (Unit:mm)

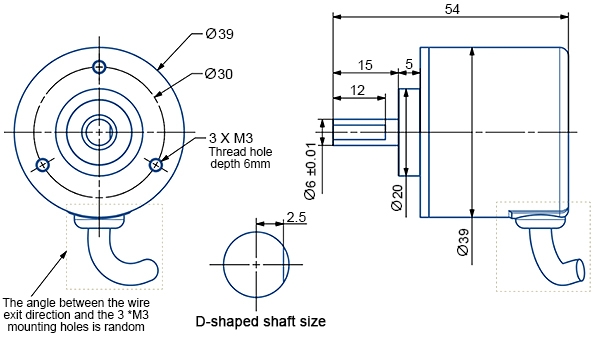

Shaft diameter 6mm:

Multiturn absolute encoder of 39mm 6mm dimension

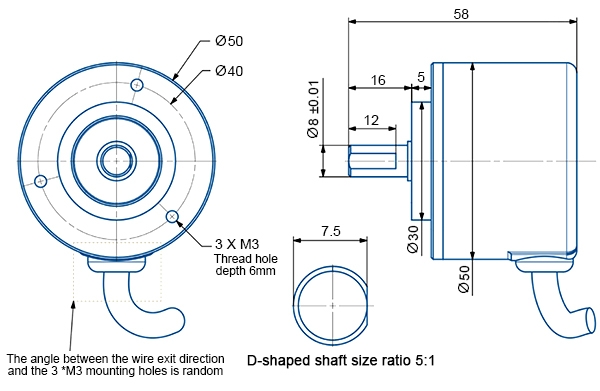

Shaft diameter 8mm:

Multiturn absolute encoder of 50mm 8mm dimension

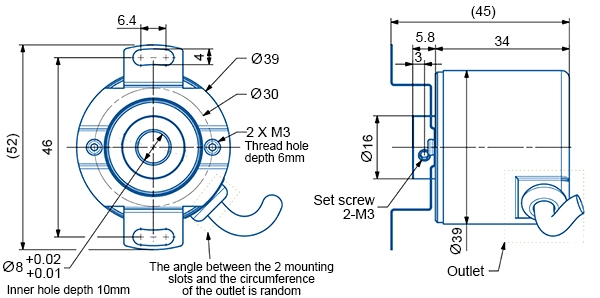

Blind hole 8mm:

Multiturn absolute encoder of 39mm 8mm dimension

Wiring

Communication	Modbus RTU	CAN	SSI
Red	Positive power supply (5V, 9-24V)
Black	Ground (GND)
Yellow	ZR		CS
Green	RS485B	CANH	CLK
White	RS485A	CANL	DO

Specs

Electrical Parameters
Communication Interface	RS485/ CAN
Protocol	Modbus RTU/ CAN 2.0
Number of Turns	24/ 50/ 99/ 1800/ 5400/ 21600 turns
Working Voltage	5V-24V
Baud Rate	9600-115200 (default 9600)
Working Current	100mA
Resolution	10 bit (1024)/12 bit (4096)
Encoded Output	Natural binary code
Outer Diameter/ Shaft Diameter	39mm/ 50mm/ 39mm
Shaft Diameter/ Blind Hole	6mm/ 8mm/ 8mm
Working Current	50mA
Linearity	0.10%
Kernel Refresh Cycle	50uS
Station Number/ Address	1-127 (default 1)
Electrical Life	>100000h
Mechanical Parameters
Maximum Mechanical Speed	1000 rpm
Shell/ Flange Material	Zinc-nickel coated steel/ Aerospace aluminum
Shaft Material	Stainless steel
Bearing Material	Bearing steel
Maximum Load of the Shaft	Axial 20N, radial 80N
Starting Torque	0.006 Nm
Environmental Parameters
Operating Temperature	-40~+85℃
Storage Temperature	-40~+85℃
Humidity	98% (No condensation)
Waterproof	Shell: IP54
Waterproof	Shaft, bearing: IP65

Application

CNC Machine Tool

Robot

Motor

FAQ

Q1: How does an absolute encoder work?❯

An absolute encoder uses a coded disk or magnetic sensing system that assigns a unique digital value to each shaft position. As the shaft rotates, the sensor reads this code and outputs the exact position instantly, even after power loss or restart.

Q2: How to install an absolute encoder?❯

To install an absolute encoder, mount it securely to the rotating shaft using a suitable coupling or hollow shaft, ensure proper alignment to avoid shaft stress, and fix the encoder housing to prevent rotation. Then connect the power supply and signal or communication cables according to the encoder interface, and perform initial configuration or zero setting if required.

Q3: What is the purpose of a rotary encoder?❯

A rotary encoder is used to measure the angular position, rotation direction, and rotational speed of a shaft. It provides precise feedback for motion control and positioning in motors, automation equipment, robotics, CNC machines, and industrial control systems.
