Magnetic Absolute Rotary Encoder, BISS-C/SSI

0 review(s) | Add your review

SKU: SUCH-RE-AMU

$447.38

● Power supply 5V ● Protection grade IP67 ● Output signal RS422 ● Magnetic stripe accuracy ±0.05°

Location Data Interface *
Magnetic Spacing *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

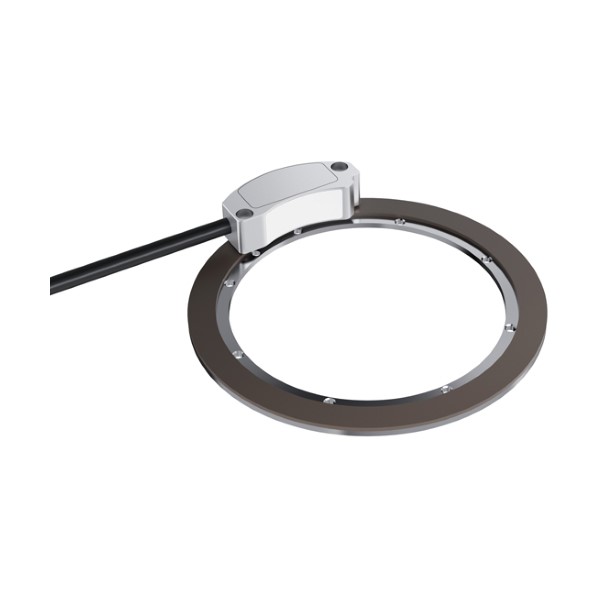

The magnetic absolute rotary encoder is a non-contact, high-performance encoder that includes an axially magnetized code disk and a read head. The SUCH magnetic absolute encoder offers a position data interface with options for BISS-C/SSI, optional magnetic spacing of 1.28/1.5/2mm, and an RS422 output signal, making it suitable for high-speed position feedback units. The non-contact absolute rotary encoder operates in temperatures ranging from -10 to 70℃, has an IP67 waterproof rating, and is widely used in various automation, robotics, machine tools, and medical equipment fields.

Feature

Compact design, supports BISS-C/SSI, and can be integrated into space-constrained applications.
The dual-track absolute magnetic encoder features a robust design and strong EMC compatibility.
The magnetic absolute rotary encoder is epoxy-encapsulated and has an IP67 waterproof rating.

Dimension (Unit:mm)

Magnetic absolute rotary encoder size

Wiring

Wire Color	Signal	DB9	DB15
Red	5V	5	7, 8
Black	0V	9	2, 9
White	SLO+	4	14
Blue	SLO-	8	6
Brown	MA+	3	13
Yellow	MA-	7	5
Green	SLI+	2	12
Purple	SLI-	6	4
Braided Wire	Shield	Shield	Shell

Specs

Power Supply	5V±5%
Current Consumption	Less than 100mA
Resolution Ratio	20 bit
Magnetic Stripe Accuracy	±0.05°
Repeatability	±0.01°
Magnetic Spacing	1.28/1.5/2mm
Location Data Interface	BISS-C/SSI
Output Signal	RS422
Mode of Connection	Direct outlet DB9 or DB15
LED Status	Red and green
Maximum Rotational Speed	24000rpm
Operating Temperature	-10~70℃
Storage Temperature	-20~80℃
Outside Diameter of Cable	4.0±0.1mm
Protection Grade	IP67

Application

CNC Machine Tool

Robot

Motor

FAQ

Q1: What is a magnetic encoder?❯

A magnetic encoder is a position sensor that measures rotational or linear movement using magnetic fields instead of optical components. It typically uses a magnetic ring or magnet and a magnetic sensor to determine position, speed, or direction.

Q2: How does a magnetic absolute encoder work?❯

A magnetic absolute encoder works by detecting the magnetic field pattern of a rotating magnet or magnetic ring. As the shaft rotates, the sensor reads changes in the magnetic field and converts them into a unique digital code representing the absolute position, which is available immediately at power-up.

Q3: Where are magnetic encoders used?❯

Magnetic encoders are widely used in motors, robotics, automotive systems, industrial automation, conveyors, elevators, and outdoor or harsh environments where dust, vibration, or moisture make optical encoders less suitable.
