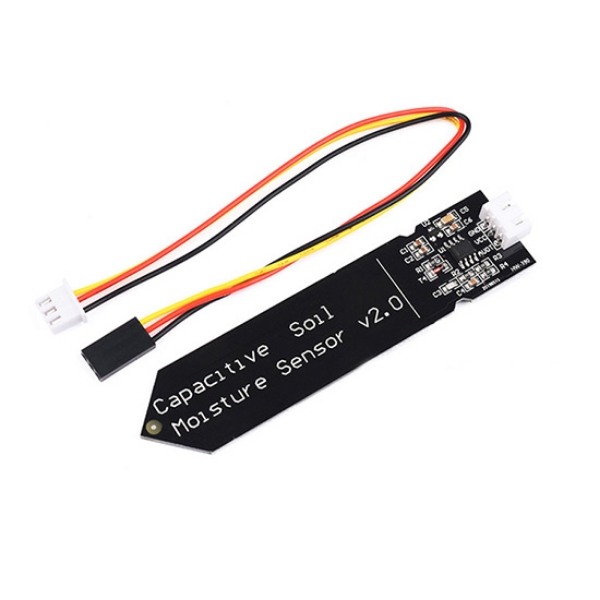

Capacitive Soil Moisture Sensor, V2.0

SKU: SUCH-SMS-CMS
$3.47
● Capacitive moisture sensor V2.0 ● Operating voltage: 3.3~5.5 VDC ● Output voltage: 0~3.0 VDC ● Interface: PH2.0-3P
This product has a minimum quantity of 30
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

Capacitive soil moisture sensor V2.0, with an output voltage range of 0 to 3.0 VDC. This moisture sensor operates within a voltage range of 3.3 to 5.5 VDC, providing reliable soil moisture measurements. Its miniaturized, compact design makes it easy to integrate into various agricultural applications, and it can efficiently monitor soil moisture even at temperatures as high as 50°C.

Feature

Capacitive soil moisture sensor feature

  • The capacitive soil moisture sensor V2.0 operates efficiently within a wide voltage range of 3.3 to 5.5 VDC, is compatible with a variety of systems, and provides stable performance under different power sources.
  • The soil moisture sensor has an output voltage range of 0 to 3.0 VDC, providing accurate soil moisture data to ensure reliable readings for irrigation management and soil condition monitoring.
  • The sensor measures just 98 mm in length and 23 mm in width, with a compact design that facilitates integration into agricultural equipment, seamlessly adapting to automated irrigation systems and research projects.
  • The highly integrated sensor design can withstand operating temperatures of up to 50°C, making it suitable for use in various climates and soil conditions.

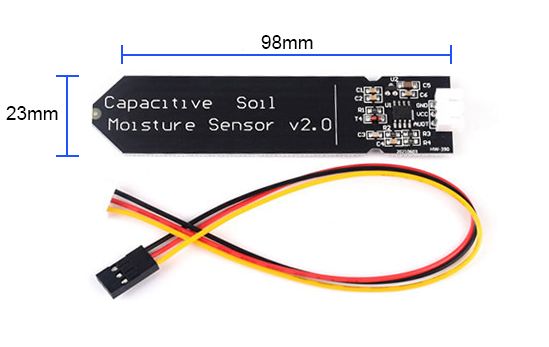

Dimension (unit: mm)

Capacitive soil moisture sensor dimension

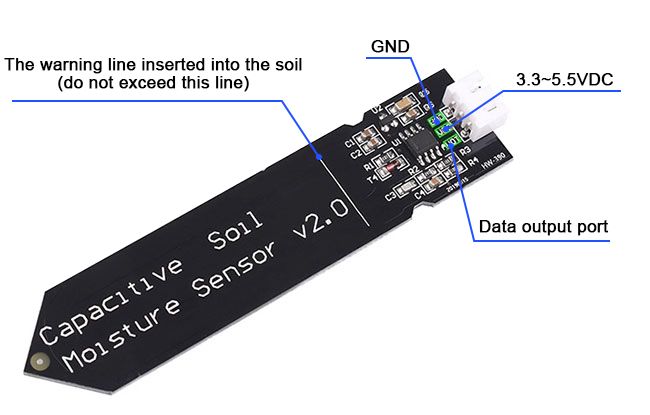

Capacitive Soil Moisture Sensor Detail

Capacitive soil moisture sensor detail

Specs
Operating Voltage 3.3~5.5 VDC
Output Voltage 0~3.0 VDC
Interface PH2.0-3P
Dimensions 98 (L) * 23 (W) mm
Working Temperature 50°C
Application
Capacitive soil moisture sensor for make small experiments

Conduct Small-Scale Experiments

Capacitive soil moisture sensor for product developmen

Product Development

Capacitive soil moisture sensor for production requirements

Production Requirements

FAQ

The capacitive soil moisture sensor V2.0 operates by measuring the dielectric constant of the soil, which changes with soil moisture content. It uses capacitive sensing technology to detect soil moisture without direct contact with the soil.

The soil moisture sensor offers high precision, enabling accurate measurement of soil moisture levels. Its detection range spans 0% to 100% soil moisture and provides reliable data for various soil types.

Yes, the capacitive soil moisture sensor V2.0 is specifically designed for outdoor use. The moisture sensor is made of corrosion-resistant materials and can withstand various weather conditions, providing durable performance in outdoor environments.
