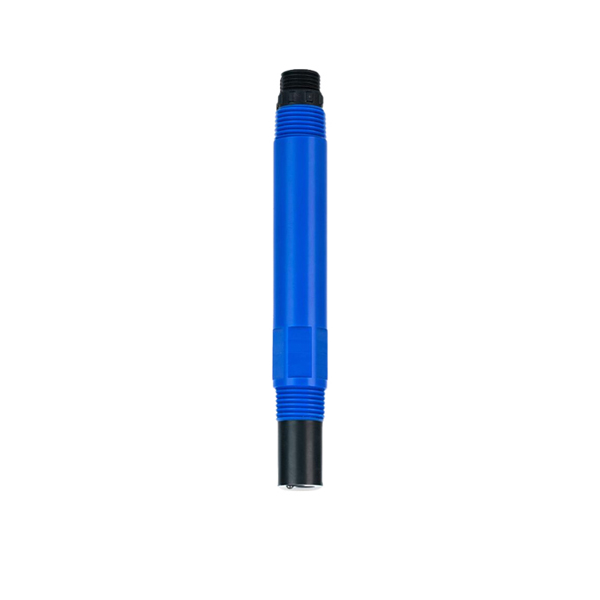

Contacting Conductivity Sensor for Water, 0~5000μS/cm

Contacting conductivity sensor provides accurate and stable measurement for water quality monitoring. It has a contact-type graphite electrode that resists polarization, a waterproof connector for reliable signal transmission, and a precision-polished thread for safe installation. Built with durable ABS and POM housing, SUCH electrical conductivity sensor is corrosion-resistant, easy to clean, and supports RS485 Modbus/RTU communication for seamless system integration. With a measuring range of 0~5000μS/cm, TDS 0–3000mg/L, and a 12–24V DC power supply, EC sensor is suitable for surface water, pipeline networks, water supply, wastewater, agriculture, industrial automation, and marine monitoring applications.

Feature

• Compact Size and Low Power: The water sensor has a small footprint and low power consumption for efficient operation.

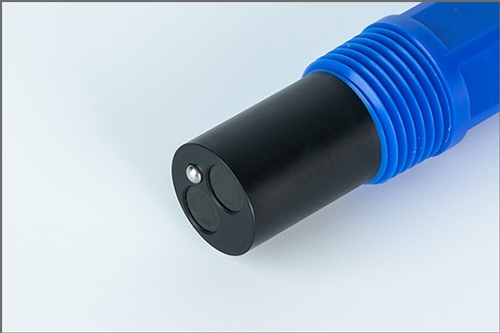

• Stable Graphite Electrode: Uses a contact-type graphite electrode with a large surface area that resists polarization.

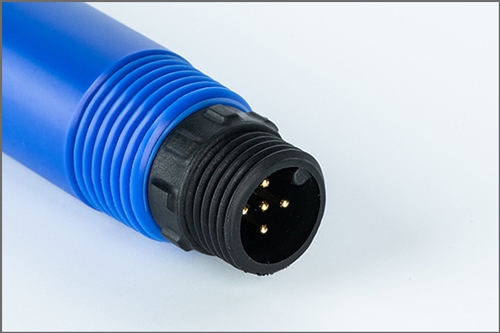

• Waterproof Connector: Equipped with a sealed waterproof connector to ensure uninterrupted signal transmission.
• Safe Thread Design: Precision-polished thread provides safer and more reliable installation.
• Durable POM Housing: Made of POM material, resistant to corrosion, fouling, and easy to clean.
• High Sensitivity: Offers precise measurement with stable performance in water monitoring.
• RS485 Modbus Communication: Supports RS-485 interface with Modbus/RTU protocol for easy system integration.
• Wide Application: Suitable for surface water monitoring, underground pipeline monitoring, water supply and wastewater management, modern agriculture, industrial automation, and marine environment monitoring.

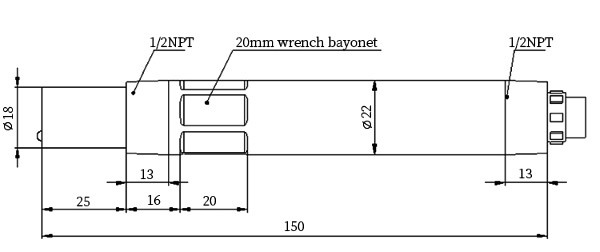

Dimension (Unit: mm)

Wiring

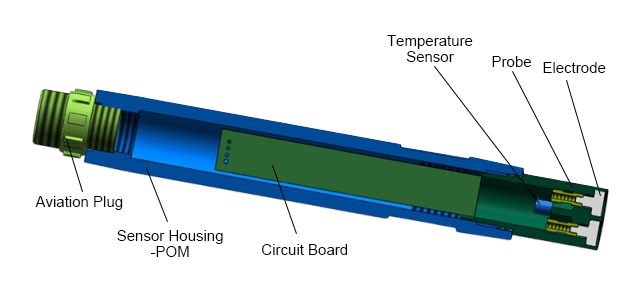

Detail
