    Find a Sensor A - Z
    Picture of Sanitary Conductivity Sensor, PFA, 1~2000mS/cm Picture of Sanitary Conductivity Sensor, PFA, 1~2000mS/cm Picture of Sanitary Conductivity Sensor, PFA, 1~2000mS/cm

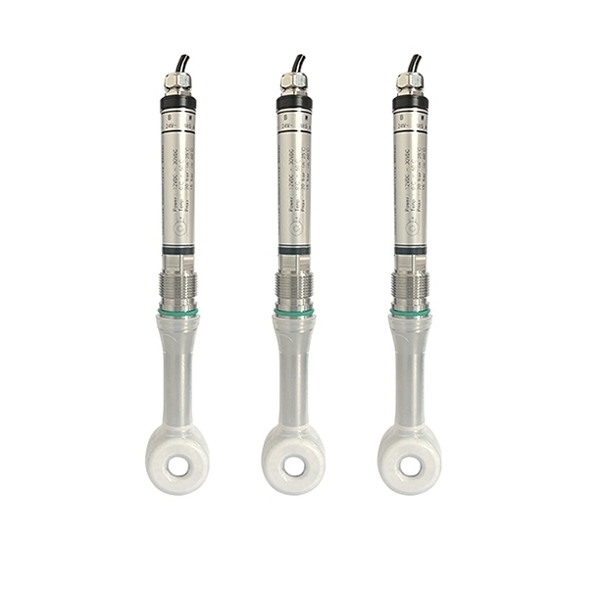

    Sanitary Conductivity Sensor, PFA, 1~2000mS/cm

    0 review(s) | Add your review
    SKU: SUCH-EC-SAN
    $2,959.69
    ● Measuring range 1ms/cm ~ 2000ms/cm ● Flange/Sleeve/Thread/Clamp Installation ● Housing material PFA ● Power supply 12 VDC ~30VDC
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Sanitary conductivity sensor provides accurate and stable measurement of conductivity in sanitary and industrial applications. With a measuring range of 12000mS/cm, it has a durable PFA housing and supports multiple installation options including flange, sleeve, thread, and clamp connections. Operating on a 1230VDC power supply, this EC sensor offers strong anti-interference performance, resistance to fouling, and reliable operation in both high-demand environments and low-concentration solutions.

    Feature

    Conductivity probe feature

    • Anti-interference: The sanitary conductivity sensor resists signal interference, ensuring reliable conductivity measurement.
    • High Precision: Provides accurate readings across the range of 1~2000mS/cm.
    • Good Stability: Maintains consistent performance in continuous monitoring applications.
    • Customizable: SUCH EC sensor supports customization options such as installation and cable specifications.
    • Withstand Voltage: Designed to handle pressure and voltage conditions in demanding environments.
    • Anti-pollution: Resistant to fouling, suitable for sanitary and industrial applications.
    • Optimized for Low Concentration: Delivers superior performance in measuring low-concentration solutions.

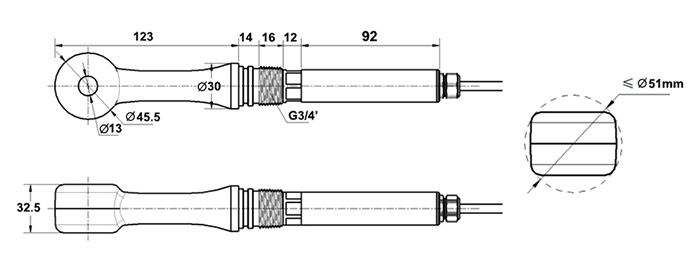

    Dimension (Unit: mm)

    Sanitary conductivity sensor size



    Quick Connect Flange Pipe Installation

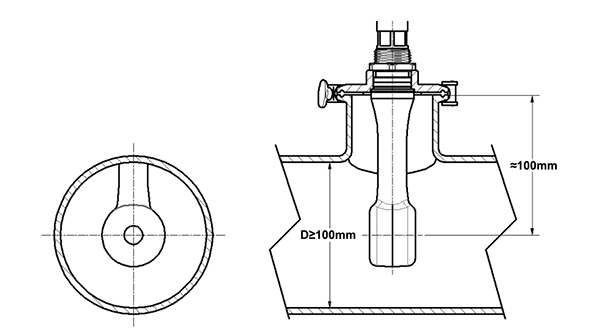

    Sanitary conductivity sensor quick connect

    Flange Pipe and Sleeve Installation

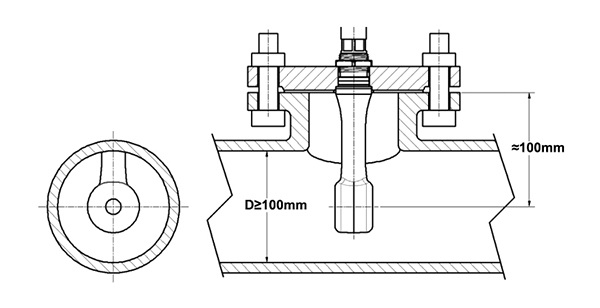

    Sanitary conductivity sensor flange pipe installation

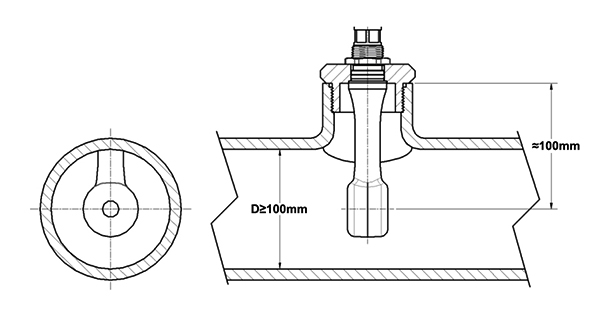

    Sanitary conductivity sensor sleeve installation
    Specs
    Housing Material PFA
    Process Temperature -20℃ ~ 80℃
    Process Pressure Max 16bar (1.6MPa)
    Protection Grade IP68
    Connector Type Connector: G3/4'' threaded connection
    Cable: Integral cable connection
    Temperature Sensor Built-in Pt1000
    Measuring Range Conductivity: 1ms/cm ~ 2000ms/cm
    Temperature: -20℃ ~ 80℃
    Accuracy Conductivity: ±2% reading or ±1 ms/cm whichever is greater
    Temperature: ±0.5℃
    Resolution Conductivity: 0.01mS/cm
    Temperature: 0.01℃
    Repeatability Conductivity: 1%
    Temperature: 0.3℃
    Process Connection Flange: DN75 flange
    Sleeve: Sanitary grade casing welding type
    Thread: 2-inch thread
    Clamp: 2.5-inch chuck
    Power Supply 12 VDC ~30VDC
    Ambient Temperature -20℃ ~ 50℃
    Communication Protocol Modbus RTU
    Cable Length Standard 5 meters
    Application
    Paper mill

    Paper Mill

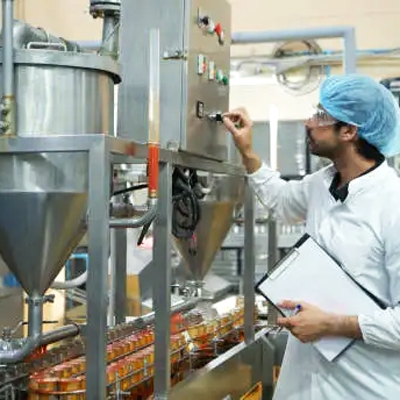

    Food processing plant

    Food Processing Plant

    Environment protection

    Environment Protection

    FAQ
    ❯

    Yes, the PFA housing supports CIP (Clean-In-Place) and SIP (Sterilization-In-Place) methods commonly used in sanitary processes.

    ❯

    It is suitable for most aqueous solutions, including food-grade liquids, process water, wastewater, and chemical solutions, except highly corrosive acids like hydrofluoric acid.

    ❯

    Yes, the PFA housing is safe for sanitary applications and meets hygienic requirements in food and beverage industries.
