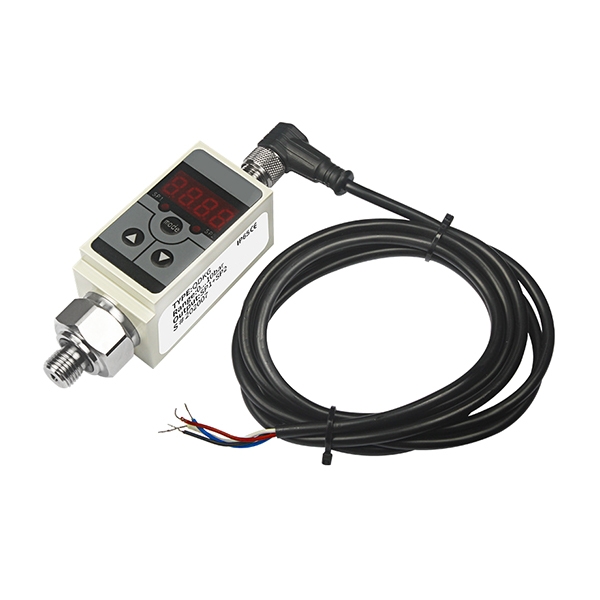

    Picture of Electronic Digital Pressure Switch, 0-600 Bar, NPN/PNP/4-20mA Picture of Electronic Digital Pressure Switch, 0-600 Bar, NPN/PNP/4-20mA Picture of Electronic Digital Pressure Switch, 0-600 Bar, NPN/PNP/4-20mA Picture of Electronic Digital Pressure Switch, 0-600 Bar, NPN/PNP/4-20mA

    Electronic Digital Pressure Switch, 0-600 Bar, NPN/PNP/4-20mA

    0 review(s) | Add your review
    SKU: ATO-PS-QDKG
    $179.41
    ● Pressure range 0–600 bar ● Display type 4-digit LED ● Output type NPN/PNP/4–20 mA ● Protection rating IP65
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The SUCH electronic digital pressure switch measures pressure, displays readings digitally, and provides switching control for industrial systems. It supports a pressure range of 0–600 bar, a four-digit LED display, and NPN, PNP, or 4–20 mA output options for integration with compatible control equipment. With digital readout and electrical output options, it supports pressure monitoring and control in hydraulic equipment and other compatible industrial systems.

    Note: This electronic pressure switch measures system pressure and provides configurable switching or analog outputs for industrial automation.

    Feature

    • Pressure Range: Cover pressure requirements from 0 to 600 bar for a range of industrial monitoring tasks.
    • Four-Digit LED Display: Read pressure values directly on the device during on-site inspection and operation.
    • Output Options: Select NPN, PNP, or 4–20 mA output to match compatible PLCs and control systems.
    • Digital Pressure Monitoring: View measured pressure locally while transmitting the corresponding output signal to compatible equipment.
    • Measurement Accuracy: Use the specified accuracy rating to assess suitability for the required pressure measurement tolerance.
    • IP65 Protection: Use the rated enclosure in installations requiring protection against dust and water jets.
    • Five-Pin Aviation Connector: Connect the switch to compatible electrical wiring through its five-pin connector.

    Dimension

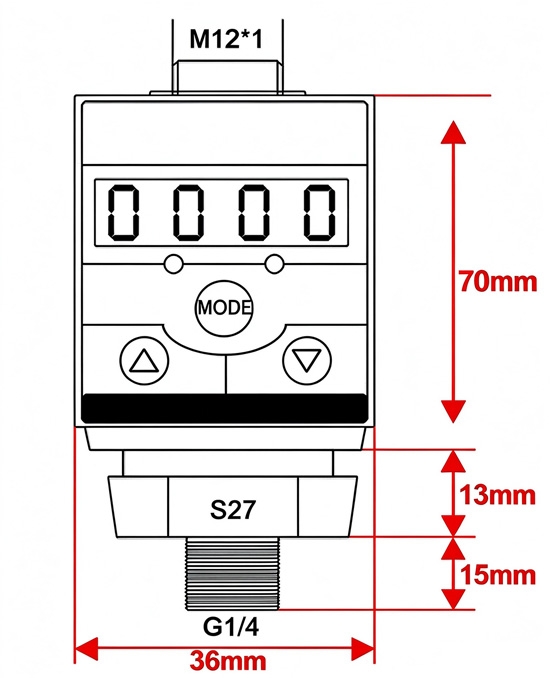

    Electronic pressure switch dimensions

    Details

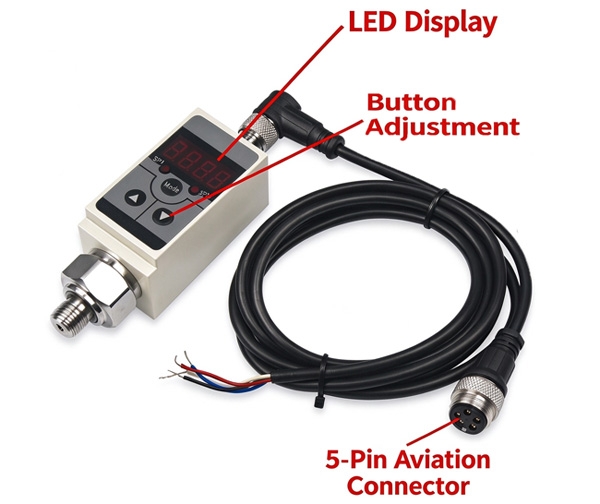

    Electronic pressure switch details

    Wiring

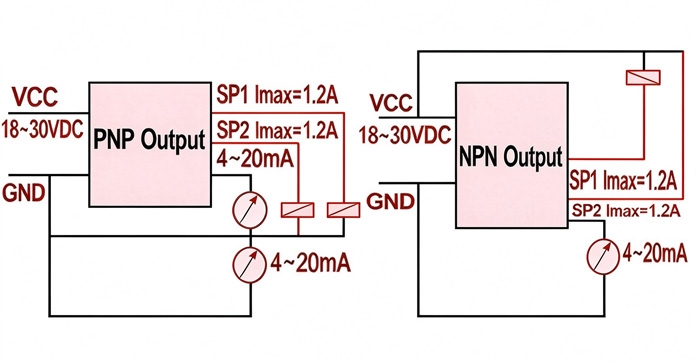

    Electronic pressure switch wiring diagram

    Specs
    Control Range 0–600 bar
    Output Signal PNP / NPN / 4–20 mA
    Display Type 4-digit LED display
    Control Accuracy ≤ ±0.5% FS
    Display Accuracy ±0.1% FS
    Display Range −1999 to 9999
    Power Supply 24 VDC ±20%
    Load Capacity <24 V, 1.2 A
    Stability ≤0.2% FS/year
    Switch Life >1,000,000 cycles
    Protection Rating IP65
    Operating Temperature −30°C to 70°C
    Medium Temperature −40°C to 85°C
    Relative Humidity 0–80%
    Maximum Power <3 W
    Connection Type 5-pin aviation connector
    Weight Approx. 250 g

    PDF computingElectronic Pressure Switch User Manual

    Application

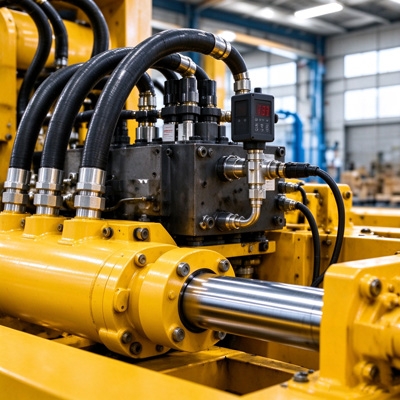

    Electronic pressure switch for hydraulic systems

    Hydraulic Systems

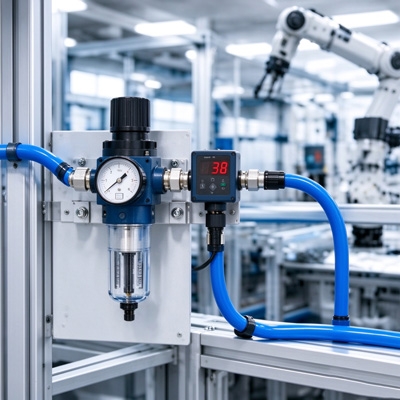

    Electronic pressure switch for pneumatic systems

    Pneumatic Systems

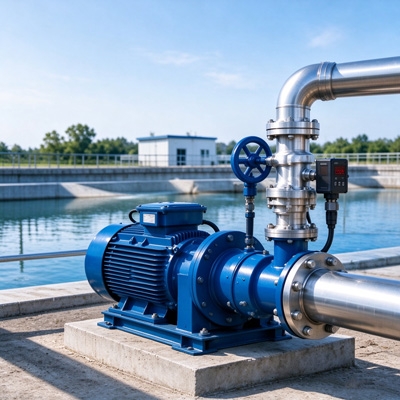

    Electronic pressure switch for water supply

    Water Supply

    FAQ
    ❯

    The switching point is the pressure threshold at which the switch changes its output state. Use the device’s adjustment controls to configure the required threshold and reset behavior according to the operating requirements and product instructions.

    ❯

    Check whether the PLC input is designed for PNP or NPN signals before wiring. Match the switch output type to the input circuit, and verify the supply voltage, terminal assignments, and wiring diagram before powering on the system.

    ❯

    Select a range that covers the normal operating pressure and foreseeable pressure peaks without exceeding the switch’s rated pressure. Also verify pressure connection compatibility, hydraulic fluid compatibility, and the required switching accuracy.
