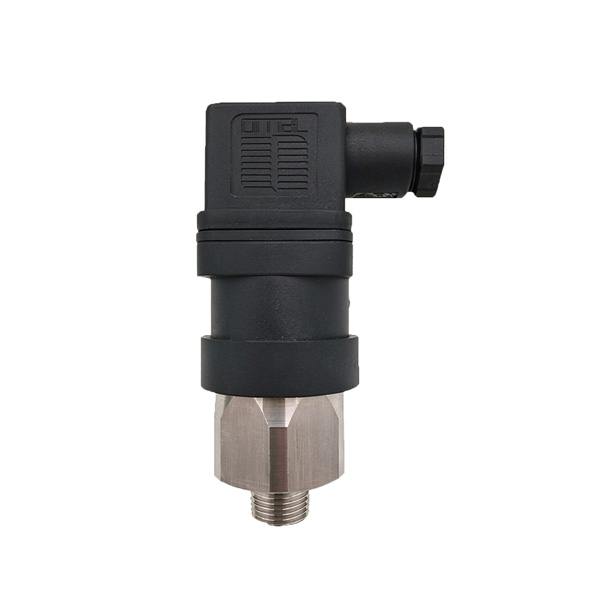

High Hydraulic Pressure Switch, 0.2-400 Bar, 1NO+1NC

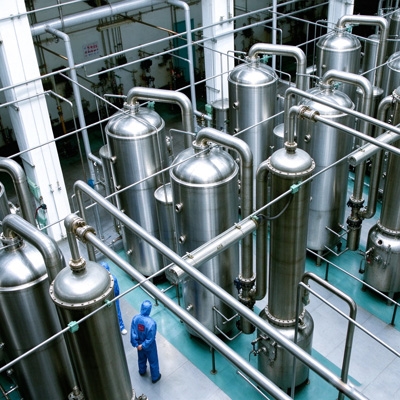

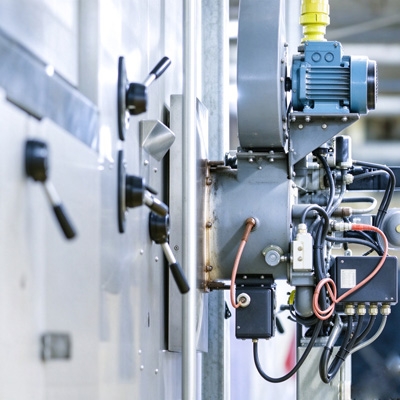

The SUCH high hydraulic pressure switch is a mechanical pressure control device that monitors hydraulic pressure and switches the circuit when the preset pressure is reached. It supports pressure ranges from 0.2–1 bar to 200–400 bar, with a 1NO+1NC contact form and 250VAC/24VDC electrical rating. Available in zinc-plated steel or stainless steel with IP65 protection, it uses 1/8 NPT, 1/4 NPT, G1/8, or G1/4 thread options for different hydraulic connections. The switch is suitable for hydraulic systems, engineering equipment, gas pumping stations, and automatic machinery.

Note: This hydraulic pressure switch provides pressure-triggered switching through 1NO+1NC contacts in high-pressure hydraulic systems.

Feature

• Select pressure ranges from 0.2–1 bar to 200–400 bar for different hydraulic pressure control requirements
• Use 1NO+1NC contacts to provide normally open and normally closed switching functions
• Choose 1/8 NPT, 1/4 NPT, G1/8, or G1/4 threads for different hydraulic connection requirements
• Use zinc-plated steel or stainless steel construction for different installation environments
• Handle 250VAC or 24VDC at up to 4A for compatible electrical control circuits
• Maintain IP65 protection for installations exposed to dust and water
• Operate at up to 150 bar maximum working pressure for hydraulic pressure control applications
• Withstand up to 600 bar burst pressure for high-pressure hydraulic systems

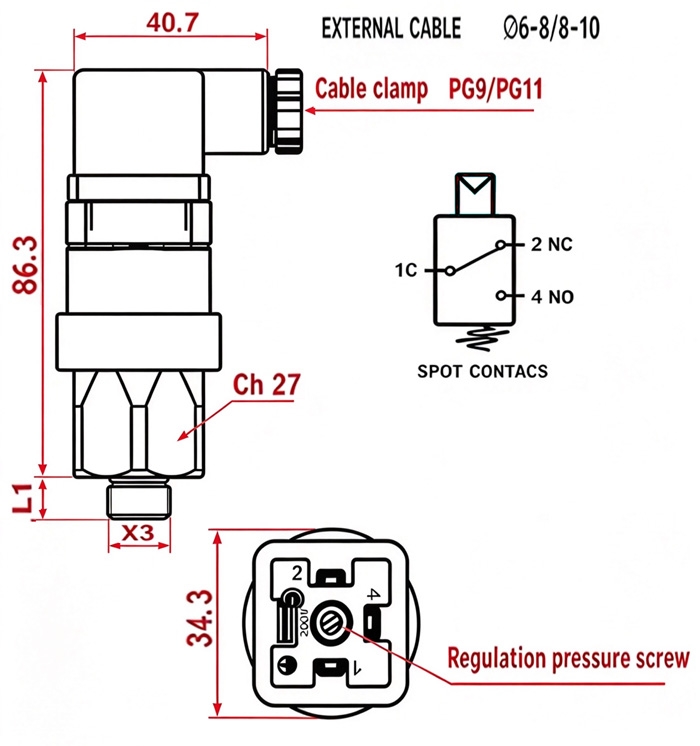

Dimension (Unit:mm)
