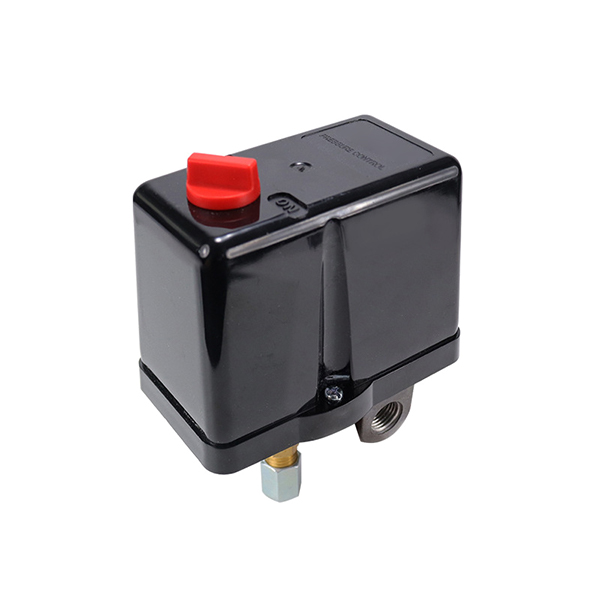

Well Tank Pressure Switch for Water Pumps, 1.0-16.0 Bar

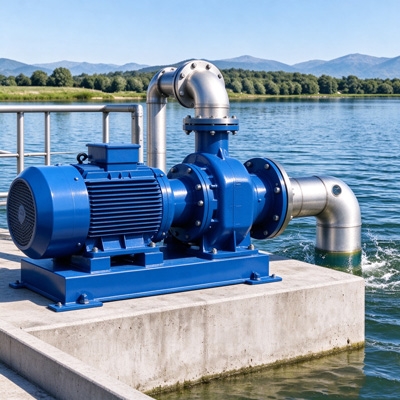

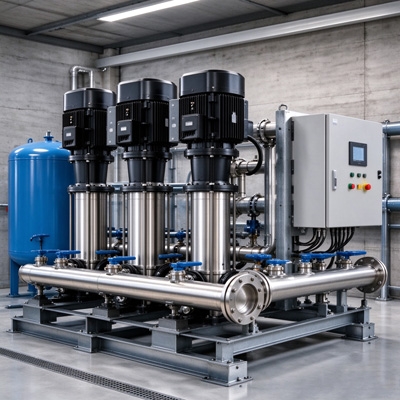

The SUCH well tank pressure switch is a mechanical pressure controller that uses a diaphragm mechanism to automatically control pump operation according to system pressure. It provides an adjustable pressure range of 1.0–16.0 bar and uses an IP54-rated cast aluminum enclosure for protection against dust and water splashes. The switch is suitable for water pump, booster pump, and hydropneumatic tank systems where automatic pressure-based pump control is required.

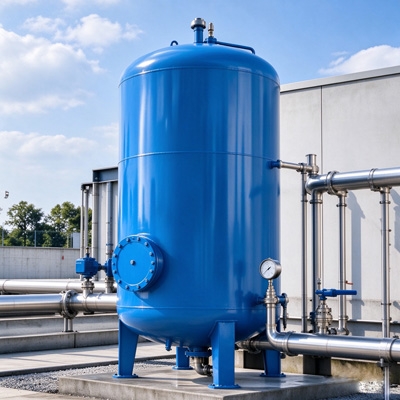

Note: This pressure switch automatically controls pump start and stop cycles in well water and pressure tank systems.

Feature

• Set the operating pressure from 1.0–16.0 bar to control pump start and stop points for different system requirements.
• Adjust the differential pressure from 1.0–4.5 bar to define the pressure interval between pump switching points.
• Protect internal components with an IP54-rated cast aluminum housing for use in typical pump system environments.
• Connect pressure gauges and relief valves through the four-way base to simplify system component installation.
• Switch compatible pump loads at 400VAC-3 with a rated current of 16A/25A for motor control applications.
• Support up to 100,000 electrical cycles with silver contacts for repeated pump switching.
• Connect to fluid lines through 1/4" or 1/2" NPT/G internal threads for compatibility with standard piping connections.

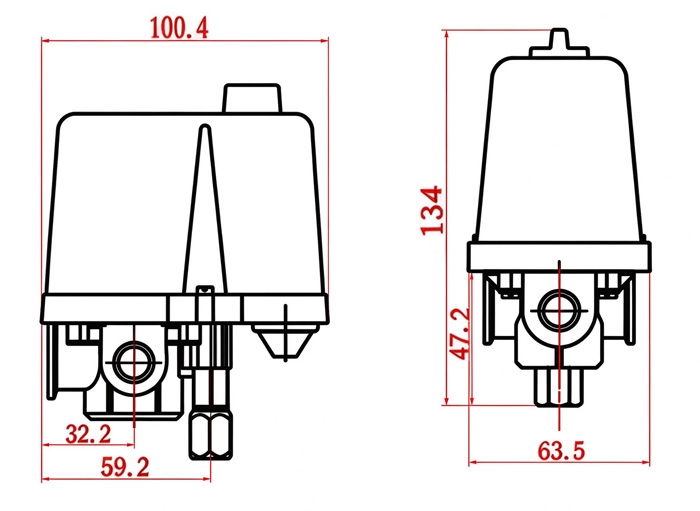

Dimension (Unit:mm)

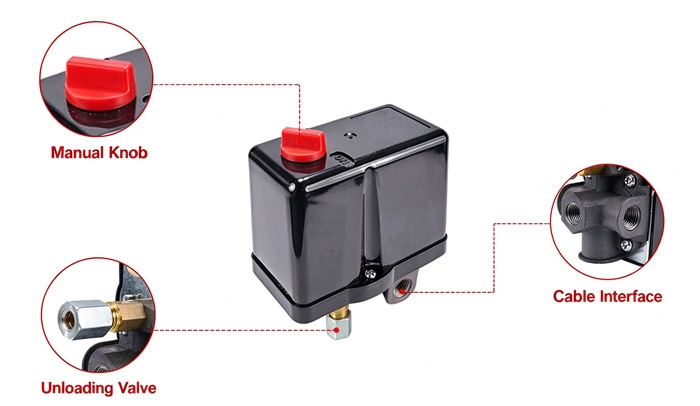

Details
