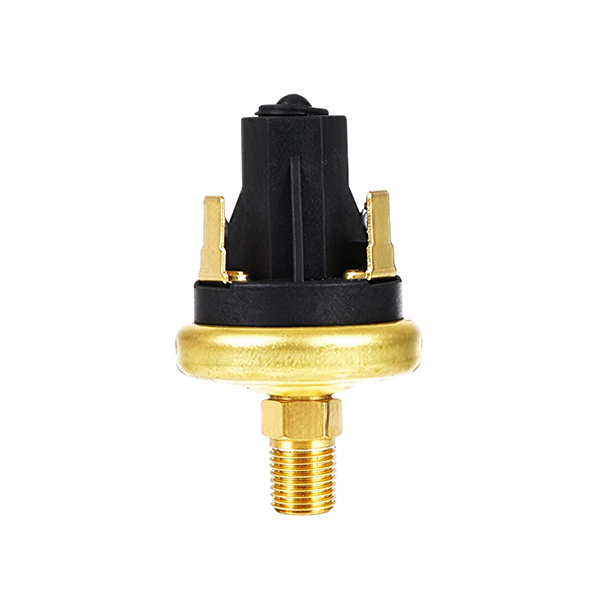

Universal Mechanical Pressure Switch, 0.5-150 PSI, NO/NC/NO+NC

The SUCH universal mechanical pressure switch is a mechanical pressure control device that automatically opens or closes an electrical circuit when system pressure reaches the set point. It covers a pressure range of 0.5–150 PSI and is available with NO, NC, or NO+NC contacts, along with multiple thread options for different installation requirements. With an operating temperature range of -40°C to 120°C, the switch is suitable for pressure control in air, water, motor oil, transmission oil, jet fuel, and other compatible media.

Note: This mechanical pressure switch monitors pressure in compatible air, water, and oil systems.

Feature

• Cover a 0.5–150 PSI pressure range to meet different pressure control requirements
• Offer NO, NC, or NO+NC contacts for different electrical control circuits
• Provide 1/8 NPT, 1/4 NPT, G1/8, and G1/4 threads for different pressure connection requirements
• Operate from -40°C to 120°C for use across a wide range of operating temperatures
• Use brass or plated steel construction for different installation requirements

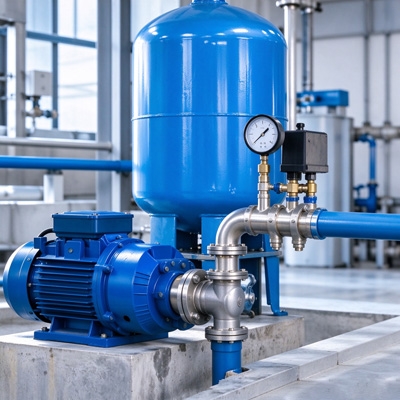

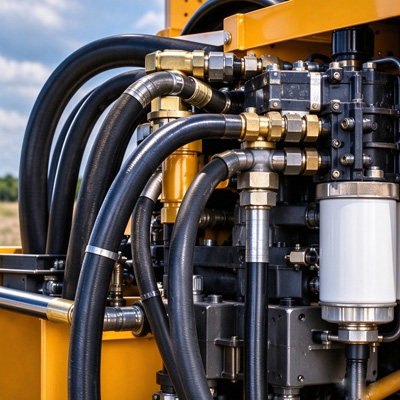

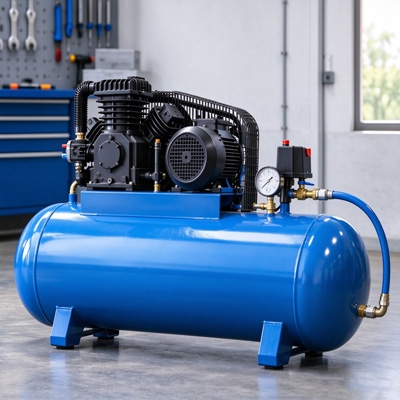

• Handle air, water, motor oil, transmission oil, and jet fuel in compatible pressure control applications
• Switch 15A at 6VDC for resistive loads in suitable electrical control circuits
• Use mechanical blade contacts for direct circuit switching at the preset pressure

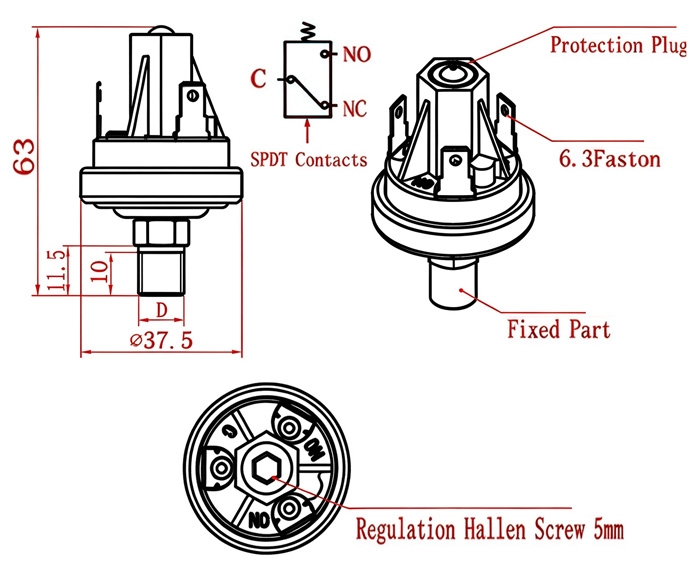

Dimension (Unit:mm)
