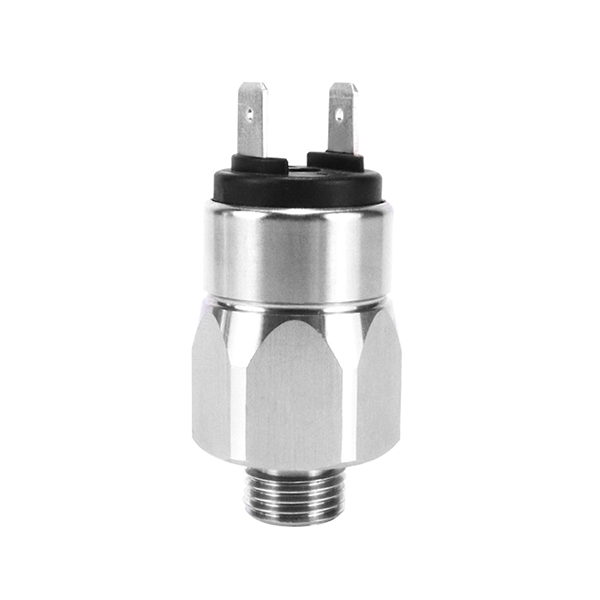

Industrial Mechanical Pressure Switch, 30–200 Bar, NO/NC

The SUCH mechanical pressure switch activates or deactivates an electrical circuit when the monitored pressure reaches a preset switching point. It offers selectable pressure ranges of 30–100 bar, 50–150 bar, and 100–200 bar, with normally open (NO) or normally closed (NC) contacts. Available with a galvanized steel or stainless steel body, it has a maximum operating pressure of 450 bar and a maximum safety pressure of 600 bar. It is suitable for pressure monitoring, equipment control, and alarm systems in industrial and automotive applications.

Note: This mechanical pressure switch activates or deactivates electrical contacts when system pressure reaches a preset threshold.

Feature

• Select a pressure range of 30–100 bar, 50–150 bar, or 100–200 bar to match the required switching pressure.
• Operate at pressures up to 450 bar, with a maximum safety pressure of 600 bar, subject to the product's specified operating conditions.
• Choose normally open (NO) or normally closed (NC) contacts to suit the control circuit.
• Select a galvanized steel or stainless steel body to meet application requirements.
• Operate at temperatures from −40°C to +100°C, depending on the diaphragm material.
• Add a top-exit or side-exit protective boot for IP54 or IP55 protection, respectively, when using terminals 1–2.

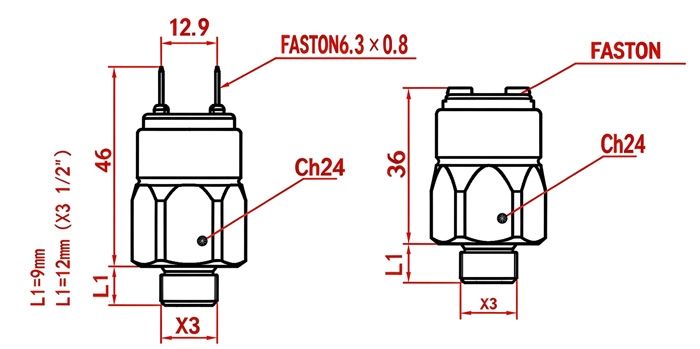

Dimension (Unit:mm)

Tip: For complete dimensional drawings of all configurations, please refer to the PDF datasheet.
