Digital Pressure Control Switch, 10kPa-100MPa, 4-20mA Output

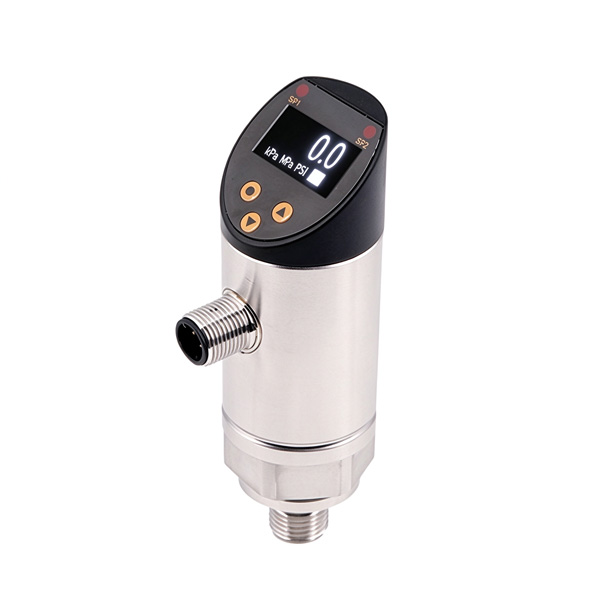

The SUCH digital pressure control switch combines pressure measurement, digital display, and electronic switching for industrial pressure monitoring and control. It covers measuring ranges from 10 kPa to 100 MPa and uses a silicon piezoresistive sensor to measure fluid pressure. The device provides a 4–20 mA analog output and two switch outputs for monitoring and control applications. A 4-digit OLED display shows pressure readings in real time, while available NPN/PNP switching configurations support integration with compatible control systems. Typical applications include hydraulic equipment, fluid pressure monitoring, and industrial automation.

Note: This digital pressure control switch monitors system pressure, triggers switching outputs, and transmits pressure readings through a 4–20 mA signal.

Feature

• Wide Measuring Range: Covers 10 kPa to 100 MPa for different industrial pressure measurement requirements.
• Silicon Piezoresistive Sensor: Uses silicon piezoresistive sensing technology to measure fluid pressure.
• Measurement Accuracy: Offers Class 0.2 or Class 0.5 accuracy, depending on the selected specification.
• Analog and Switch Outputs: Combines a 4–20 mA analog output with two switch outputs for pressure monitoring and control.
• NPN/PNP Switching: Supports compatible NPN or PNP control circuit configurations, subject to the selected model.
• Response Time: Provides a response time of 20 ms or less, according to the product specification.
• 4-Digit OLED Display: Displays pressure readings directly on the device for local monitoring.
• IP65 Protection: Features an IP65-rated enclosure for suitable industrial installation environments.

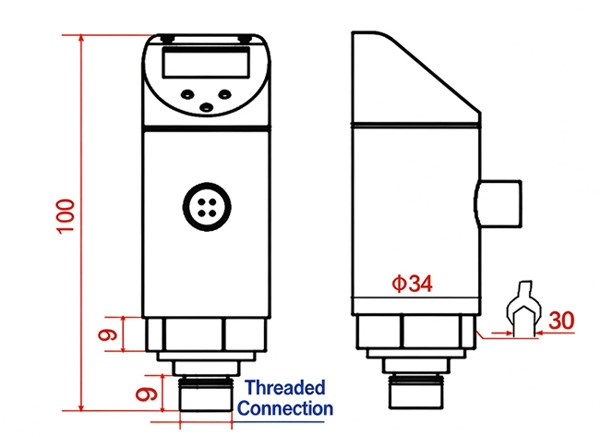

Dimension (Unit:mm)

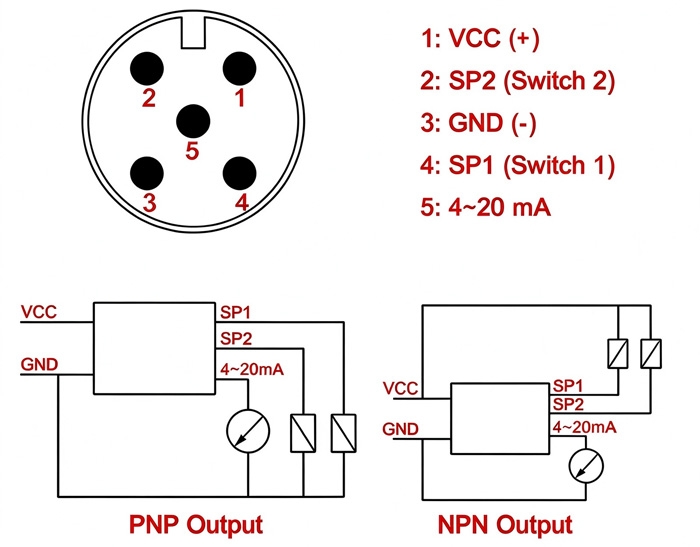

Wiring

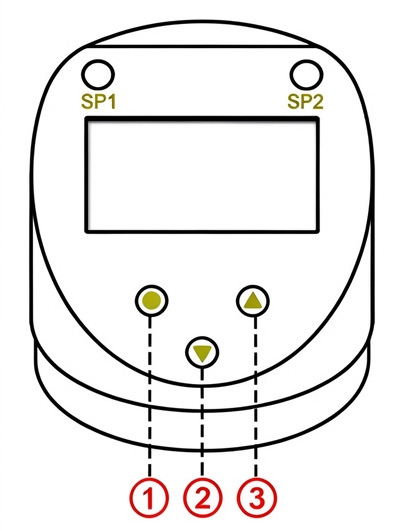

Operation Instructions

Normal Pressure Display

• [●] Short press: Open the menu
• [▼] Long press: Zero-point calibration
• [▲] Short press: Switch units

Menu Operation

• [●] Short press: Confirm selection
• [●] Long press: Exit the menu
• [▲] / [▼] Long press: Edit values

Additional Functions

In the normal pressure display, use [▲] and [▼] for quick unit switching and zero-point calibration
