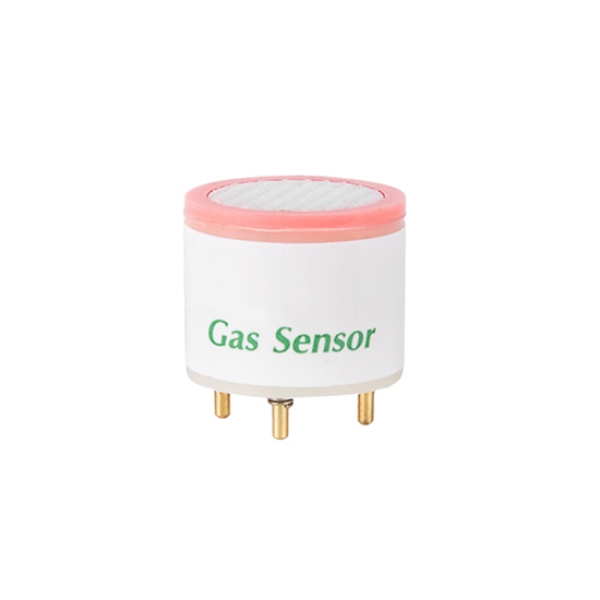

Hydrogen (H2) Gas Sensor with Module, 0-1000~5000ppm

Buy high-quality hydrogen gas sensors to ensure workplace safety, supporting precise detection at 0–1000ppm, 0–2000ppm, or 0–5000ppm. Based on electrochemical three-electrode technology, it offers 1ppm resolution with rapid response. The module offers optional RS485 or TTL output interfaces, enabling users to easily achieve system integration. Operating temperature range: -30°C to 50°C. Monthly signal drift is less than 2%. Ideal for hydrogen monitoring, laboratory safety, and gas leak detection.

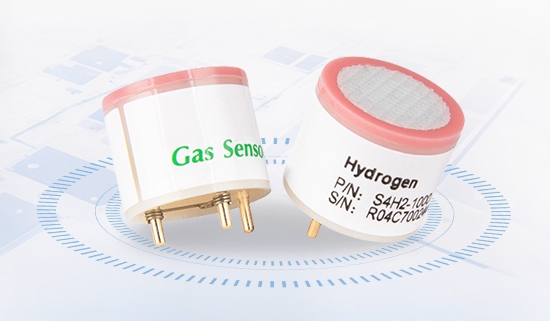

Feature

• The H₂ gas sensor enables rapid and precise detection within the 0–1000/0–2000/0–5000 ppm range.
• With a T₉₀ response time under 60 seconds/120 seconds, it instantly captures hydrogen concentration changes, providing real-time alerts and safety monitoring data.
• The hydrogen sensor exhibits exceptional long-term stability (<2% signal drift per month) and repeatability (±2%), ensuring consistent results over extended operation.
• Optional RS485 and TTL interface modules enable seamless system integration, facilitating straightforward connection to user systems.

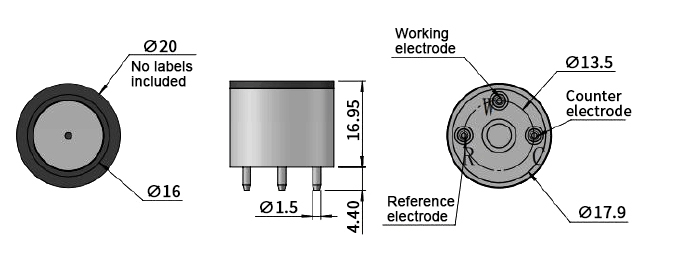

Dimension (unit: mm)

Cross Interference

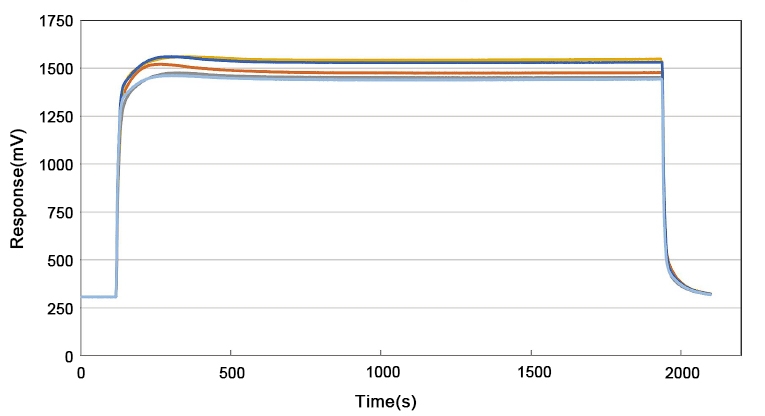

Response Recovery Curve

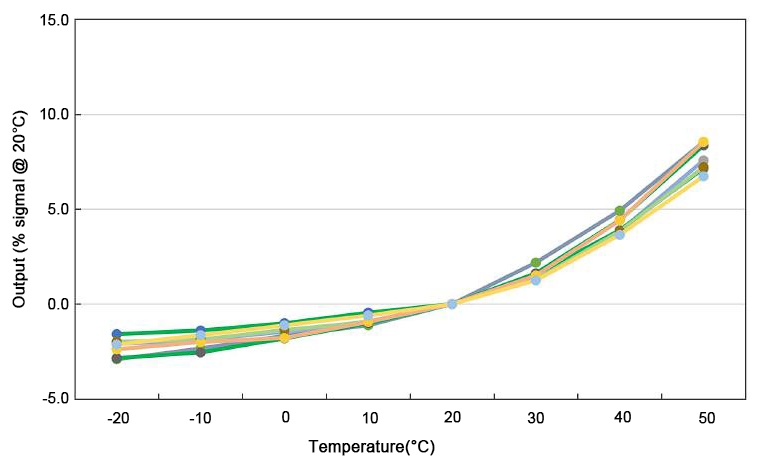

Temperature Dependency Curve
