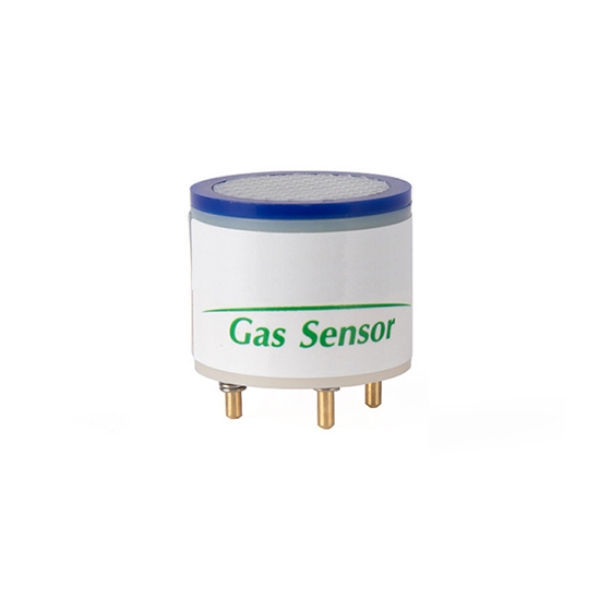

Chlorine Dioxide (ClO2) Gas Sensor, 0-50ppm, RS485/TTL

0 review(s) | Add your review

SKU: SUCH-GAS-CLO2

$148.53

● Detect: Chlorine Dioxide (ClO2) ● Rang: 0-50ppm ● Module output: TTL/RS485 ● Resolution: 1ppm

Module *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

This professional chlorine dioxide gas sensor employs internationally recognized electrochemical detection technology. With a wide detection range of 0-50ppm, a resolution as high as 1ppm, and a response time under 60 seconds, it rapidly captures changes in gas concentration. Supporting RS485 and TTL communication, it is widely used in environmental monitoring, disinfection facilities, and industrial production safety detection.

Feature

High-Sensitivity Electrochemical Detection: Utilizing a three-electrode electrochemical principle, it accurately identifies ClO₂ concentrations to safeguard air quality in real time.
Rapid Response for Enhanced Reliability: Response time under 60 seconds swiftly detects gas changes, ensuring immediate and effective monitoring.
Wide Temperature and Humidity Adaptability: Supports gas sensor diverse environments from -30°C to 50°C and 15% to 90% RH, effortlessly handling complex conditions.
Stable, Durable, and Long-Lasting: 2-year operational lifespan with signal drift below 2% per month, delivering enduring performance.

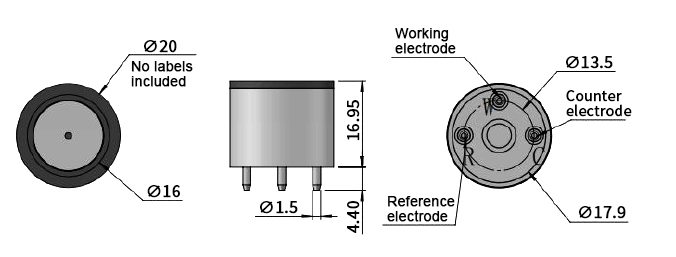

Dimension (unit: mm)

CLO2 gas sensor dimension

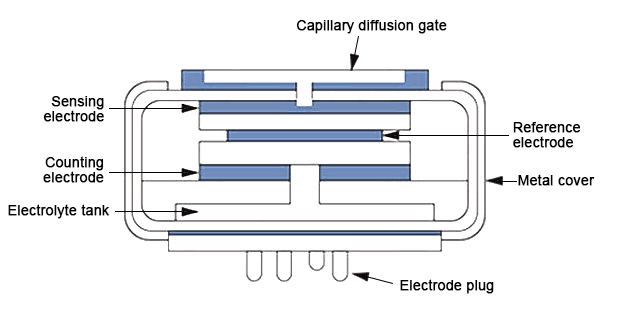

Electrochemical Principle

Electrochemical principle of clo2 gas sensor

Cross Interference

Interference Gas	Gas Concentration Used (ppm)	Displayed Value (ppm ClO₂)
CO	75	210
H₂S	20	0
SO₂	20	0
NO₂	20	0
Cl₂	20	2
NH₃	20	1
NO	30	9
CH₄	5000	-2

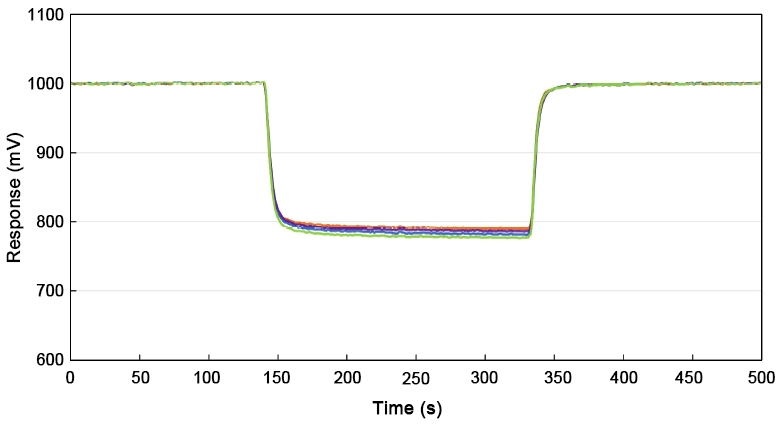

Response Recovery Curve

CLO2 gas sensor response recovery curve

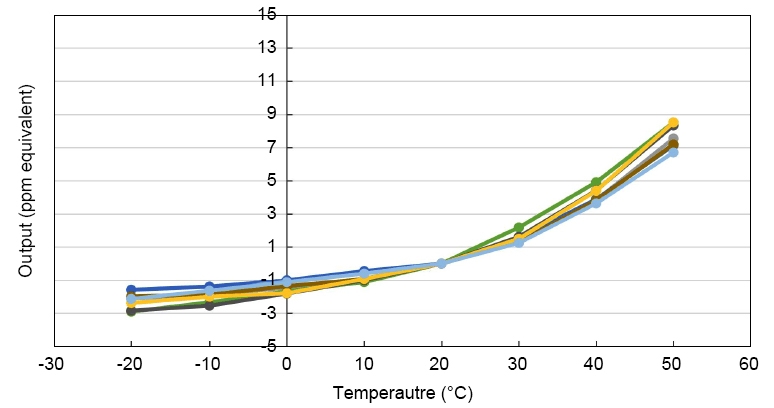

Baseline Temperature Dependency Curve

CLO2 gas sensor baseline temperature dependence curve

Specs

Detection Principle	Electrochemical three-electrode
Detected Gas	Chlorine Dioxide (ClO2)
Detection Range	0-50ppm
Maximum Load Concentration	100ppm
Sensitivity	-600 ±200 nA/ppm
Zero Drift	<0.3 ppm
Resolution	1ppm
Response Time	<60s
Bias Voltage	0 mV
Communication Interface	RS485, TTL (optional)
Load Resistance	5~30Ω
Operating Pressure	90 to 110 kPa
Temperature Range	-30°C to 50°C
Humidity Range	15%RH to 90%RH (Non-condensing)
Repeatability	2% output signal
Long-term Stability	< 2% signal/month
Linearity	Linear
Service Life	2 years

Application

Industrial ClO2 Gas Detection

Pharmaceutical ClO2 Detection

Petroleum ClO2 Detection

FAQ

Q1: What is the function of a chlorine dioxide gas sensor? ❯

Chlorine dioxide (ClO₂) is a highly oxidizing gas widely used in drinking water disinfection, food processing, and pulp and paper industries. However, it is irritating and corrosive, and exposure above safe levels can harm the respiratory tract and eyes. Chlorine dioxide gas sensors continuously monitor ClO₂ concentrations in the air, triggering alarms when levels exceed safety thresholds to protect personnel health and ensure production environment safety.

Q2: Where are chlorine dioxide gas sensors suitable for use? ❯

Chlorine dioxide sensors are widely deployed in water treatment plants, swimming pool disinfection systems, paper mills, food processing facilities, laboratories, and gas cylinder storage rooms or pipeline areas. In these settings, ClO₂ is commonly used as a disinfectant or bleaching agent.

Q3: How should chlorine dioxide sensors be maintained? ❯

To ensure detection accuracy and service life, users are advised to perform regular calibration with calibration gas, typically every 6-12 months. During routine use, avoid prolonged exposure to high ClO₂ concentrations to prevent premature failure. Keep the gas sensor probe clean, prevent dust and moisture ingress, and operate within the temperature and humidity conditions specified in the manual.
