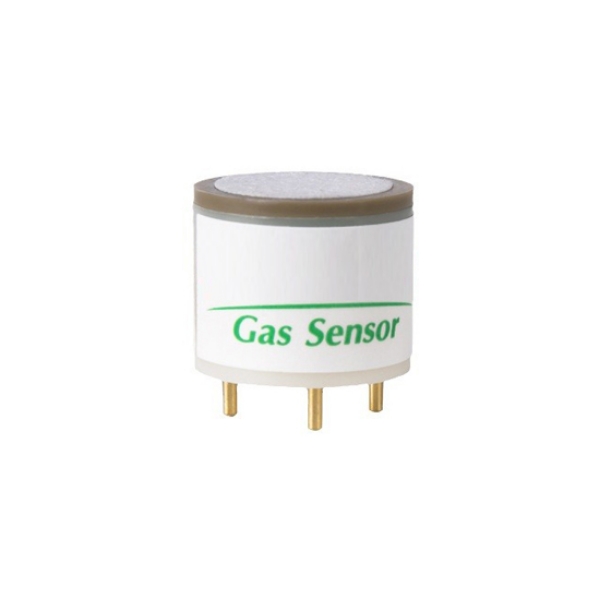

Nitric Oxide (NO) Gas Sensor, 0-50ppm to 0-5000ppm

High-precision and stable nitrogen monoxide gas sensors for sale. This NO sensor prioritizes practicality and compatibility in its design, with selectable ranges of 0-50ppm, 0-250ppm, 0-1000ppm, and 0-5000ppm. The gas sensor operates with a +300mV bias voltage, utilizing electrochemical three-electrode monitoring principles. Its linear output provides intuitive data representation, with a maximum concentration tolerance of 1000ppm, significantly enhancing operational safety.

Feature

• High-sensitivity nitrogen monoxide sensors accurately detect NO variations at low concentrations with short response times, ensuring reliable real-time monitoring.
• Manufactured using advanced electrochemical technology, these NO sensors exhibit excellent selectivity and stability, effectively minimizing interference from other gases.
• The sensor features a compact design and low power consumption, making it suitable for integration into portable devices or fixed systems with flexible and convenient application.
• It maintains stable performance under various temperature and humidity conditions while offering a long service life, meeting the demands of long-term applications.

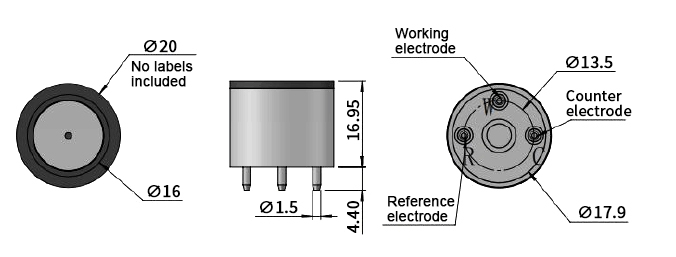

Dimension (unit: mm)

Cross Interference

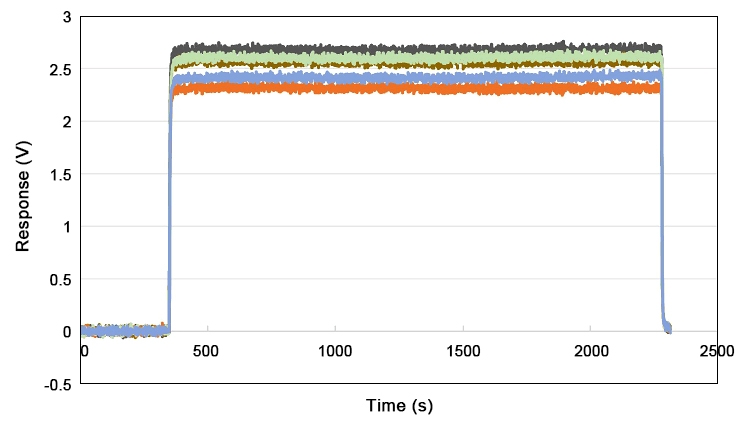

Response Recovery Curve

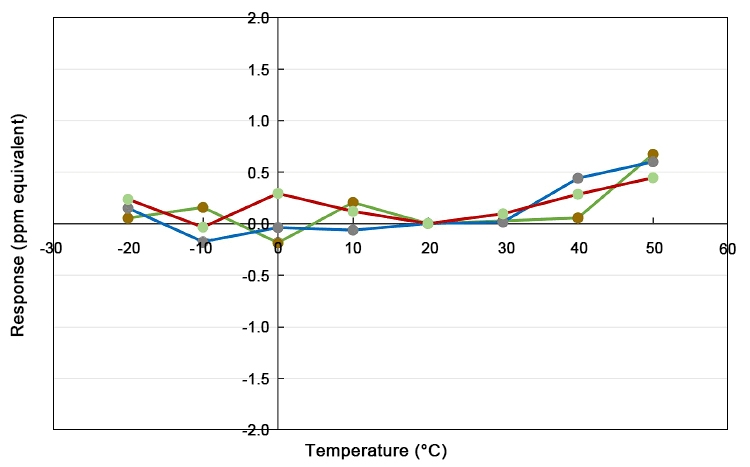

Baseline Temperature Dependency Curve
