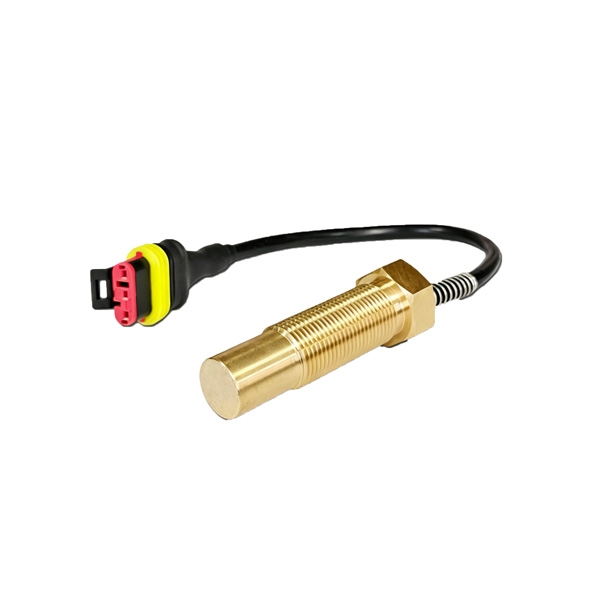

Hall Effect Vehicle Speed Sensor, IP67, Square Wave Output

The SUCH hall effect speed sensor is a non-contact vehicle speed sensor that uses hall effect technology to detect rotational speed and output a stable square wave signal up to 20KHz. Operating on 5-30V DC, it features an IP67-rated H62 copper housing for reliable performance in automotive transmissions, gearboxes, motorcycles, and wheel-end speed monitoring systems.

Feature

• 5-30V DC Wide Operating Voltage — Supports both 12V and 24V vehicle electrical systems for flexible installation across platforms.
• IP67 Sealed H62 Copper Housing — Resists moisture, dust, and road debris in exposed underbody and drivetrain locations.
• 20KHz Square Wave Signal Output — Delivers a clean digital signal compatible with ECUs, dashboards, and speed control modules.
• -40°C to +70°C Operating Temperature — Maintains stable performance in extreme underhood conditions, with -55°C to +80°C storage tolerance.
• 0.5-2.5mm Detection Range — Maintains consistent signal output across standard installation gap tolerances.
• Non-Contact Hall Effect Sensing — Reduces mechanical wear compared to contact-based sensors, supporting long-term signal reliability.
• 10g Vibration and Shock Resistance (57-2000Hz, 11ms) — Meets durability requirements for mobile equipment and vibration-heavy environments.
• Multiple Connector Configurations — Compatible with different transmission, gearbox, and wheel-end mounting requirements.

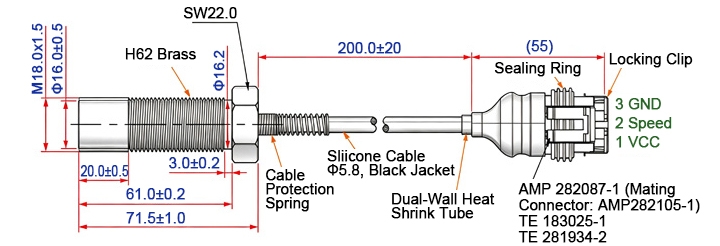

Dimension (Unit:mm)

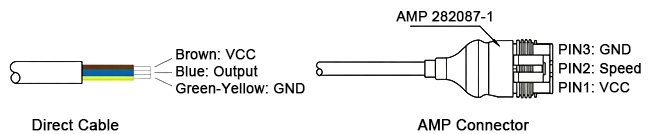

Wiring

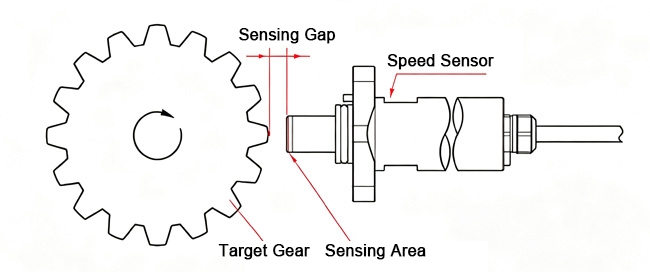

Installation
