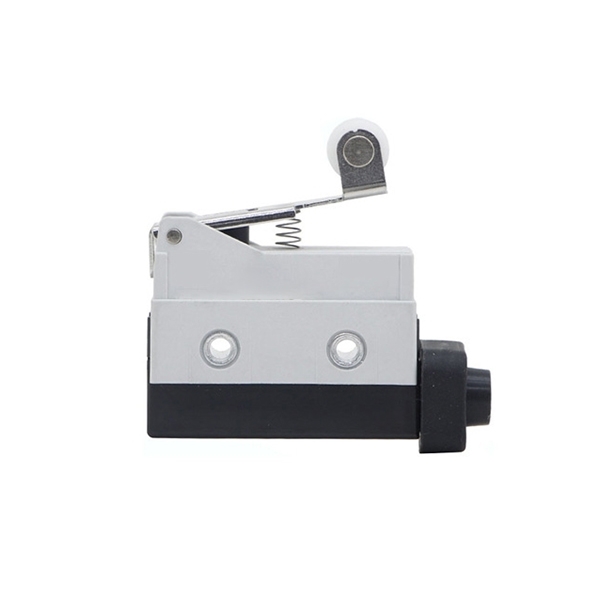

    Mechanical Sealed Limit Switch with Roller Lever/Plunger

    0 review(s) | Add your review
    SKU: SUCH-LMS-LZ5
    $54.86
    ● Rating: 10A 125/250VAC, 0.5A 125VDC ● Initial contact resistance: 25mΩ max. ● Contact form: NO NC ● Protection degree: IP65
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Mechanical limit switch features a roller lever or plunger design and provides an IP65 waterproof rating, making it suitable for use in humid, dusty, or harsh industrial environments. It supports a rated current of 10A at 125/250V AC and 0.5A at 125V DC, offering reliable electrical control for various automation systems. SUCH mechanical limit switch includes both normally open (NO) and normally closed (NC) contacts, allowing flexible integration into different control circuits, suitable for applications in automation equipment, mechanical operations, and more.

    Feature

    • IP65 rated for dustproof, oil-proof, and waterproof protection.
    • Multiple actuator options available.
    • Durable sealed design with high mechanical strength.
    • High precision and fast response operation.
    • CCC and CE certified for quality and safety compliance.

    Contact Form

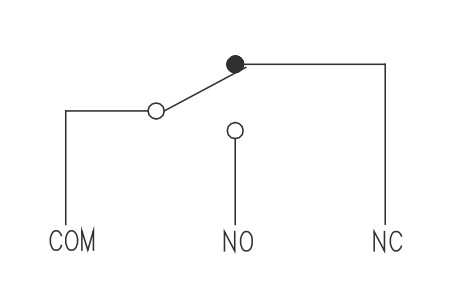

    Mechanical limit switch contact

    Actuators

    Mechanical limit switch short roller lever

    LZ5120 (Short roller lever)

    Mechanical limit switch roller lever

    LZ5121 (Roller lever)

    Mechanical limit switch panel mount across roller plunger

    LZ5341 (Panel mount across roller plunger)

    Mechanical limit switch panel mount roller plunger

    LZ5342 (Panel mount roller plunger)


    Mounting Holes Dimension (Unit: mm)

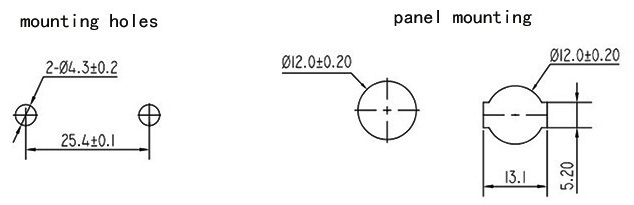

    Mechanical limit switch installing dimension

    Specific Model Dimension (Unit: mm)

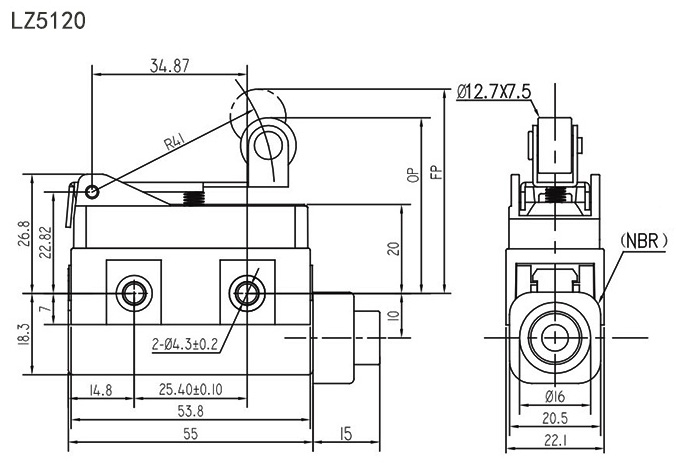

    Mechanical limit switch short roller lever dimension

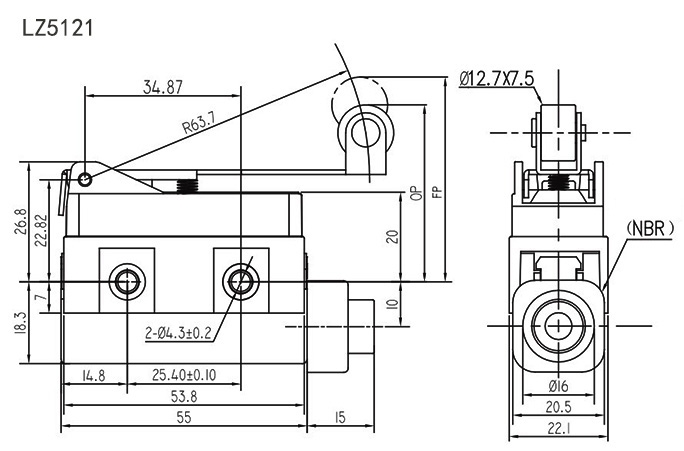

    Mechanical limit switch roller lever dimension

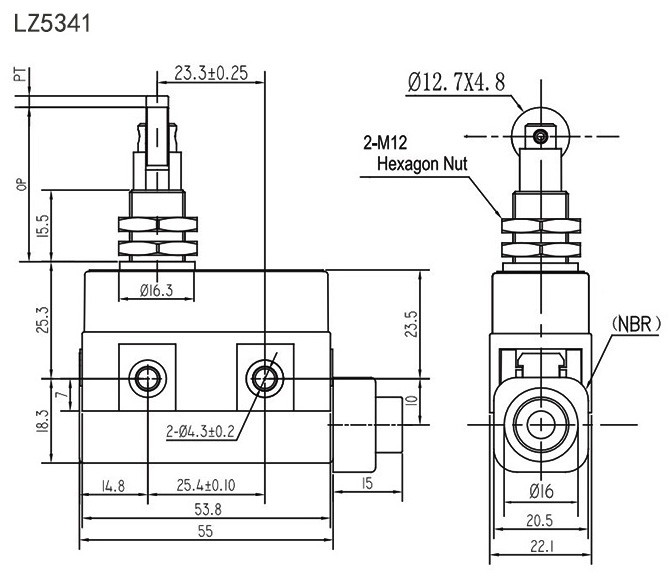

    Mechanical limit switch across roller plunger dimension

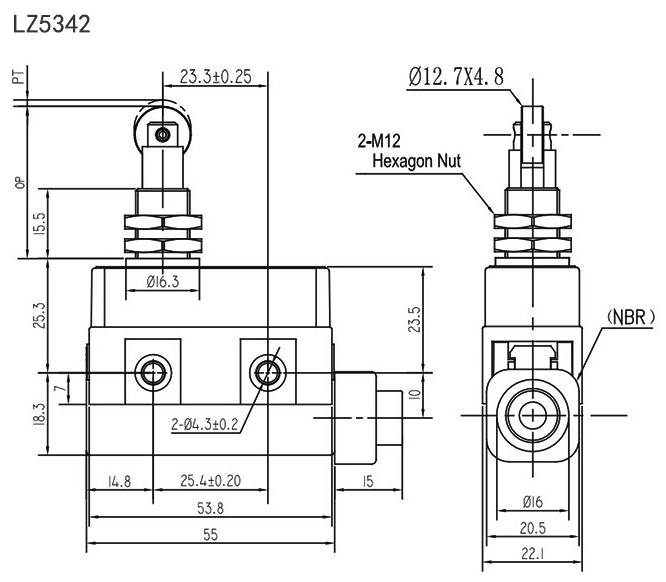

    Mechanical limit switch roller plunger dimension

    Specs
    Rating 10A 125/250VAC 0.5A 125VDC
    Initial Contact Resistance 25mΩ max.
    Initial Insulation Resistance 100mΩ min. (at 500VDC)
    Dielectric Strength Between non-consecutive terminals 1000Vrms, 50/60Hz for 1 min
    Between non-current carrying metal parts and each terminal 2000Vrms, 50/60Hz for 1 min
    Between ground and each terminal 2000Vrms, 50/60Hz for 1 min
    Max.shock Resistance Destruction 1000m/s2
    Malfunction 300m/s2
    Vibration Resistance 10-55Hz, 1.5mm double amplitude
    Operating life Mechanical life 1,000,000 times min.
    Electrical life 100,000 times min.
    Ambient Temperature -10℃ to +85℃
    Ambient Humidity 95%RH max.
    Operating Frequency Mechanical 120 times/min
    Electrical 30 times/min
    Operating Speed 0.01mm-50cm/s
    Protection Degree IP65


    Actuator Operating Characteristic

    Model LZ5120 (Short roller lever) Model LZ5121 (Roller lever)
    O.F. max. 300g (2.94N) O.F. max. 200g (1.96N)
    R.F. min. 40g (0.39N) R.F. min. 40g (0.39N)
    O.T. min. 2mm O.T. min. 5mm
    M.D. max. 1.5mm M.D. max. 3mm
    O.P. 40±1 mm O.P. 40±1 mm
    F.P. max. 47mm F.P. max. 51mm
    Model LZ5341 (Panel mount across roller plunger) Model LZ5342 (Panel mount roller plunger)
    O.F. max. 600g (5.88N) O.F. max. 600g (5.88N)
    R.F. min. 100g (0.98N) R.F. min. 100g (0.98N)
    P.T. max. 1.6mm P.T. max. 1.6mm
    O.T. min. 5mm O.T. min. 5mm
    M.D. max. 0.2mm M.D. max. 0.2mm
    O.P. 33.4±1.2 mm O.P. 33.4±1.2 mm

    OF: Operating Force

    RF: Release Force

    PT: Pre-Travel

    OT: Over Travel

    MD: Movement Differential

    OP: Operating Position

    FP: Free Position

    Application
    Conveying system

    Conveying System

    Automation equipment

    Automation Equipment

    Industrial machinery

    Industrial Machinery

    FAQ
    ❯

    Ensure the switch is installed in the correct orientation and aligned properly with the moving actuator to ensure accurate and reliable operation.

    ❯

    Yes, regular inspection and basic maintenance such as cleaning and lubrication can help ensure stable performance and extend service life.

    ❯

    Yes, it is recommended to test the limit switch before installation to ensure proper and reliable operation.

    0 review(s)
