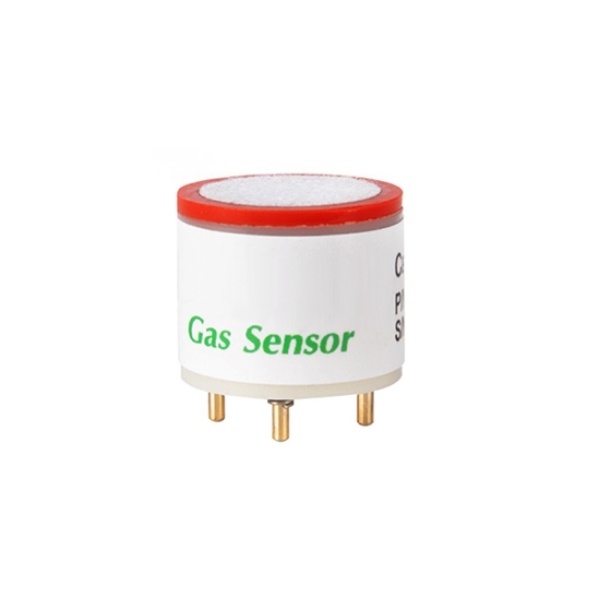

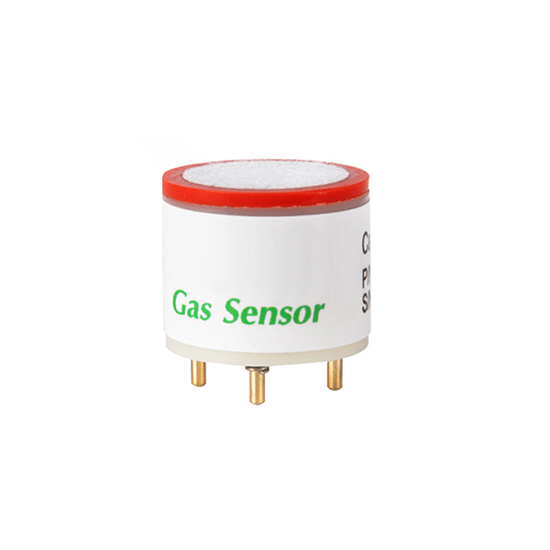

VOC Detection Gas Sensor, 0-100ppm

0 review(s) | Add your review

SKU: SUCH-GAS-VOC

$191.18

● Detect: VOC ● Rang: 0-100ppm ● Electrochemical three-electrode ● Resolution: 1ppm

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Using advanced electrochemical technology, high-performance VOC gas sensors are available for sale. It can detect volatile organic compounds within a concentration range of 0-100ppm, featuring exceptional sensitivity with a resolution of 1ppm and a fast response time within 60 seconds. The VOC sensor is suitable for industrial, environmental, and air quality monitoring applications, with a lifespan of up to 2 years.

Feature

VOC gas sensor feature

High Sensitivity and Accuracy: Featuring an electrochemical three-electrode design, the VOC sensor achieves precise detection within the 0-100 ppm range.
Rapid Response Time: Response time ≤60 seconds enables swift identification of volatile organic compounds, ensuring reliable real-time monitoring in dynamic environments.
Robust Design and Seamless Integration: Incorporating a compact linear structure with 100Ω load resistance and 0mV bias voltage characteristics.

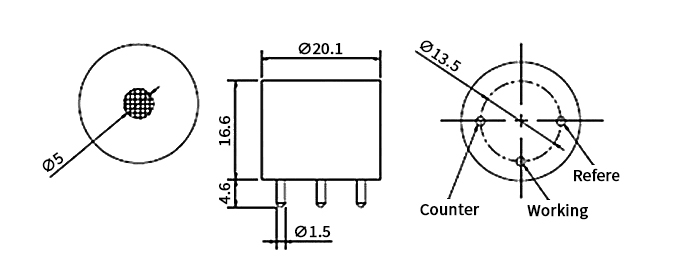

Dimension (unit: mm)

VOC gas sensor dimension

Cross Interference

Gas	Test Concentration (ppm)	Reading (ppm)
NH₃	50	-1
CO	100	125
Cl₂	10	-3
ETO	14	3
C₂H₂	100	250
H₂S	25	100
SO₂	20	9
C₂H₄	100	170

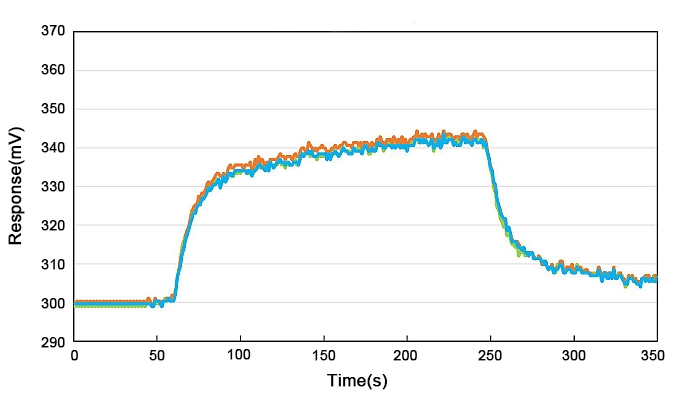

Response Recovery Curve

VOC gas sensor response recovery curve

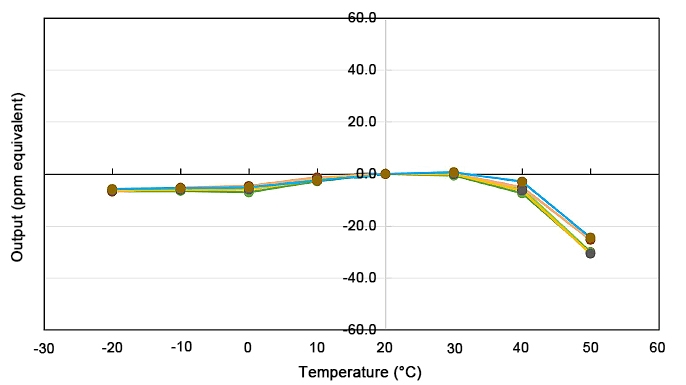

Temperature Dependency Curve

VOC gas sensor tempe dependence curve

Specs

Detection Principle	Electrochemical three-electrode
Detected Gas	VOC
Detection Range	0-100ppm
Maximum Load Concentration	200ppm
Sensitivity	55±15 nA/ppm
Resolution	1ppm
Response Time	≤60s
Bias Voltage	0mV
Load Resistance	100Ω
Temperature Range	-30°C to 50°C
Humidity Range	15%RH to 90%RH (Non-condensing)
Repeatability	2% output signal
Long-term Stability	< 2% signal/month
Linearity	Linear
Operating Pressure	90 to 110 kPa
Warranty	12 months after delivery

Application

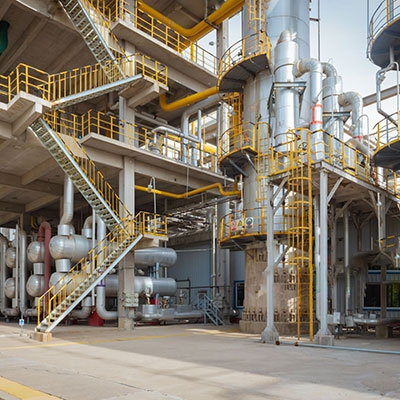

Industrial VOC Gas Detection

Medical VOC Detection

Atmospheric Environment VOC

FAQ

Q1: What is a VOC gas sensor? ❯

A VOC gas sensor is a device used to detect volatile organic compounds (such as formaldehyde, benzene, and ethanol) in the air. These gases typically originate from paints, cleaning agents, and industrial emissions. VOC sensors help monitor indoor air quality and identify harmful pollutants in residential and industrial environments.

Q2: How should VOC gas sensors be maintained? ❯

Regular calibration and cleaning are essential for maintaining the accuracy of VOC gas sensors. Avoid environments with high humidity, corrosive gases, or extreme temperatures. It is recommended to replace the sensor every 1-2 years based on usage frequency and environmental conditions.

Q3: What are the advantages of using a VOC sensor? ❯

VOC gas sensors offer real-time air quality monitoring, high sensitivity, and rapid response capabilities. They enable users to take timely action—such as activating ventilation systems—thereby reducing health risks from toxic gases and enhancing environmental safety.
