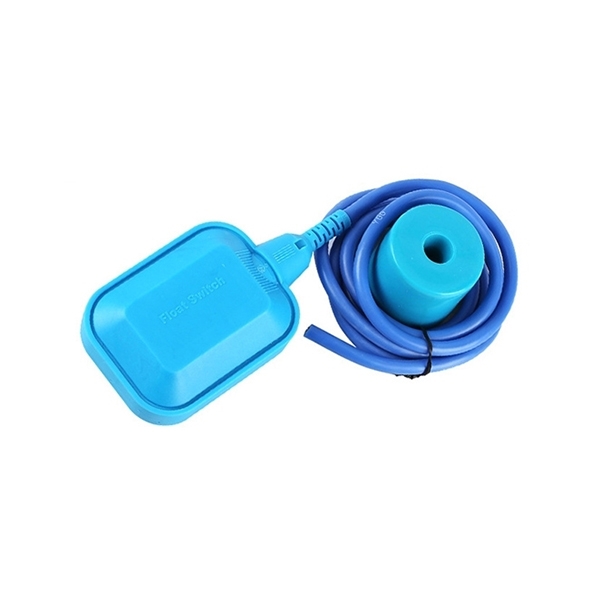

Water Level Float Switch for Water Tank/Water Pump/Sewage

Water level float switch is a highly reliable device for monitoring and controlling the liquid level in containers. It comes with selectable cable lengths from 2m to 10m, operates on AC 220V, has a rated power of 1100W, and an operating temperature range of 0~80℃. It features excellent corrosion resistance and good insulation, ensuring stable, safe, and durable operation. SUCH water float switch is suitable for various scenarios including industrial, commercial, and residential applications, enabling automatic water level control.

Feature

• High-quality Housing Design: Provides excellent electrical performance and insulation, ensuring safety and reliability.
• High-temperature Resistant Silicone Rubber Wire: Withstands temperatures up to 80℃, offering heat and cold resistance. A thickened protective sleeve effectively prevents damage to the wire core in harsh environments, while also providing excellent insulation and anti-aging properties.
• Thickened Copper Wire: Utilizes high-quality thickened copper wire for enhanced conductivity and stability, significantly extending product lifespan.
• Microswitch Structure: Equipped with composite silver contacts, it is particularly suitable for scenarios involving frequent motor starts, offering sensitive response and stable performance.

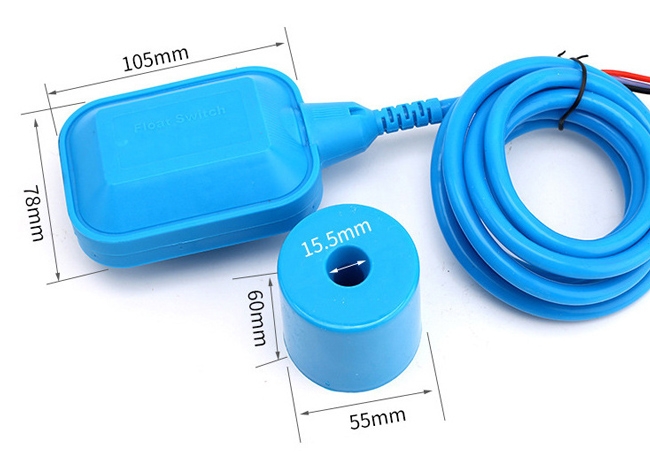

Dimension (Unit: mm)

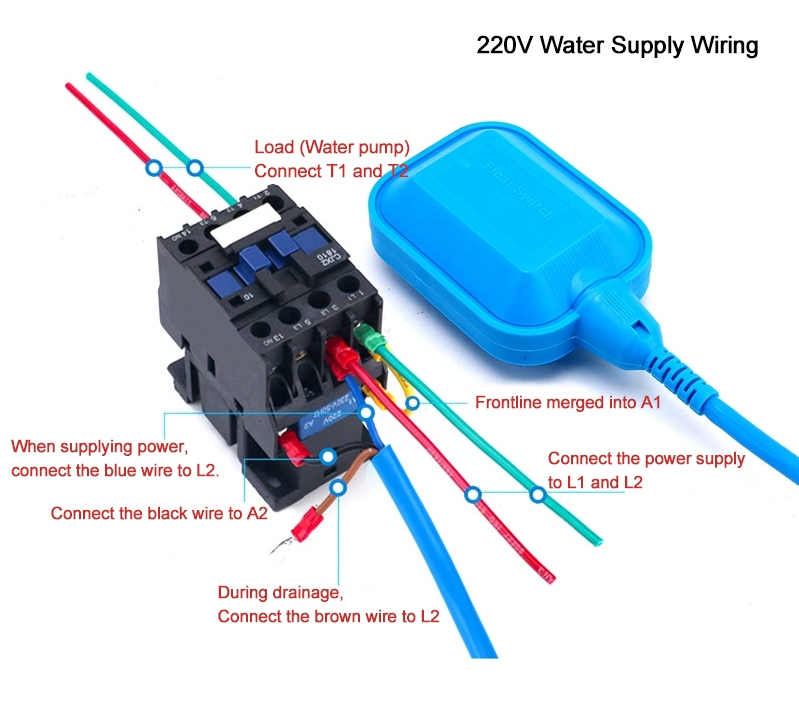

Wiring Diagram
