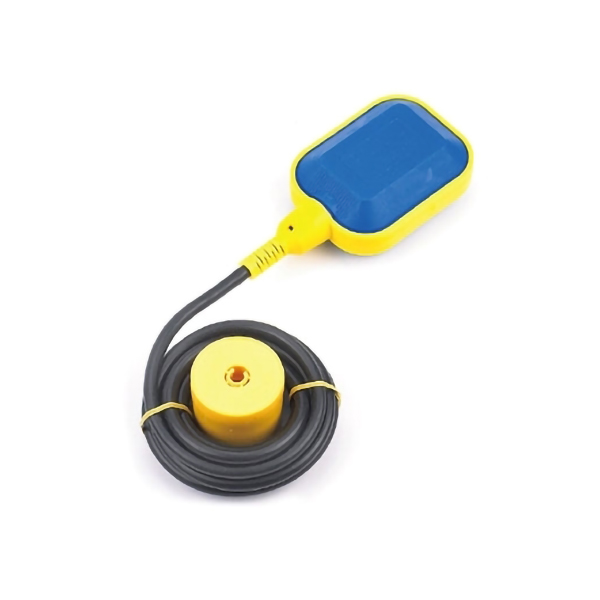

Water Tank Cable Float Switch, 1NO + 1NC, 110/220V

SKU: SUCH-FLS-HTM152

$59.72

● Rated voltage: AC 110V~220V ● Contact form: SPDT (1NO + 1NC) ● Cable length 2m~30m (customizable) ● Max. using temperature 60℃

Cable Length *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH cable float switch for water tanks features single-pole double-throw (SPDT) contacts (1 normally open + 1 normally closed) to support filling and draining control, helping to prevent overflow and pump dry running. With its ABS housing and IP68 waterproof rating, it is suitable for long-term immersion environments and operates reliably. It is available in various cable lengths and is easy to install.

Feature

PVC Cable: Made of non-toxic and odor-free PVC material, the cable is soft yet resistant to rupture, ensuring durability and a long service life.
High Temperature & Corrosion Resistance: Designed to operate reliably within a temperature range of 0–60°C, the cable float level switch adapts well to various harsh environments.
Easy Installation: Featuring automatic adjustment, user-friendly operation, and a well-designed structure, the float switch is easy to install and convenient to use.

Cable float level switch feature

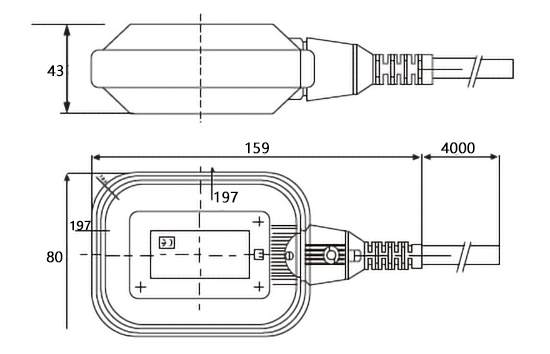

Dimension (Unit: mm)

Cable float switch for water tank dimension

Wiring Diagram

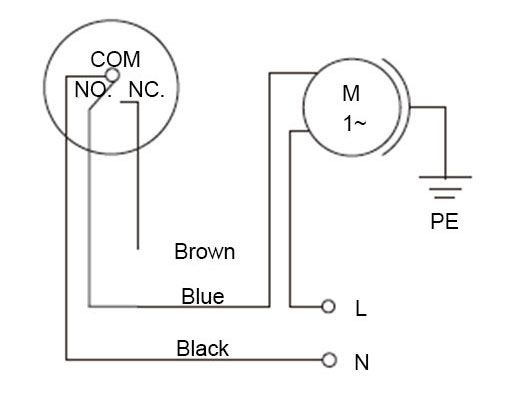

Auto-fill-water mode:

Cable float switch for water tank auto fill water

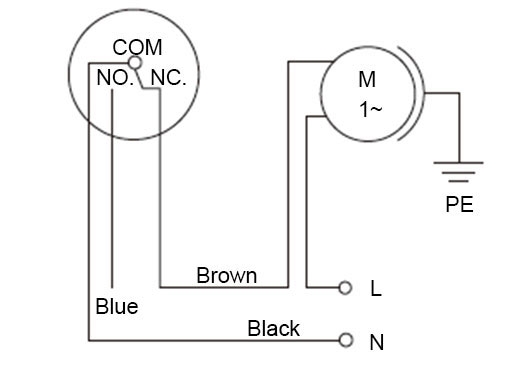

Auto-drainage and lack-water protection mode:

Cable float switch for water tank auto drainage and lack water protection

Specs

Rated Voltage	AC 110V~220V
Contact Form	SPDT (1NO + 1NC)
Cable Length	2m (Default), 3m, 4m, 5m, 10m, 20m, 30m, Customizable
Max. Current	AC 16 (4)A
Frequency	50/60 Hz
Max. Using Temperature	60℃
Material	ABS
Protection Degree	IP68

Application

Water Tank

Water Pool

Liquid Storage Tank

FAQ

Q1: Does the float switch need adjustment? ❯

No. The float liquid level switch itself cannot be adjusted. Only the water level position needs to be set correctly before installation.

Q2: How can I check if the float switch is working properly? ❯

You can use a multimeter to test the switch status. As the float moves up and down with the water level, the switch should turn on and off near the waterline, indicating normal operation.

Q3: How should the float switch be positioned during installation? ❯

The switch should be installed according to the actual working water level of the equipment. It is usually fixed on the tank or cylinder wall at the required water level position.
