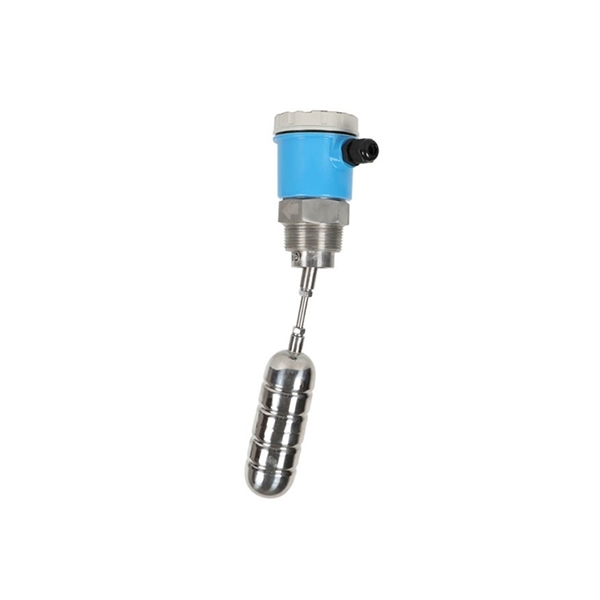

Industrial Side Mounted Float Liquid Level Switch, SPDT

Side-mounted float level switch uses a G1 threaded connection and is equipped with SPDT (IC) contacts. The output contact capacity is 5A/220V AC, and it can withstand a maximum operating pressure of 15Bar. SUCH float switch uses a float that moves with the liquid level to trigger an internal switch, enabling liquid level monitoring and control, effectively preventing tank overflow or dry running. It features a simple structure, stable performance, and is suitable for various industrial and commercial liquid level control applications.

Feature

• Simple structure with easy installation and maintenance.
• Stable and reliable performance for long-term operation.
• Not easily affected by viscous liquids, suitable for a wide range of media.
• Control part is completely isolated from the measured liquid, ensuring high safety.
• Suitable for high-temperature and high-pressure environments.

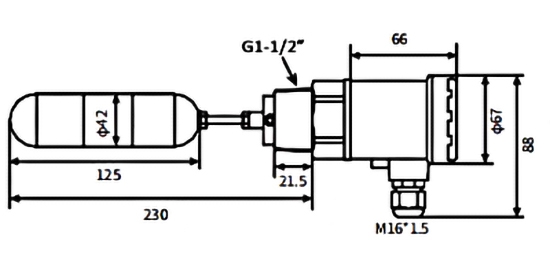

Dimension (Unit: mm)

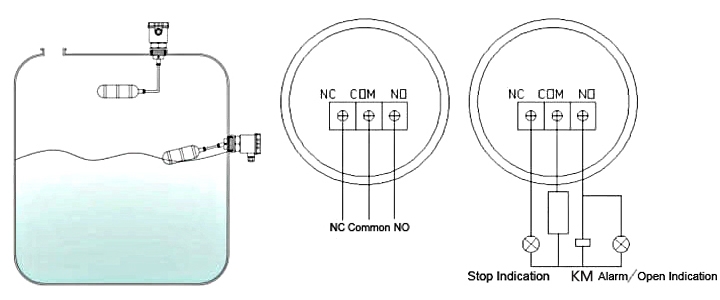

Installation Method

1. The installation should be far away from the water inlet (outlet) to avoid malfunction caused by water fluctuations.
2. When installed in an area with stirring, anti-wave pipes or baffles can be installed;
3. The control line load cannot be used with overload (use with less than the contact capacity).
4. The angle at which the float and its connecting rod move up and down (with the horizontal line) is ±14 degrees. When the float is in a horizontal position, the switch operates.
5. When installing, pay attention to the length and hole size of the connecting pipe to ensure the floating range of the float.

Note: There is a certain error allowed in the total length of the float and connecting rod.
