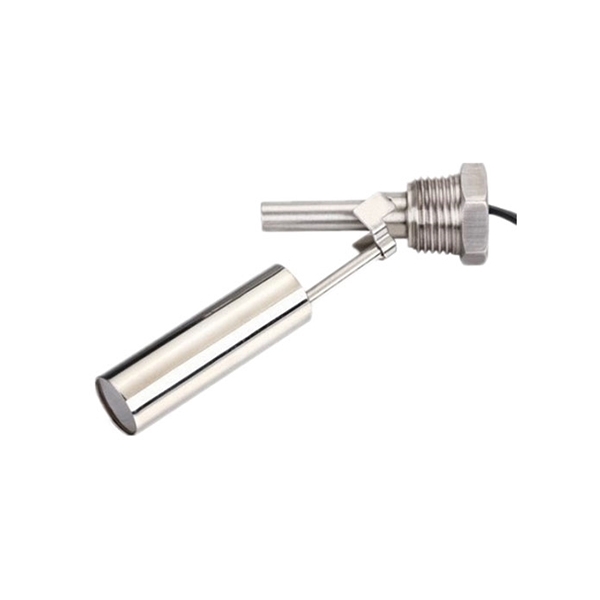

Side Mounted Float Level Switch for Water Tank, 1NO/1NC

Side mounted float level switch is a compact and reliable liquid level sensor made of stainless steel, consisting of a magnetic reed switch and a float to detect liquid level position. SUCH float switch offers optional contact ratings of 10W or 50W and contact forms of 1NO or 1NC. With excellent corrosion resistance and stable performance, it is widely used in water tanks, air conditioning systems, water fountains, humidifiers, bathroom equipment, vending machines, oil tanks, and chemical liquid level control applications.

Feature

• Made of stainless steel, corrosion-resistant with long service life.
• Side-mounted design for easy installation and maintenance.
• Uses high-quality magnetic reed switch for stable and reliable performance.
• Compact size with simple and dependable operating principle.
• Float moves with liquid level and magnetically actuates the switch for accurate level detection.

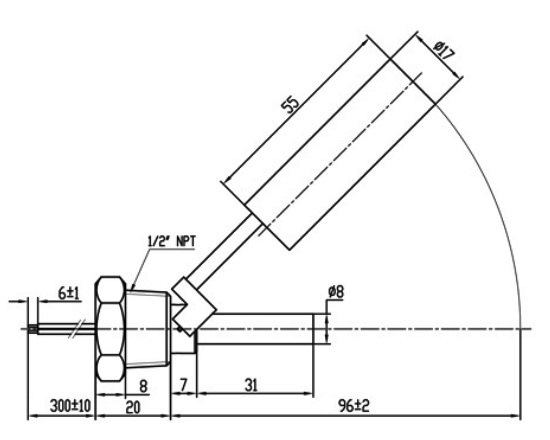

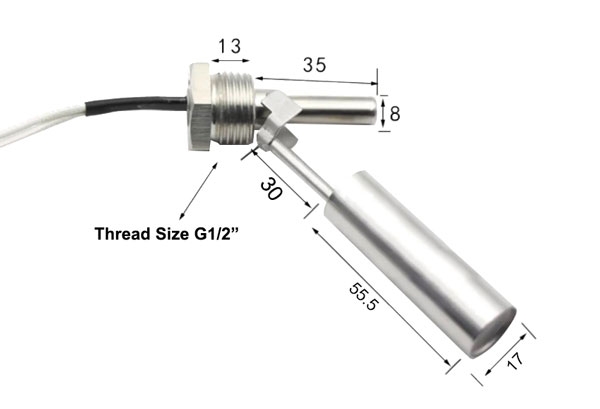

Dimension (Unit: mm)

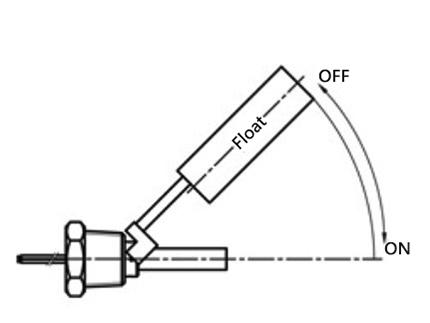

Operating Instruction

When the float is between 10±5°, the reed switch is closed; when the float is between 40±5°, the reed switch is open.
