    Picture of Side Mounted Water Float Switch, Stainless Steel, 100/220V Picture of Side Mounted Water Float Switch, Stainless Steel, 100/220V

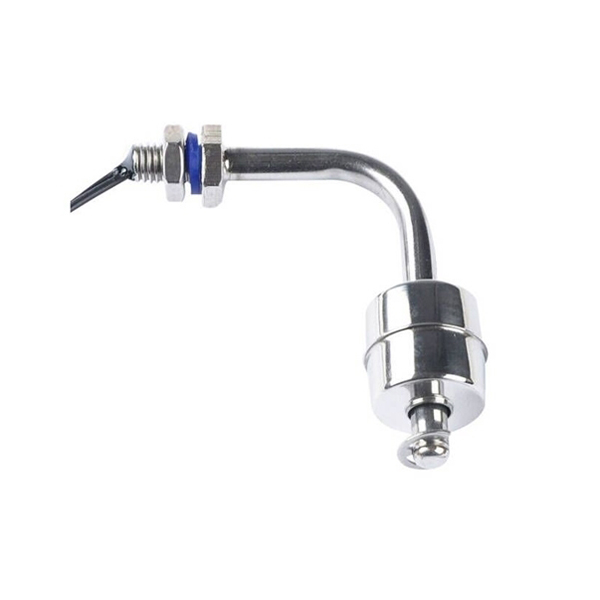

    Side Mounted Water Float Switch, Stainless Steel, 100/220V

    0 review(s) | Add your review
    SKU: SUCH-FLS-ESC7810
    $49.86
    ● Maximum power 10VA/50VA ● Maximum switching voltage 100V/220V ● Maximum switching current 0.5A/1.5A ● Maximum contactor resistance 100mΩ
    *
    šŸšš Free shipping
    šŸ•’ Delivery date: 6-12 days
    šŸ” 30-day Returns
    Overview

    Side-mounted stainless-steel float switch is made of 304 stainless steel, which is corrosion-resistant, durable and reliable. It supports 100V/220V AC or DC voltage, and the power can be selected as 10VA or 50VA. The threaded installation method makes it easy to install quickly. SUCH float switch is suitable for various liquid level detection and control, and is widely used in water machines, water heaters, solar equipment, air conditioners, humidifiers, bathroom equipment, oil tanks, water towers, as well as chemical, industrial, agricultural and household appliances. It has stable performance and high cost performance.

    Feature

    • High-Quality Retaining Ring: Made of 304 stainless steel, corrosion-resistant and rust-free, suitable for long-term use in humid environments.
    • Laser Seamless Welding: Manufactured with advanced laser welding technology, ensuring a smooth appearance, strong joints, and enhanced structural stability.
    • Epoxy Resin Sealing: High-strength epoxy sealing provides excellent protection, effectively preventing foreign matter from entering and damaging internal components.
    • Rubber Gasket: Thickened rubber gasket with strong sealing performance, eco-friendly and oxidation-resistant, offering reliable waterproof protection.

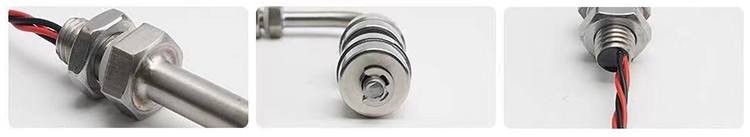

    Side mounted float switch feature

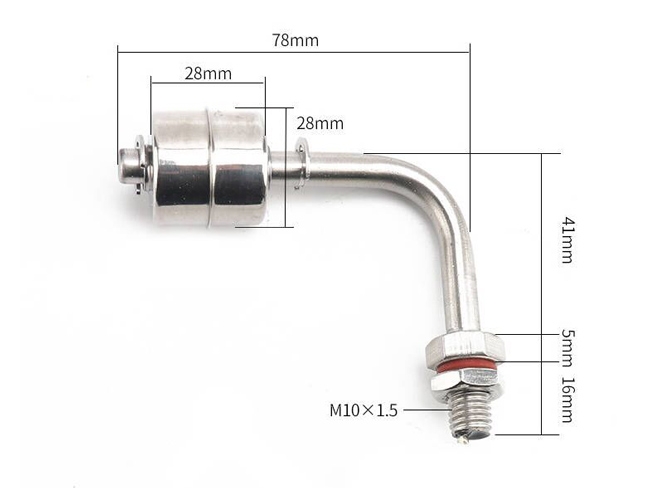

    Dimension (Unit: mm)

    Side mounted float switch dimensions

    Specs
    Maximum Power 10VA 50VA
    Maximum Switching Voltage 100V AC or DC 220V AC or DC
    Maximum Switching Current 0.5A 1.5A
    Maximum Breakdown Voltage 110V AC or DC 300V AC or DC
    Maximum Load Current 1.0A 3.0A
    Maximum Contactor Resistance 100mĪ© 100mĪ©
    Connection Method Thread (M10*1.5)
    Material 304 Stainless Steel
    Ambient and Liquid Temperature Range -30ā„ƒ~125ā„ƒ
    Application
    Water tank

    Water Tank

    Household appliances

    Household Appliances

    Water pool

    Water Pool

    FAQ
    āÆ

    Stainless steel float switches offer excellent durability and corrosion resistance, making them ideal for harsh environments with moisture, chemicals, or extreme temperatures. They ensure stable performance and a longer service life.

    āÆ

    Yes. Stainless steel is highly resistant to corrosion, allowing the float switch to operate reliably in water, chemicals, and other corrosive liquids without degradation.

    āÆ

    They are widely used in industrial tanks, water treatment systems, sewage systems, pumps, boilers, and various residential and industrial liquid level control applications.
