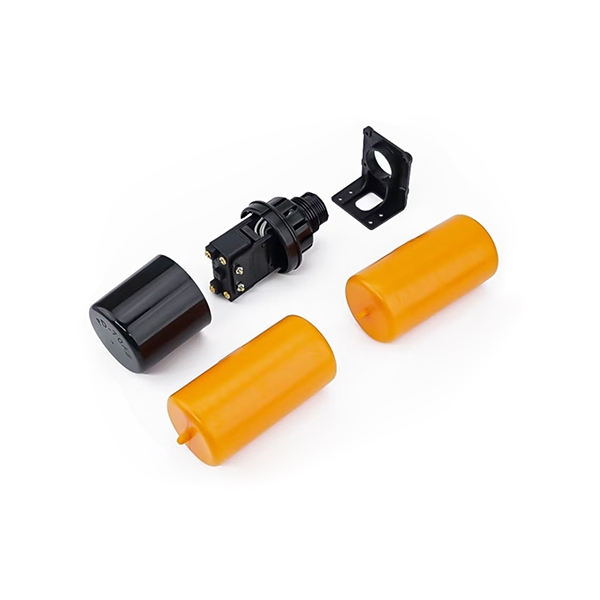

Automatic Dual Float Level Switch, 5A/220V

Dual-ball level float switch is a fully automatic water supply control device for water tanks, water towers, and water storage systems. SUCH automatic float switch uses a dual-float structure to automatically control high and low water levels, achieving automatic water replenishment and supply stoppage. The float switch has a rated current of AC 5A (resistive load), an applicable voltage of ≤380V (220V recommended), and a maximum power of 700W. It can directly control small-power water pumps. The operating temperature range is 0～60℃. Its mechanical structure is stable and durable, with a service life exceeding 8000 cycles. It is widely used in water towers, rooftop water tanks, underground water pools, and agricultural irrigation.

Feature

• It uses high-quality silver contact material, offering excellent conductivity, low contact resistance, and strong arc resistance.
• The shell is made of phenolic resin, possessing high mechanical strength and good insulation properties, while also being heat-resistant and corrosion-resistant.
• The bracket has a screwless design, suitable for installation in water tanks without pre-drilled interfaces or cement-lined structures, making installation more convenient and flexible.
• The connecting rope is made of polyamide (nylon), which is lightweight and durable, and has excellent mechanical strength, wear resistance and good corrosion resistance.

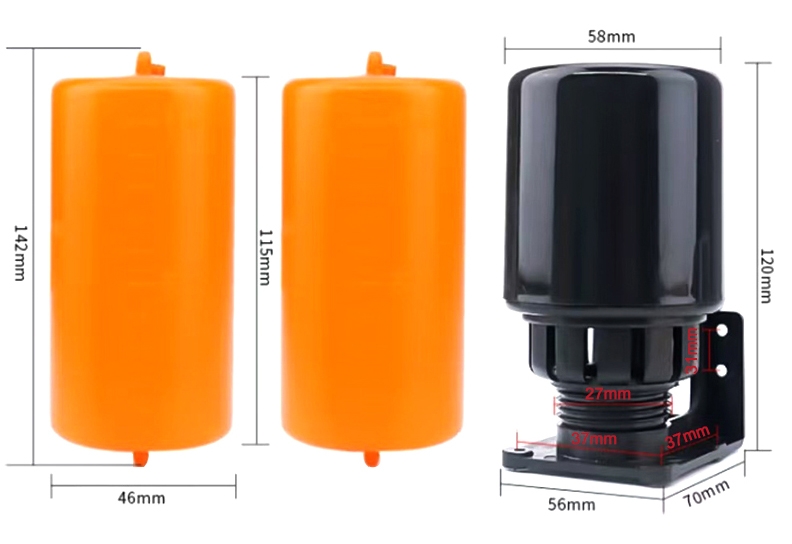

Dimension (Unit: mm)

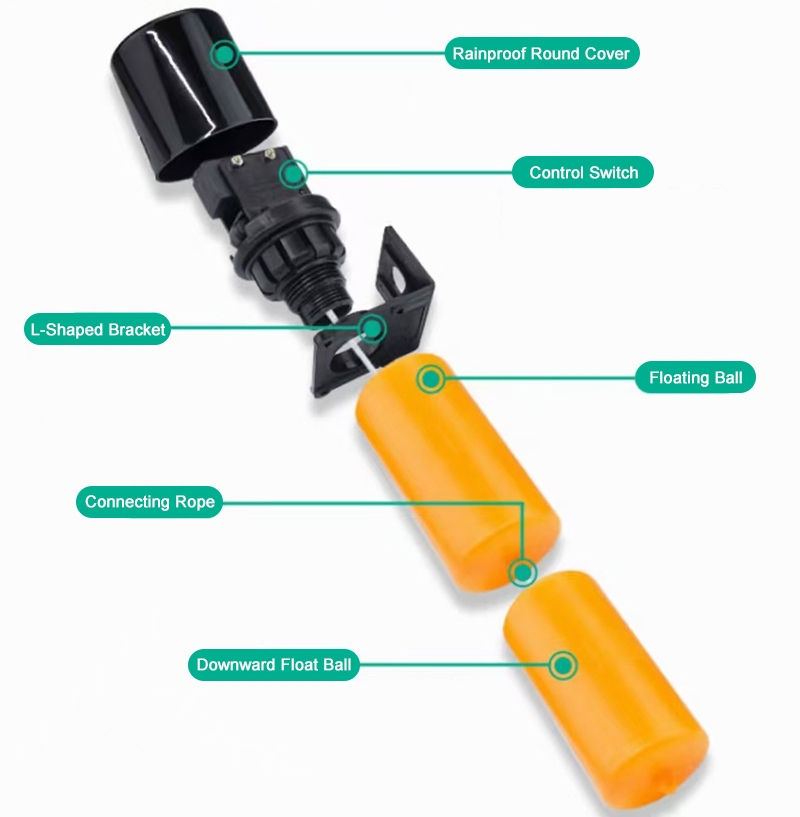

Detail
