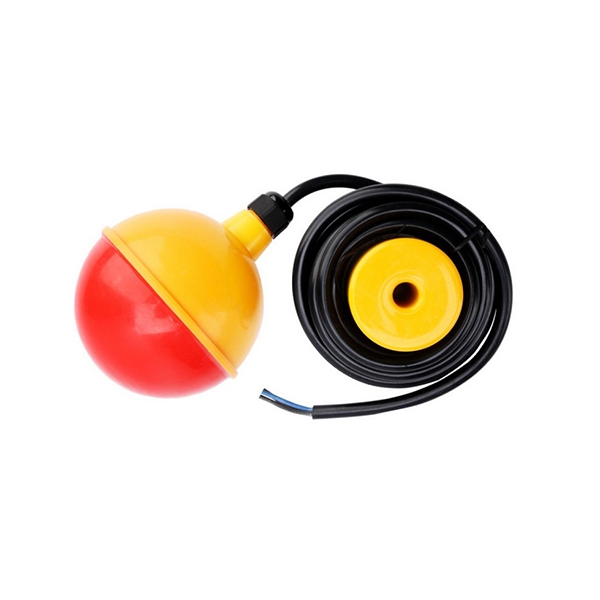

Ball Cable Float Level Switch, 4A/220V

Ball cable float level switch is a reliable device for automatic liquid level control and monitoring, suitable for water tanks, pools, and various industrial liquid storage systems. SUCH ball cable float switch has a rated voltage of AC220V, a rated current of 4A (220V resistive load), a heating current of 10A (250V), a power range of less than 750W, an operating temperature range of 1~80℃, and an IP65 protection rating, providing excellent dust and water resistance. It features a robust structure, high sensitivity, and easy installation.

Feature

• Sensitive microswitch: Rapid response; control is triggered by changes in liquid level, resulting in more stable and reliable operation.
• Thickened copper wire design: Excellent conductivity and strong load-bearing capacity, effectively improving safety and durability.
• Easy operation and installation: Reasonable structural design allows for quick deployment without complex debugging, saving installation time and costs.

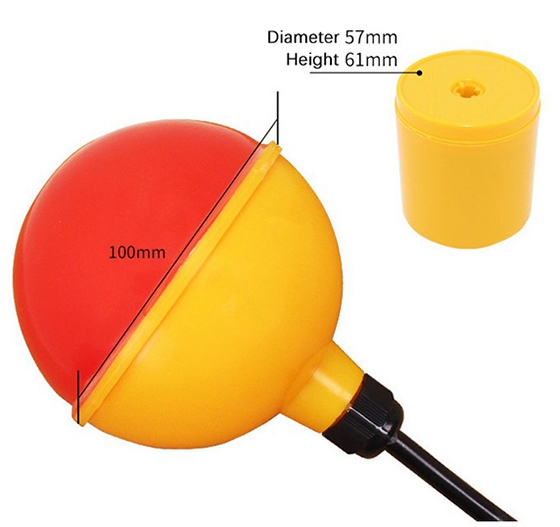

Dimension (Unit: mm)

Principle Diagram
