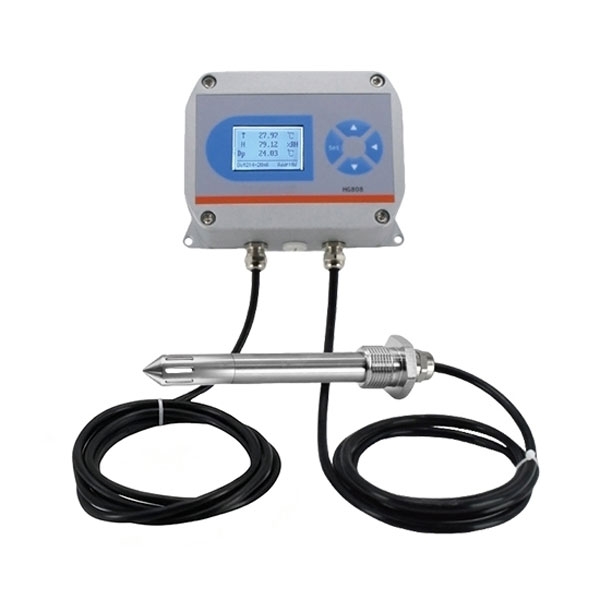

    Dew Point Transmitter for Compressed Air, -60~90°C

    1 review(s) | Add your review
    SKU: SUCH-DPS-HG808D
    $1,068.68
    ● Dew point range: -60~90°C ● Accuracy: ±2°C Td ● Output types: Four types of parameter output ● Protection features: Anti-condensation, anti-interference
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The SUCH industrial-grade online dew point transmitter is designed for compressed air systems to monitor trace moisture in real time, helping improve drying system stability and prevent equipment corrosion, pneumatic failures, and quality issues caused by excessive moisture.With a -60°C to +90°C measurement range and ±2°C Td accuracy, it is suitable for refrigerated dryers, desiccant dryers, and industrial air systems. Featuring anti-condensation design, 16 bar pressure resistance, 150°C temperature tolerance, RS485 Modbus and analog outputs, it enables fast 1-second response and easy integration with PLC/SCADA systems. Ideal for compressed air monitoring, lithium battery, semiconductor, and precision manufacturing applications.

    Feature

    • Multiple Signal Outputs: Supports 4-20mA, 0-5V/0-10V, and RS485 outputs for flexible integration with PLC, SCADA, and control systems.
    • 4-Parameter Display: Simultaneously displays dew point, temperature, relative humidity (%RH), and moisture content (PPMv) for comprehensive process monitoring.
    • Wide Range & High Accuracy: Measures a wide dew point range of -60°C to +90°C with ±2°C Td accuracy. Operates reliably in ambient temperatures from -40°C to +90°C for stable industrial monitoring.
    • Smart Anti-Condensation Heating: Built-in heating function prevents sensor condensation. Heating can be controlled via the display and automatically turns off after 10 minutes to save energy.

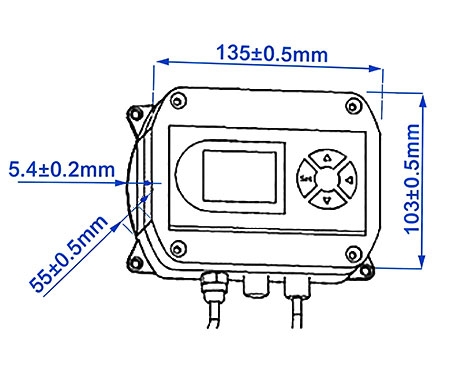

    Dimension (Unit: mm)

    dew point transmitter for compressed air dimension

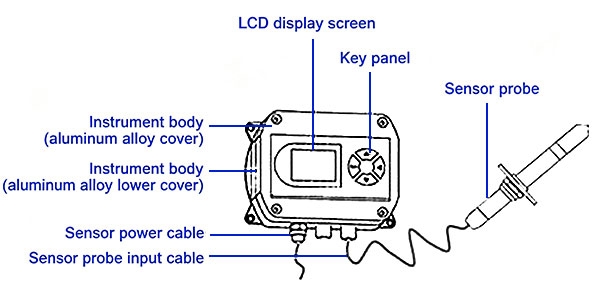

    Details

    dew point transmitter for compressed air details

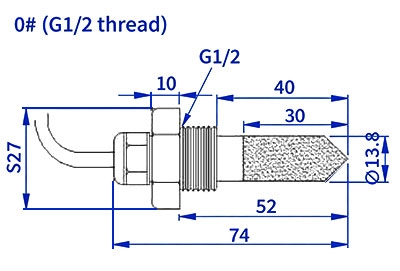

    Probe Dimension (Unit: mm)

    dew point transmitter for compressed air probe 0 dimension

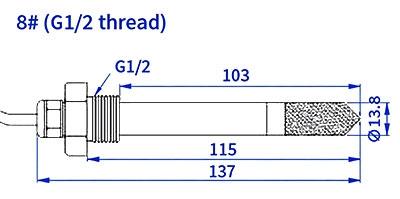

    dew point transmitter for compressed air probe 8 dimension

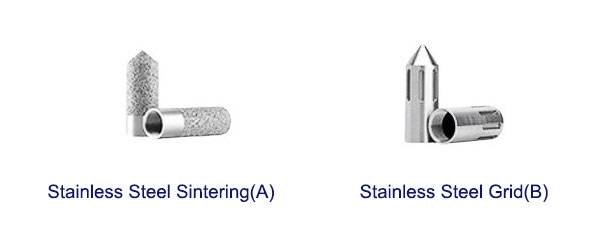

    Probe Protection Cover

    dew point transmitter probe protection cover

    Specs
    Dew Point Range -60~+90°C
    Dew Point Accuracy ±2°C(±3.6°F) Td
    Temperature Range -40~+90°C
    Temperature Accuracy ±0.1°C (@23°C)
    Long-term Temperature Stability <0.1°C/year
    Long-term Humidity Stability <1%RH/year
    Digital Output Standard industrial interface RS485
    Analog Output Dew point + temperature (humidity for reference only) 4~20mA/0-5V/0-10V (optional)
    Pressure Resistance 16 bar
    Baud Rate 1200/2400/4800/9600/19200/115200 configurable, default 9600 bps
    Transmitter Operating Temperature -20°C~+60°C, 0%RH~95%RH, non-condensing
    Sampling Frequency Fastest 1s responses, others configurable per PLC settings
    Certification CE certified

    PDF computingDew Point Transmitter User Manual

    Application

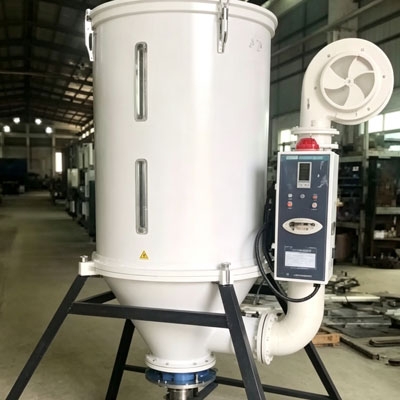

    dew point transmitter for compressed air

    Compressed Air

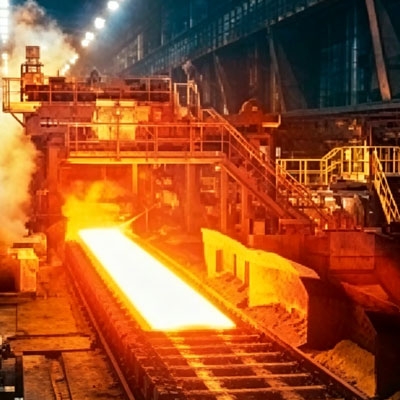

    dew point transmitter for metal smelting

    Metal Smelting

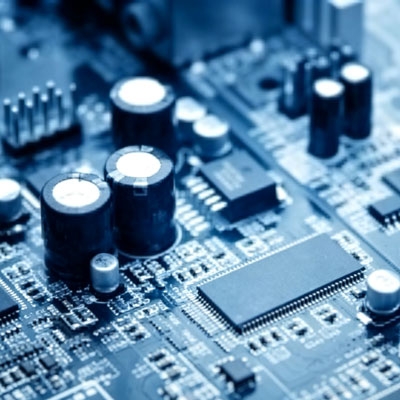

    dew point transmitter for semiconductor manufacturing

    Semiconductor Manufacturing

    FAQ
    ❯

    Yes, it is built for harsh environments, supporting a high pressure resistance of up to 16 bar and withstanding extreme process temperatures up to 150°C.

    ❯

    It outputs RS485 digital signals and selectable 4-20mA/0-5V/0-10V analog signals simultaneously, enabling seamless control system integration with a fast 1-second response time.

    ❯

    No, the smart heating function activates via the screen to protect the sensor in high humidity and automatically turns off after 10 minutes, eliminating the need for manual monitoring.
