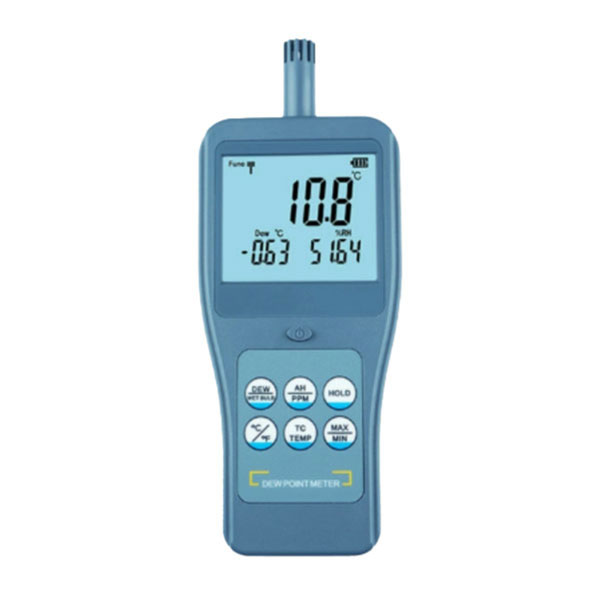

    Thermocouple Dew Point Sensor, -45~120°C, IP55

    1 review(s) | Add your review
    SKU: SUCH-DPS-RTM2612
    $776.31
    ● Resolution: 0.01°C ● Dew point range: -45~120°C ● Parameters: 7 parameters measurement ● Unit conversion: One-click °C/°F conversion
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The SUCH portable thermocouple dew point sensor is designed for accurate temperature, humidity, dew point, and surface temperature measurement. It supports dew point measurement from -45 to 120°C, surface temperature measurement up to 200°C with a K-type thermocouple probe, and provides ±0.1°C accuracy with 0.01°C resolution. Featuring a large LCD display, MAX/MIN recording, data hold, and auto power-off functions, it is ideal for laboratory, HVAC, storage, meteorological, and industrial applications.

    Feature

    • Large LCD Display: Features a clear LCD screen with switchable backlight for easy reading in various lighting conditions.
    • High Accuracy & Resolution: Provides 0.01°C resolution and stable measurement performance for precise environmental monitoring.
    • K-Type Thermocouple Probe: Equipped with a standard K-type probe for accurate surface temperature measurement up to 200°C.
    • Convenient Data Functions: Includes MAX/MIN recording, data hold, °C/°F switching, low battery indication, and 10-minute auto power-off for efficient operation.
    • Multi-Parameter Measurement: Supports 7 measurement functions, including temperature, humidity, dew point, wet bulb temperature, surface temperature, absolute humidity, and PPMv.

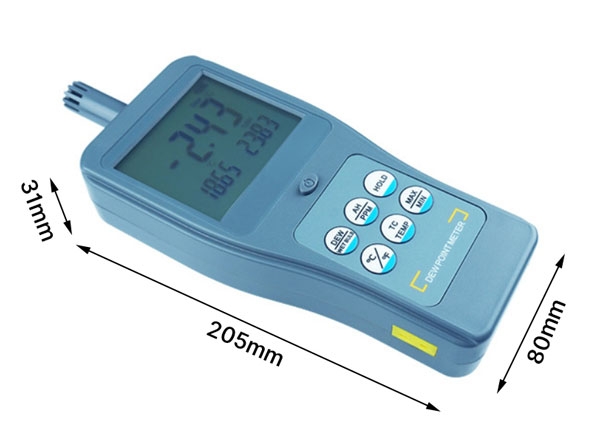

    Dimension (Unit: mm)

    thermocouple dew point sensor dimension

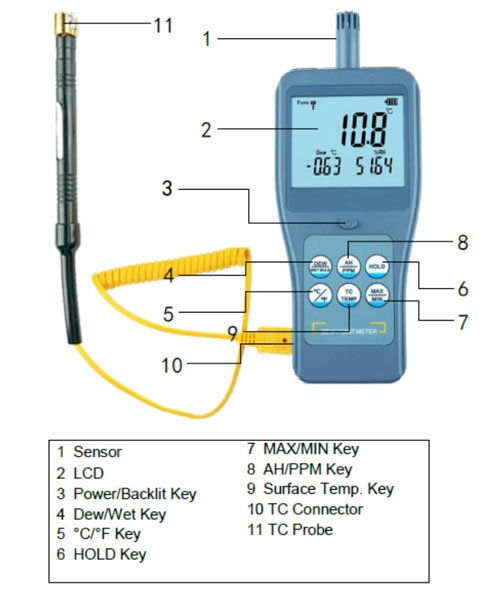

    Details

    thermocouple dew point sensor detail

    Specs
    Display LCD display
    Dew Point Temperature Range -45 to 120°C
    Ambient Temperature Range -30 to 120°C (±0.1°C)
    Relative Humidity Range 0 to 100%RH (±1.5%RH)
    Wet Bulb Temperature Range -20 to 40°C
    Absolute Humidity Range 0 to 400g/m³
    PPMv Range 0 to 50000
    Surface Temperature Range -50 to 200°C
    Resolution 0.01°C (<100), 0.1°C (Others)
    Temperature Unit °C / °F
    Statistical Function Maximum / minimum value
    Auto Power Off 10 minutes without operation
    Operating Environment 0 to 50°C, 0 to 80%RH (Non-condensing)
    Storage Environment -10 to 60°C, 0 to 90%RH (Non-condensing)
    Response Time 5 s
    Protection Rating IP55
    Power Supply 4 × AAA batteries (Not included)
    Dimensions 205 × 80 × 31 mm
    Weight 189 g
    Certification CE certified

    PDF computingThermocouple Dew Point Sensor User Manual

    Application
    thermocouple dew point sensor for laboratory

    Laboratory

    thermocouple dew point sensor for hvac engineering

    HVAC Engineering

    thermocouple dew point sensor for gas monitoring

    Gas Monitoring

    FAQ
    ❯

    This is a seven-in-one multi-functional measuring instrument. It can simultaneously or switch between measuring: ambient temperature, relative humidity, dew point temperature, wet-bulb temperature, absolute humidity, PPMv (parts per million by volume), and surface temperature.

    ❯

    Yes. The instrument has a built-in intelligent power-saving chip that will automatically shut down after 10 minutes of inactivity. In addition, the screen backlight can be manually turned on or off to extend battery life.

    ❯

    It is widely applicable to fields requiring strict temperature and humidity control, such as laboratory research, painting and spraying, printing, high-precision electronic manufacturing, HVAC testing, meteorological monitoring, and warehousing and logistics.
