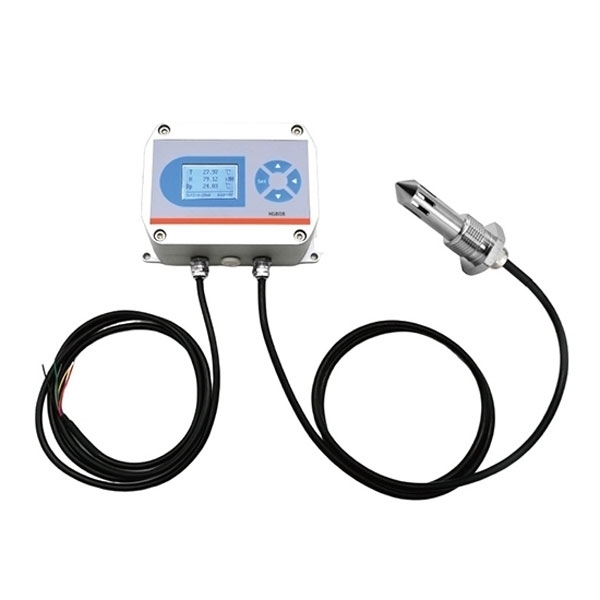

    Picture of High Temperature Dew Point Sensor, -20~100°C Dewpoint, 80~180°C Temp Picture of High Temperature Dew Point Sensor, -20~100°C Dewpoint, 80~180°C Temp Picture of High Temperature Dew Point Sensor, -20~100°C Dewpoint, 80~180°C Temp Picture of High Temperature Dew Point Sensor, -20~100°C Dewpoint, 80~180°C Temp Picture of High Temperature Dew Point Sensor, -20~100°C Dewpoint, 80~180°C Temp

    High Temperature Dew Point Sensor, -20~100°C Dewpoint, 80~180°C Temp

    1 review(s) | Add your review
    SKU: SUCH-DPS-HG808A
    $1,292.15
    ● Dew point range: -20~100°C ● Dew point accuracy: ±3°C Td ● Output: 4 parameters simultaneously ● High-temperature application: Up to 180°C
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The SUCH high temperature dew point sensor is designed for continuous moisture monitoring in demanding industrial environments, including thermal processing equipment and compressed air systems. It measures dew point from -20 to 100°C and operates reliably in ambient temperatures of 80 to 180°C, providing ±3°C Td accuracy and long-term stability with drift below 0.1°C/year. Built for harsh conditions, this dew point transmitter supports up to 16-bar pressure and offers RS485 and analog outputs for easy integration into industrial control systems.

    Feature

    • High Accuracy & Stability: Provides ±3°C Td accuracy with long-term stability of less than 0.1°C/year drift for reliable moisture measurement.
    • Anti-Condensation Function: Built-in heating design prevents probe condensation and maintains stable readings in high-humidity environments.
    • Dual Signal Output: Supports RS485 digital communication and analog outputs including 4-20mA, 0-5V, and 0-10V for easy system integration.
    • Multi-Parameter Display: Displays dew point, temperature, humidity, and PPM moisture data in real time.
    • High Pressure Resistance: Supports up to 16 bar pressure operation for compressed air and industrial gas systems.
    • High-Temperature Dew Point Monitoring: Measures -20 to 100°C dew point and operates reliably in 80 to 180°C ambient temperatures for high-temperature industrial applications.

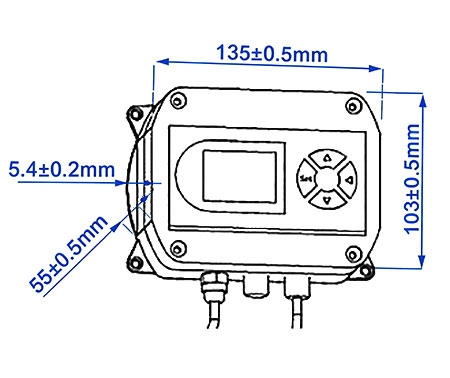

    Dimension (Unit: mm)

    high temperature dew point sensor dimension

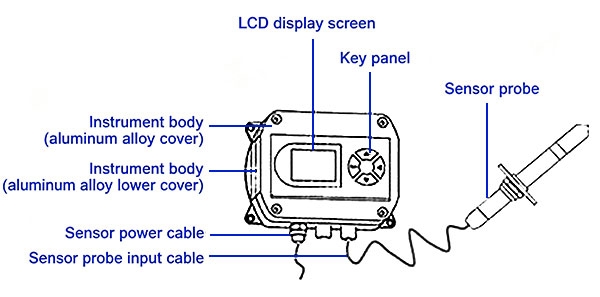

    Details

    high temperature dew point sensor details

    Probe Dimension (Unit: mm)

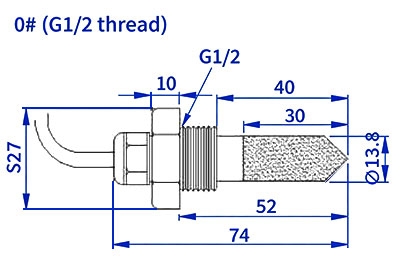

    high temperature dew point sensor probe 0 dimension

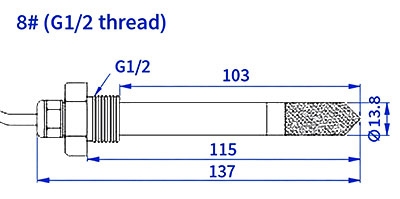

    high temperature dew point sensor probe 8 dimension

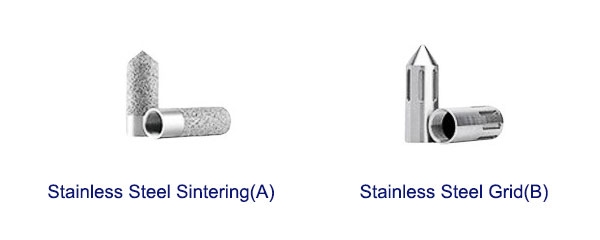

    Probe Protection Cover

    high temperature dew point sensor probe protection cover

    Specs
    Dew Point Range -20~+100°C
    Power 10~24VDC
    Dew Point Accuracy ±3°C(±5.4°F) Td
    Temperature Range -80~+180°C
    Temperature Accuracy ±0.3°C (@85°C)
    Long-term Temperature Stability <0.1°C/year
    Long-term Humidity Stability <1%RH/year
    Digital Output Standard industrial interface RS485
    Analog Output Dew point + temperature (humidity for reference only) 4~20mA/0-5V/0-10V (optional)
    Pressure Resistance 16 bar
    Baud Rate 1200/2400/4800/9600/19200/115200 configurable, default 9600 bps
    Transmitter Operating Temperature -20°C~+60°C, 0%RH~95%RH, non-condensing
    Sampling Frequency Fastest 1s responses, others configurable per PLC settings
    Certification CE certified

    PDF computingHigh Temperature Dew Point Sensor User Manual

    Application
    high temperature dew point sensor for lithium battery production

    Lithium Battery Production

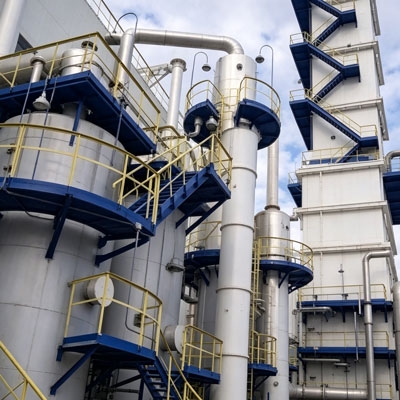

    high temperature dew point sensor for nitrogen production by air separation

    Nitrogen Production by Air Separation

    high temperature dew point sensor for petrochemical processes

    Petrochemical Processes

    FAQ
    ❯

    The probe (sensor) is specifically designed for high temperatures and can safely operate in environments from 80°C to 180°C (and can briefly withstand up to 200°C).

    ❯

    The product features an anti-condensation heating function. You can activate active heating directly through the display interface to prevent condensation droplets from adhering to the probe, ensuring a fast response time once humidity levels drop.

    ❯

    According to the documentation, it features anti-interference, corrosion resistance, and dust/pollution prevention. The probe is typically protected by a sintered metal filter cover to block large dust particles. However, in heavy oil mist environments, the filter cap should be cleaned regularly to prevent clogging.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Nicholas Freeman | 7/29/2026 9:21 AM
    high temperature dew point sensor is a good fit
    I needed a dew point sensor for equipment where normal models could not handle the working temperature. This high temperature dew point sensor fit the application without major changes. The readings are consistent, and the output works well with the existing controller. Nothing overly complicated, just a practical solution for moisture monitoring in demanding conditions.
