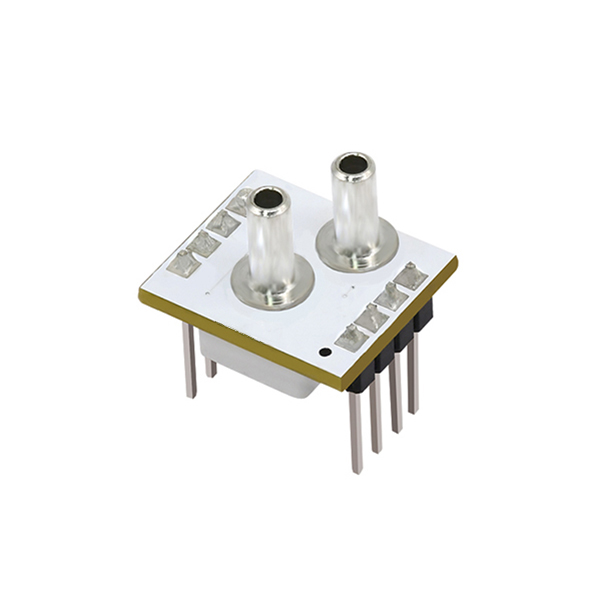

Differential Pressure Sensor Module, -1~1kPa, -10~10kPa

Accuracy differential pressure sensor module is a temperature-compensated silicon piezoresistive pressure sensor designed for measuring differential pressure in non-corrosive gases. It supports pressure ranges from -1 kPa to 1 kPa and -10 kPa to 10 kPa, with multi-point pressure calibration and temperature compensation. Featuring a pin-type connector and dual in-line package, the sensor can be easily integrated with standard PCB boards for convenient installation and replacement. SUCH differential pressure sensor module supports digital I2C communication and analog voltage output, providing flexible options for pressure data acquisition in different electronic systems.

Feature

• Differential Pressure Measurement: Measure pressure differences in non-corrosive gases.
• Temperature Compensation: Helps maintain stable measurement performance under changing temperature conditions.
• Multi-Point Calibration: Supports improved measurement consistency across the operating range.
• Dual Output: Provides digital I2C communication and analog voltage output.
• PCB Compatibility: Enables direct integration with standard PCB boards for convenient installation and replacement.

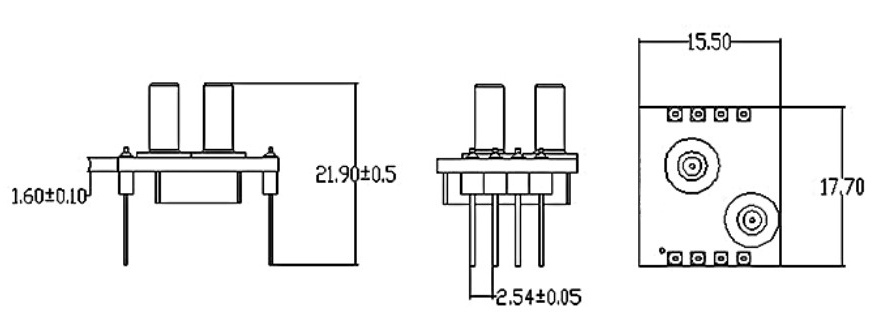

Dimension (Unit: mm)

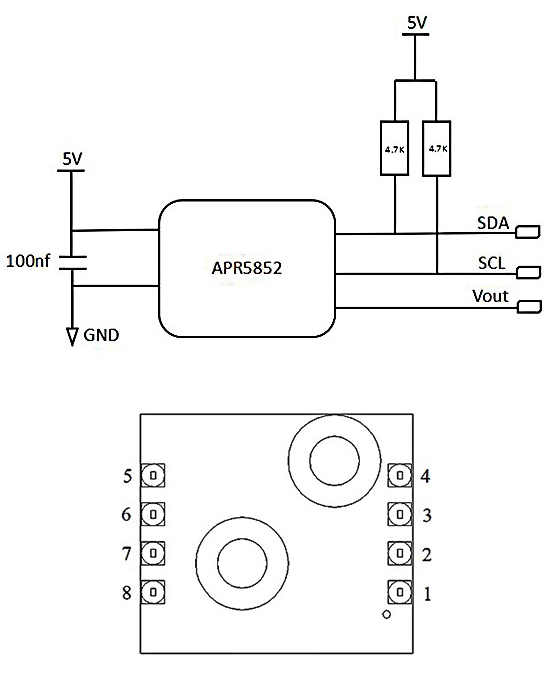

Electrical Connection & Pinout
