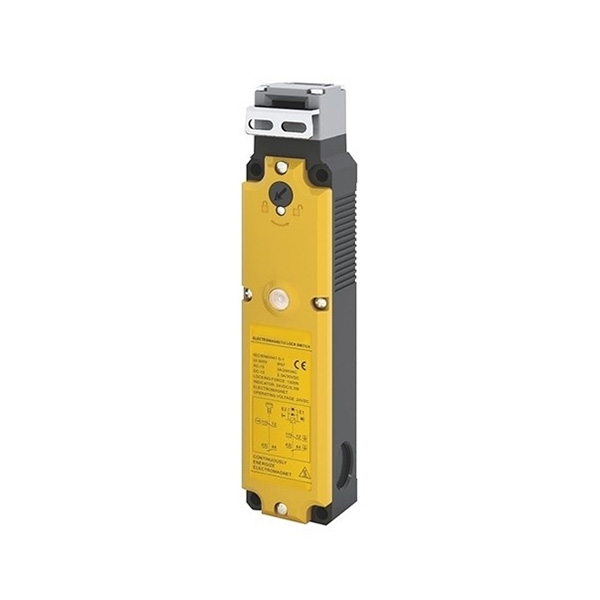

Safety Door Limit Switch, 24VDC, 1NO+1NC, IP67

SUCH safety door limit switch features a 1NO+1NC contact configuration and operates at 24VDC, with a durable PA66 flame-retardant housing and a green indicator light for clear status indication. Designed for reliable industrial safety applications, it offers IP67 protection. The door limit switch delivers low power consumption, stable performance, and easy operation, with a mechanical life of up to one million operations and multiple operating key options, making it suitable for various safety door monitoring and industrial door limit switch applications.

Feature

• The limit switch features a compact and lightweight design, making installation simple and convenient.
• Door limit switch is equipped with a locking function to enhance operational safety.
• It provides a cost-effective solution for safety door monitoring applications.
• It supports multiple operating key options, allowing flexible installation on protective doors.
• Different installation methods are available, making it suitable for a wide range of applications.

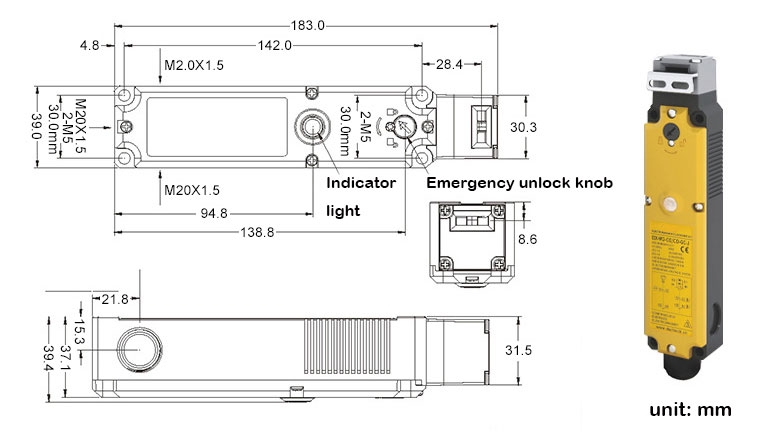

Door Limit Switch Dimension (Unit: mm)

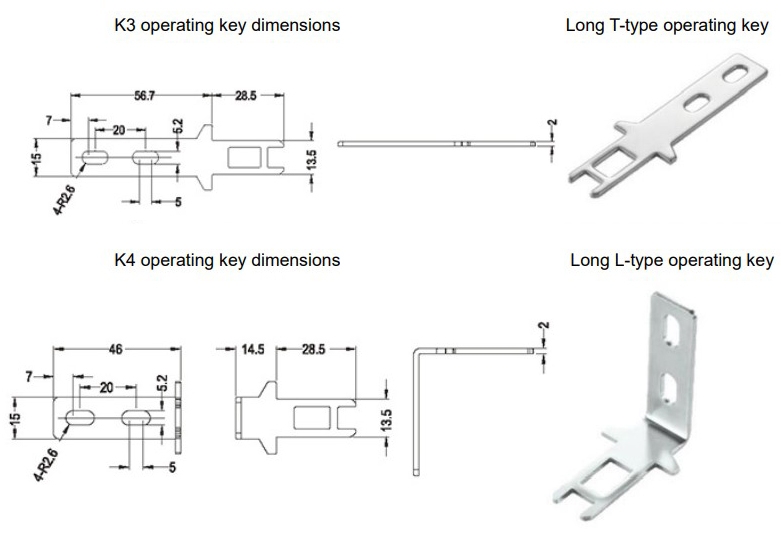

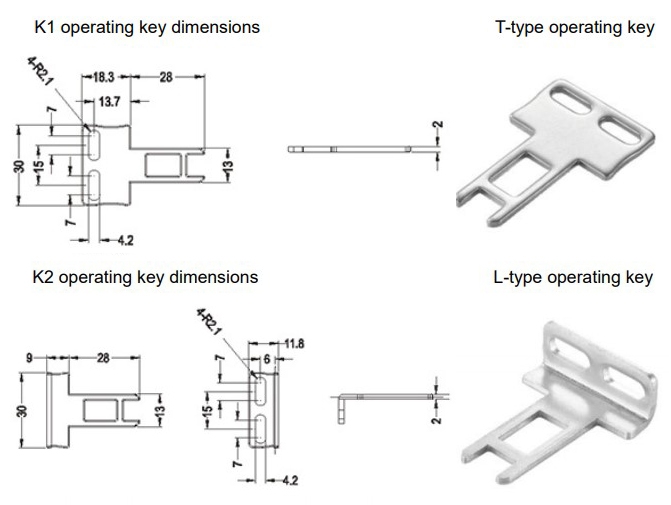

Operating Key Dimensions

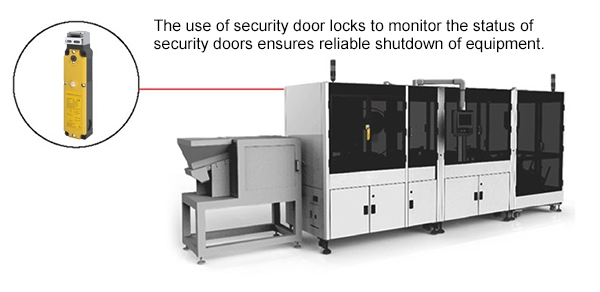

Detail

The safety limit switch is compact and lightweight, easy to install, with a variety of contact configurations, a locking function is the lowest cost solution, and a variety of operating keys are available for a wide range of applications as mounting options on protective doors.

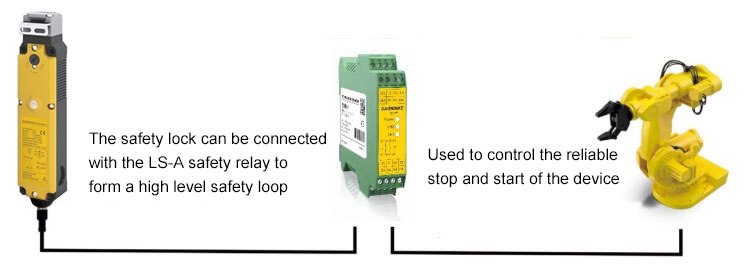

Connection
