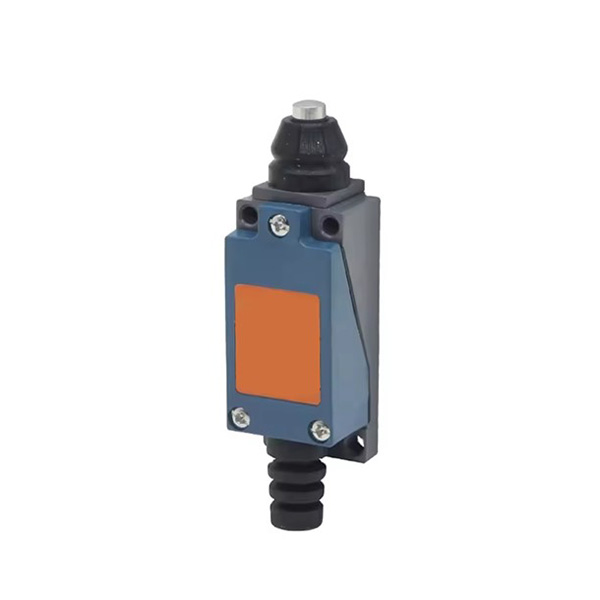

Precision Limit Switch with Adjustable Rod Lever/Push Button

Good price industrial travel limit switch is available with adjustable rod lever or push-button to meet different application requirements. SUCH precision limit switch has a rated current of 5A at 250VAC and features an IP65 protection rating, ensuring reliable performance in industrial environments. The travel limit switch has normally open (NO) and normally closed (NC) contacts. It is widely used in machinery, robotics, and automation systems for precise control and dependable operation, and can maintain stable performance in environments with ambient humidity up to 95% RH.

Feature

• Precision limit switch adopts a compact structure that saves installation space, improves efficiency, and extends service life.
• The open terminal design makes wiring easier and more convenient during installation.
• It features an IP65 protection rating with dustproof, waterproof, and oil-resistant performance for reliable operation in harsh environments.
• The dual-circuit structure improves the reliability and safety of electrical connections.
• The aluminum alloy body combined with a plastic housing provides high mechanical strength and durability.
• The travel limit switch is certified with CE and CCC and meets international quality and safety standards.

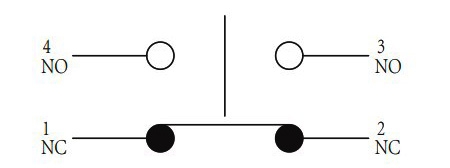

Contact Form

Actuators

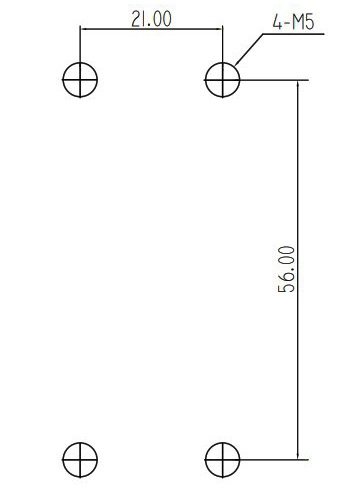

Mounting Holes Dimension (Unit: mm)

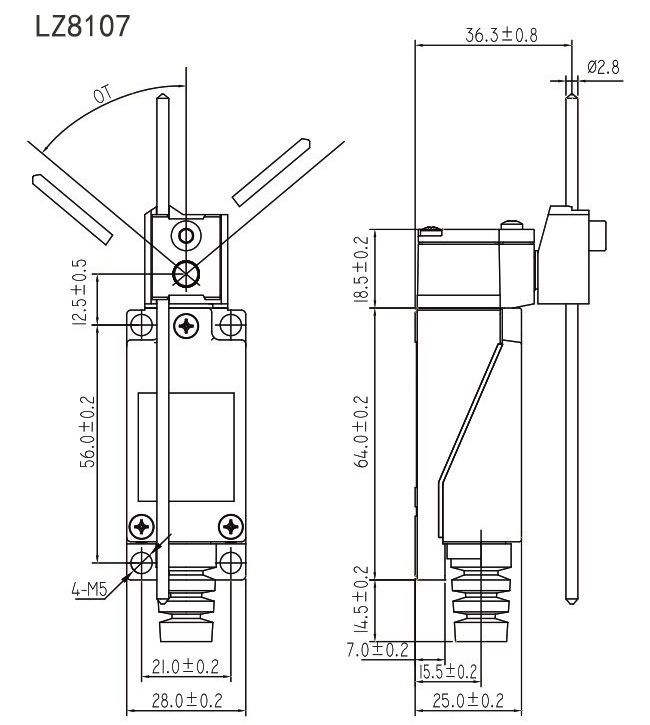

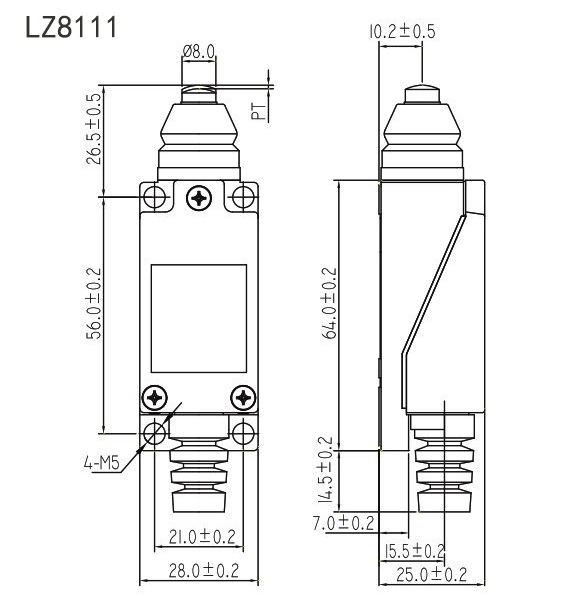

Specific Model Dimension (Unit: mm)
