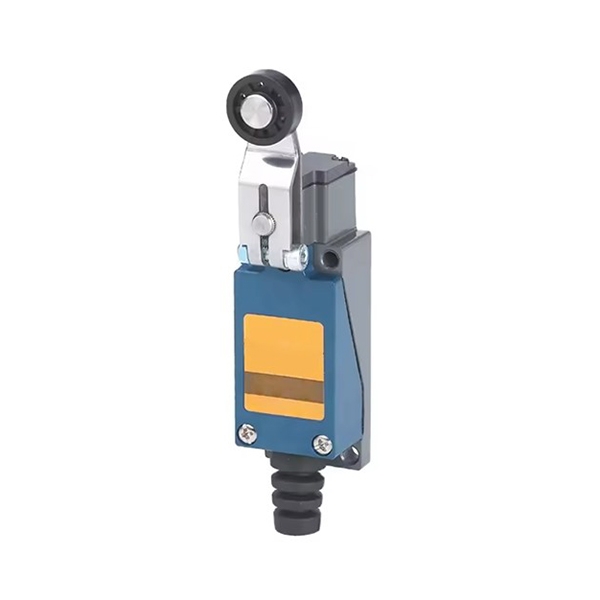

Miniature Limit Switch with Coil Spring/Roller Lever/Plunger

Miniature limit switch is rated at 5A, 250VAC and features an IP65 protection rating, ensuring reliable performance in dusty or slightly humid environments. It provides both Normally Open (NO) and Normally Closed (NC) contacts for flexible circuit design. Coil spring, roller lever, and plunger actuator options are available to meet different application requirements. Suitable for mechanical equipment, robotics, and industrial automation systems, SUCH miniature limit switch operates reliably within an ambient temperature range of -25℃ to +85℃.

Feature

• Compact structure saves installation space, improves efficiency, and helps extend service life.
• Open terminal design allows more convenient and efficient wiring.
• IP65 protection level with dustproof, waterproof, and oil-resistant structure ensures reliable operation in harsh environments.
• Dual-circuit design improves the reliability and safety of electrical connections.
• Aluminum alloy body with a plastic shell provides high mechanical strength and durability.
• CE and CCC certified, meeting international quality and safety standards.

Contact Form

Actuators

Mounting Holes Dimension (Unit: mm)

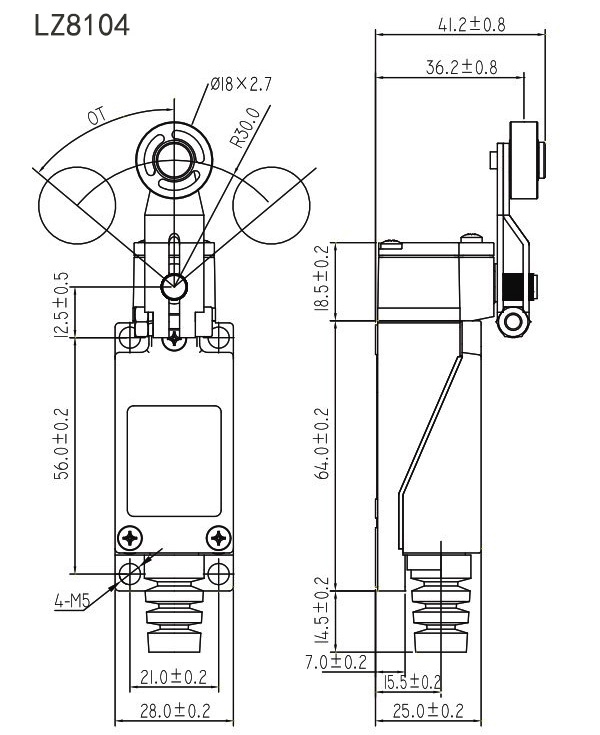

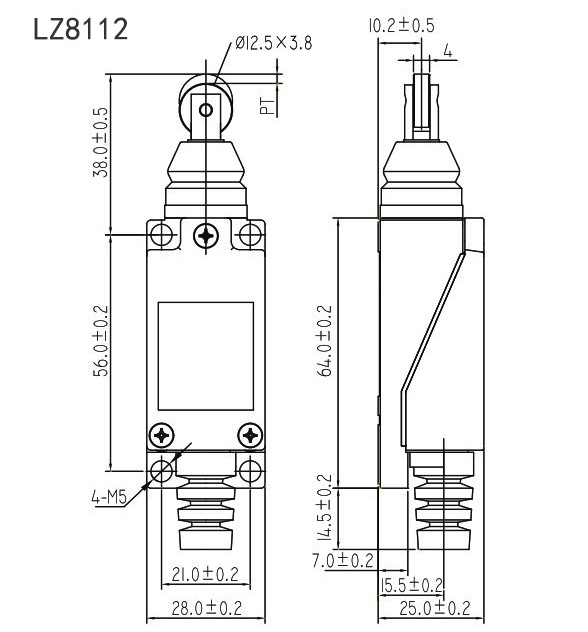

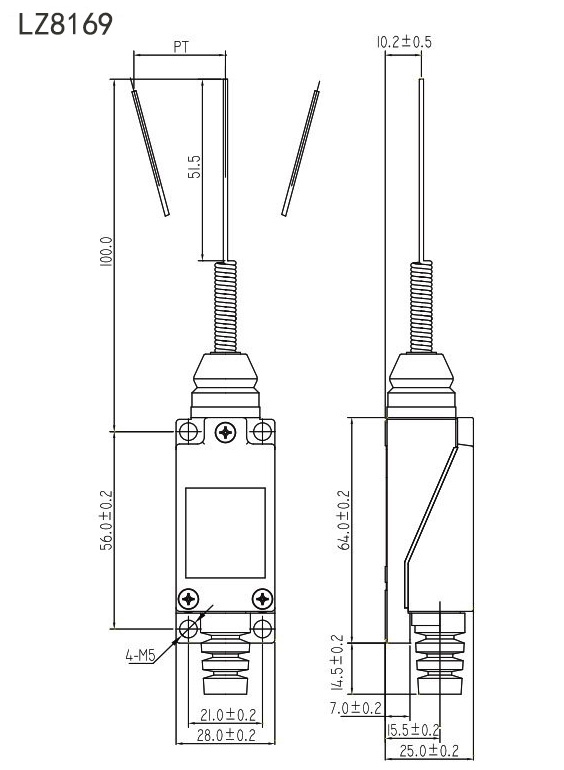

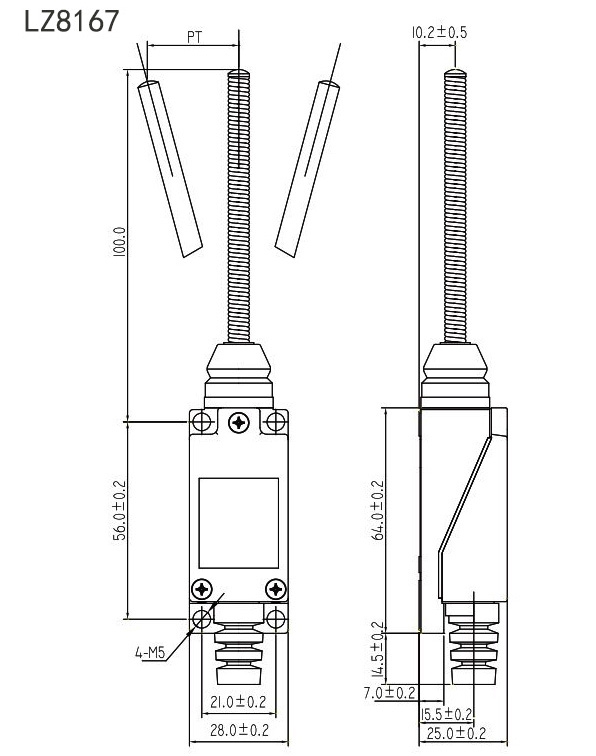

Specific Model Dimension (Unit: mm)
