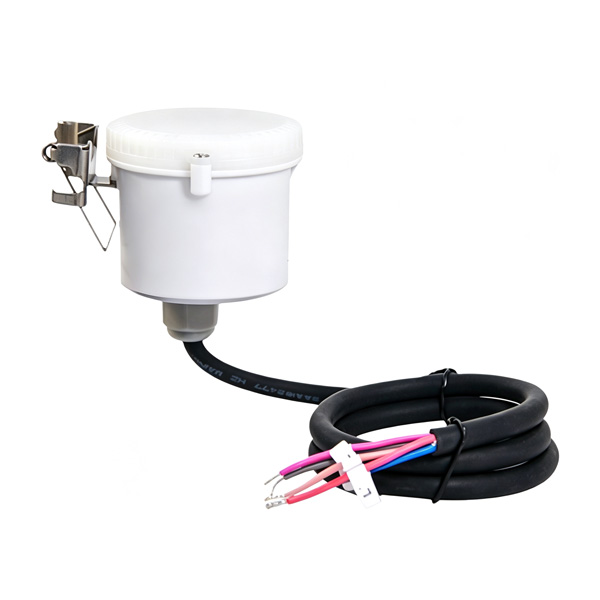

Adjustable Long Range Microwave Sensor, IP65

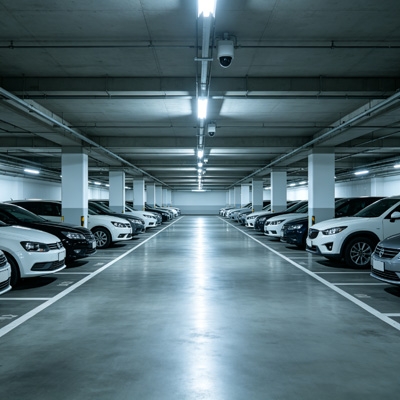

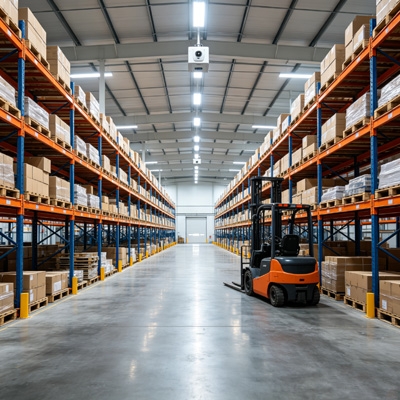

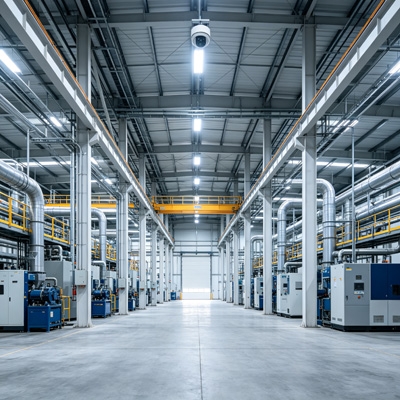

The SUCH long range microwave sensor is a 5.8 GHz microwave presence sensor designed for high-bay lighting applications. It supports up to 15 m installation height, with 150° detection angle for wall mounting and 360° detection angle for ceiling mounting. Suitable for warehouses, industrial facilities, high-bay areas, and parking structures, it integrates 1-10V dimming control, adjustable sensitivity, and configurable delay settings for flexible energy-saving lighting control.

Feature

• 15 m max installation height – supports high-bay lighting applications including warehouses, industrial facilities, and parking areas
• 150°/360° detection angle – supports flexible wall mounting and ceiling mounting layouts
• 5.8 GHz ±75 MHz ISM-band microwave sensing – provides reliable detection for enclosed lighting fixtures and indoor applications
• Switchable HS/LS sensitivity modes – helps reduce false triggering caused by reflections from metal fixtures, glass, or concrete walls
• 1-10V dimming output with adjustable dimming ratio – supports standard 1-10V dimmable drivers for energy-saving lighting control
• Remote-adjustable sensitivity, delay time, and hold time – enables on-site parameter configuration without rewiring
• 800W capacitive and 1200W resistive load capacity – supports various LED drivers and lighting systems
• IP65 protection and -35°C~55°C operating temperature – suitable for indoor industrial and commercial lighting applications

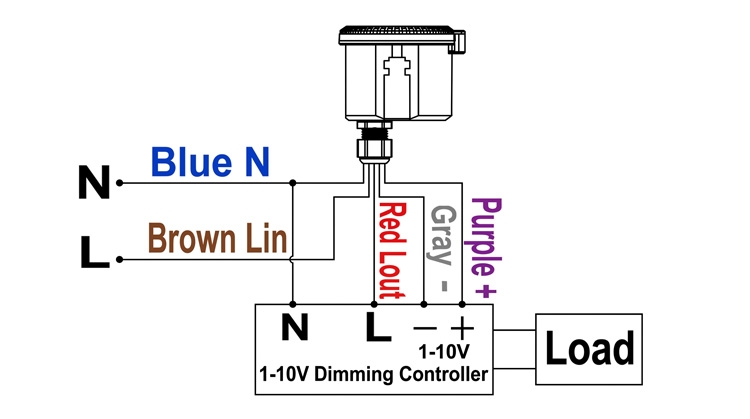

Wiring

Notes:

• Only one load should be connected to this sensor. Connecting multiple loads may damage the sensor.
• Maximum tightening torque: 2.5 Nm.
• Switching the power ON/OFF three times within 3 seconds activates constant ON mode. Restart the power supply to return to sensor mode.

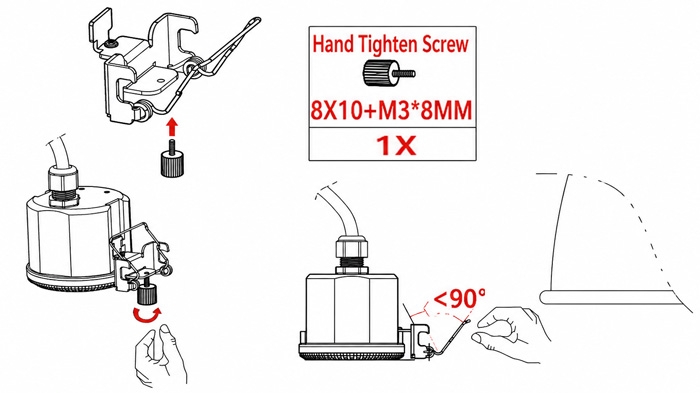

Installation

Detection Range

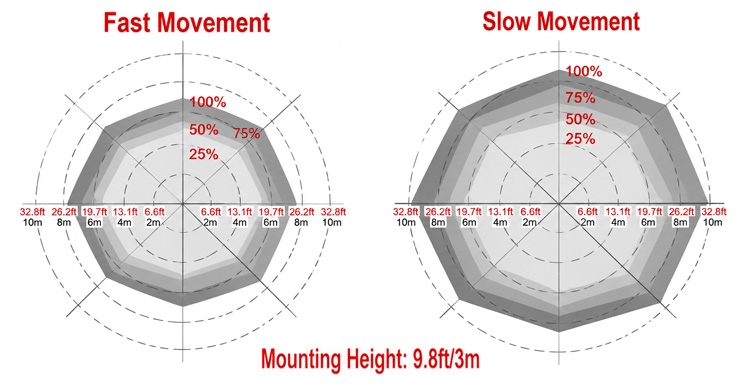

Fig1: Ceiling Mount

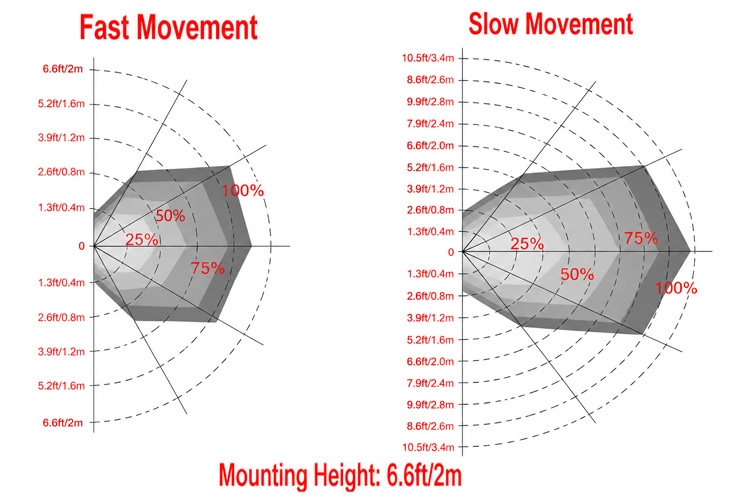

Fig2: Wall Mount

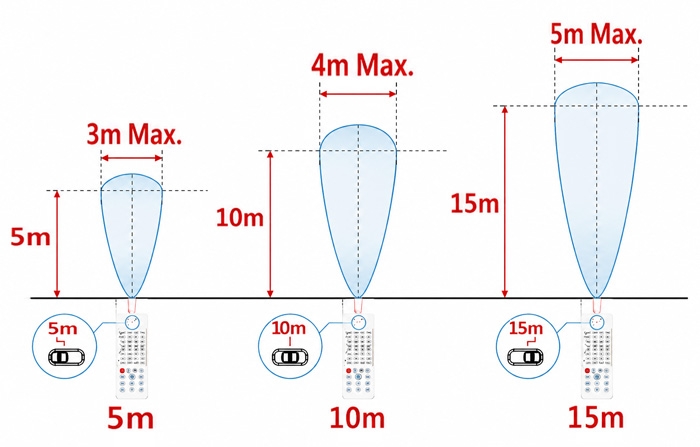

Remote Range
