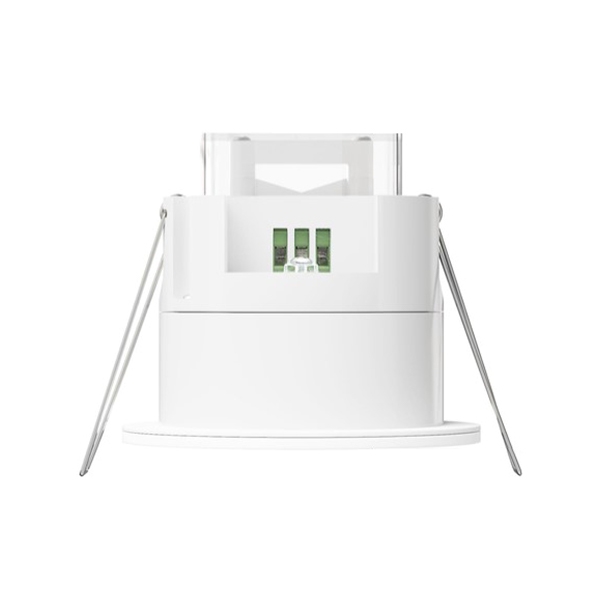

Recessed Microwave Presence Sensor, 5m, AC 100-240V

The SUCH recessed microwave presence sensor is a ceiling-mounted occupancy sensor designed for automatic lighting control based on real-time human presence detection. Designed to fit a 65mm ceiling cutout, it operates on AC 100-240V and provides 360° detection coverage with a maximum sensing range of 5m. Using microwave radar sensing, it is designed to detect subtle body movements and breathing-related micro-motion, helping maintain lighting operation when occupants remain seated and still. With adjustable ambient light sensitivity (3-2000 Lux) and time delay settings (10 seconds to 15 minutes), it is commonly used in offices, corridors, stairwells, restrooms, garages, meeting rooms, and other indoor lighting automation applications.

Feature

• 360° detection with a 5m sensing range provides wide-area monitoring from a single ceiling installation point, reducing blind spots and simplifying sensor placement.
• Microwave radar sensing detects subtle body movements and breathing-related micro-motion, supporting reliable presence detection even when occupants have limited movement, such as sitting at a desk.
• Ambient light threshold adjustable from 3 to 2000 Lux allows the sensor to be set for after-dark operation only, or for continuous operation regardless of daylight, depending on the installation.
• Time delay adjustable from 10 seconds to 15 minutes (±2 min) allows load hold time to be matched to how a space is used, from brief corridor transit to longer-occupancy rooms.
• Rated load up to 800W/1200W at 100V/220V (200W/600W for inductive loads) supports lighting loads within the specified power ratings.
• 65mm cutout with spring-clip mounting allows recessed installation into ceiling openings without additional surface-mounted housing.
• Operating range of -20 to +40℃ and up to 93%RH supports installation in stairwells, garages, and other indoor spaces with varying environmental conditions.
• Standby power draw of approximately 0.5W keeps idle energy consumption low while the sensor remains active.

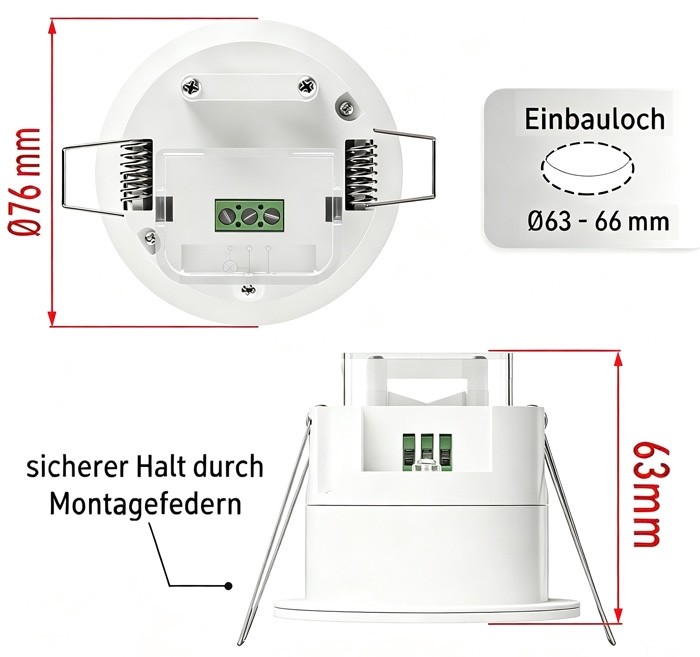

Dimension (Unit:mm)

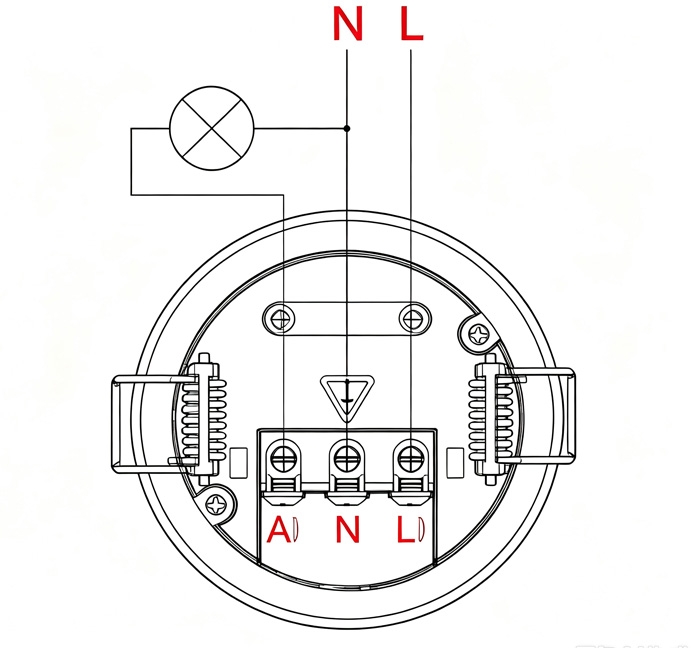

Wiring

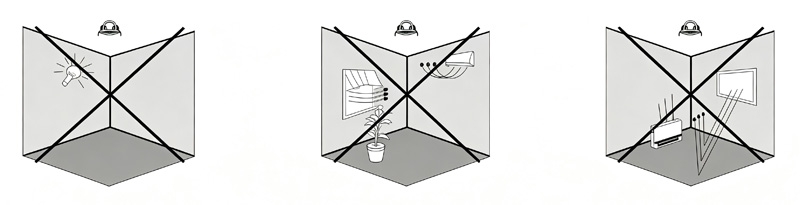

Installation Tips

To ensure reliable detection performance, avoid installing the sensor near reflective surfaces, heat sources, or objects that may move with airflow.

• Avoid mounting near mirrors or other highly reflective surfaces.
• Keep away from heat sources such as air vents, air conditioners, and lights.
• Avoid aiming the sensor toward moving objects such as curtains or tall plants.

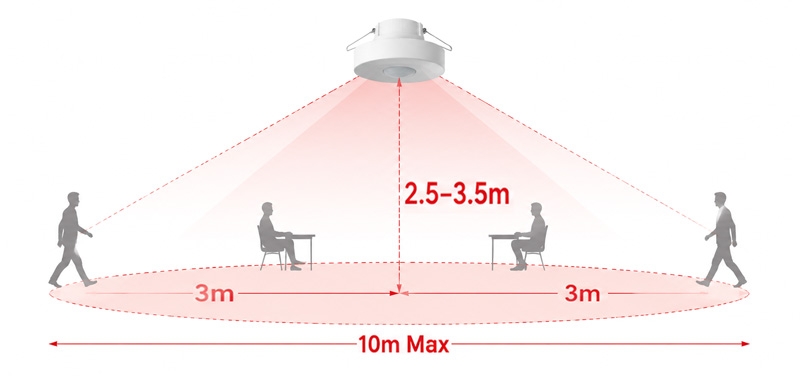

Detection
