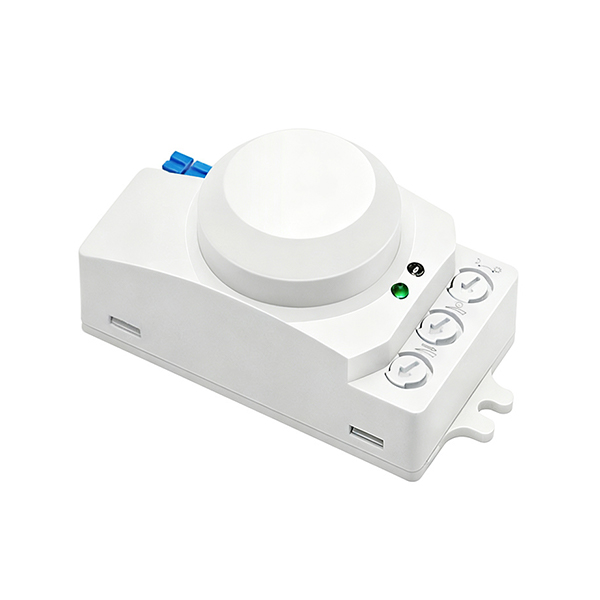

Microwave Radar Sensor, 5.8GHz, 2-8m

The SUCH microwave radar sensor is a compact 5.8GHz motion detection module designed for intelligent lighting control and energy-saving applications. With 360° detection coverage and an adjustable detection range of 2-8m, it provides reliable motion sensing for indoor spaces such as corridors, offices, garages, and commercial lighting systems. Featuring adjustable delay time and light sensitivity, this sensor allows flexible configuration for different installation environments. The compact design with flame-retardant ABS housing ensures stable performance and easy integration into LED lighting solutions.

Feature

• 5.8GHz ISM band technology – Provides stable microwave sensing performance with high sensitivity for motion detection applications
• 360° detection angle – Covers a wide sensing area without blind spots, suitable for ceiling-mounted lighting systems
• 2-8m adjustable detection range – Allows users to set the sensing distance according to different installation requirements
• Adjustable delay time 8s-10min – Enables flexible control of light switch-off timing after motion detection stops
• Adjustable light sensitivity 2-2000LUX – Supports daytime or nighttime operation settings based on ambient light conditions
• Wide voltage input AC100-240V – Compatible with various LED and lighting control systems with up to 300W LED load
• Flame-retardant ABS housing – Improves safety and durability with resistance to deformation and oxidation

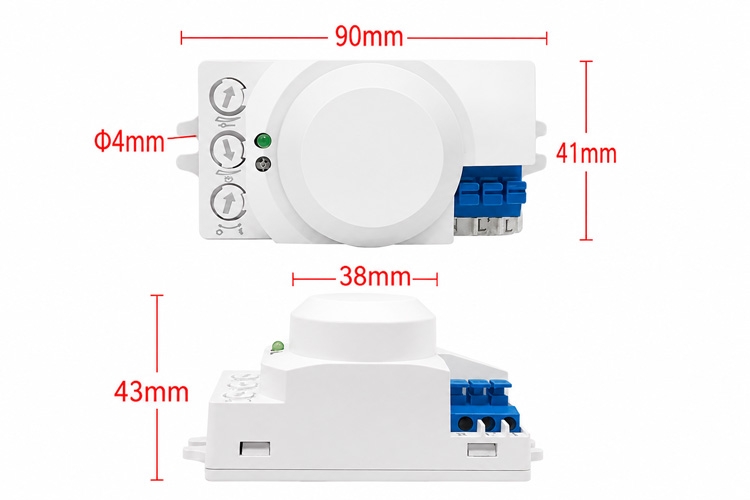

Dimension (Unit:mm)

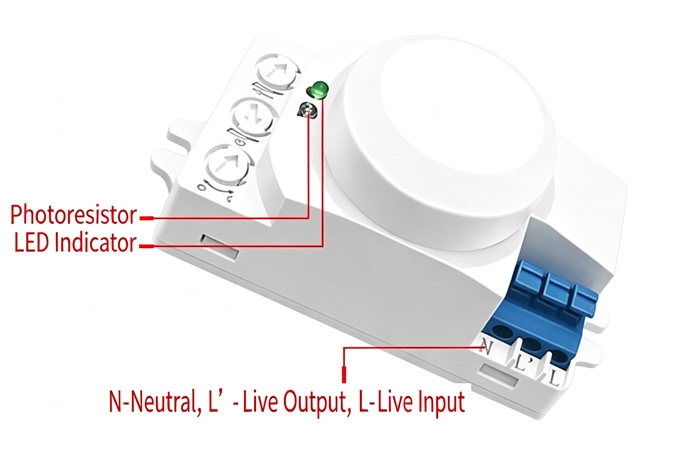

Details

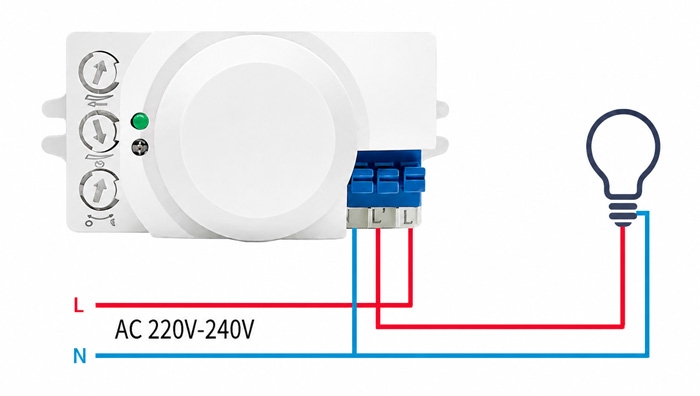

Wiring

Installation

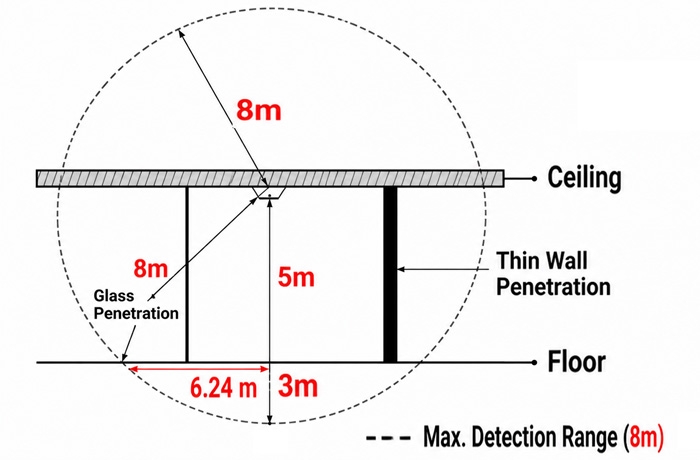

Fig1: Ceiling Mounting

Note: Ceiling-mounted microwave radar sensors enable wide-area motion detection for indoor lighting automation. Featuring 360° sensing coverage and up to 8m detection distance, they are ideal for corridors, stairways, garages, and commercial spaces.

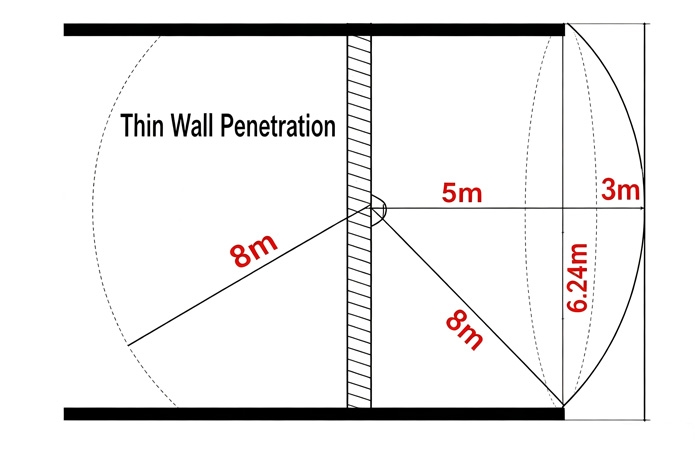

Fig2: Side Mounting

Note: The 5.8GHz microwave radar sensor supports flexible side mounting and can detect motion through thin non-metallic materials. It enables hidden installation behind ceilings, panels, and other indoor structures without affecting detection performance.

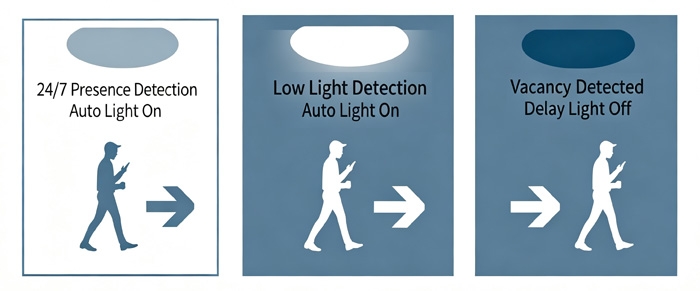

Detection

Note: The microwave radar sensor detects human motion and automatically controls connected lights based on occupancy conditions. Adjustable delay time and light sensitivity settings allow flexible configuration while reducing unnecessary energy consumption.
