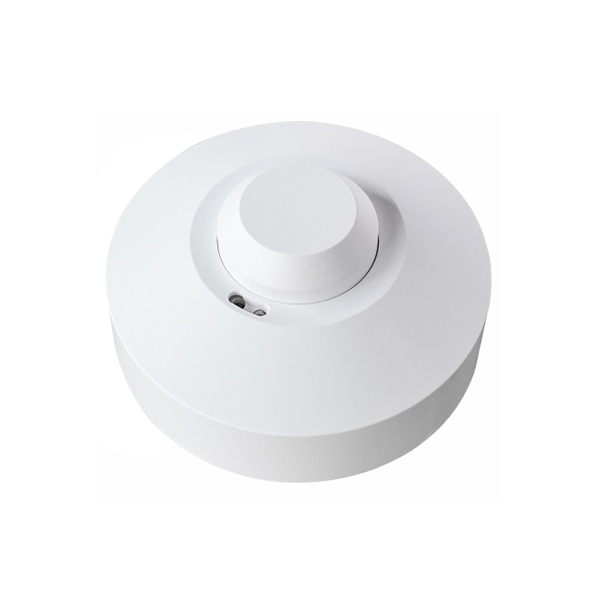

Ceiling Mount Microwave Movement Sensor, 5.8GHz, 12-24V DC

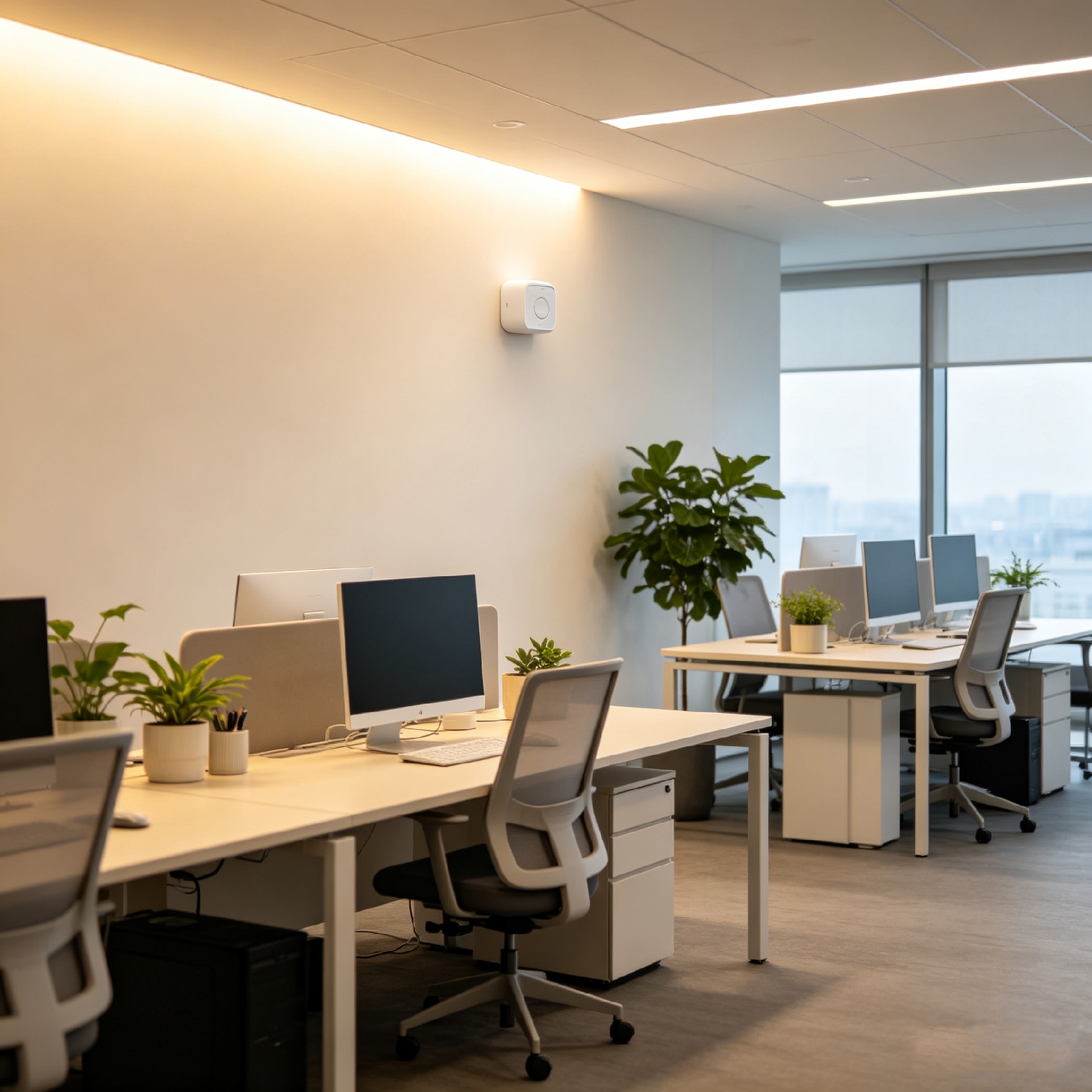

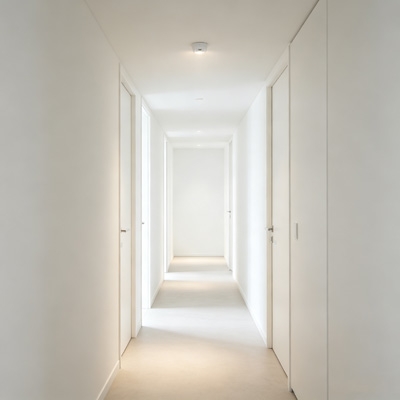

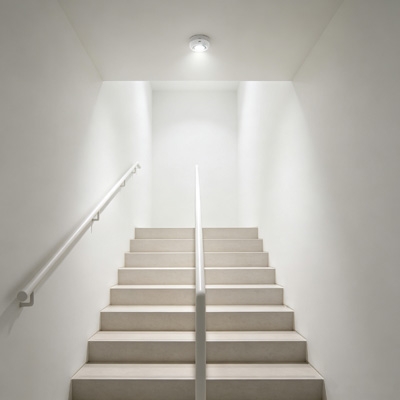

The SUCH ceiling mount microwave movement sensor is a 5.8GHz motion detection device used for automatic lighting and load control in ceiling-mounted applications. With a 2-10 meter detection range, 360° coverage, and a transmission power below 0.2mW, the sensor maintains stable performance across a wide operating temperature range from -35°C to +80°C. Because microwave sensing can penetrate non-metallic materials, the sensor can be installed behind glass or plastic covers without affecting normal detection. This makes it suitable for corridors, stairwells, offices, and other ceiling-mounted lighting control applications.

Feature

• 360° Detection Angle – Full-area coverage from a single ceiling-mounted unit.
• 5.8GHz Microwave Frequency (±75MHz) – Detects through non-metallic materials such as glass and plastic.
• 2-10m Adjustable Detection Range – Suitable for rooms and corridors of varying size, up to 3.5m mounting height.
• 12-24V DC Operating Voltage – Compatible with standard low-voltage lighting circuits.
• <0.2mW Transmission Power – Low microwave output for stable, consistent detection.
• -35°C to +80°C Operating Temperature – Suitable for indoor environments with temperature variation.
• 10-320LUX Light Control Threshold – Enables daylight sensing for automatic load activation.
• 5 Second-5 Minute Delay Time, 10A Dry-Contact Relay – Adjustable timing for flexible load switching.

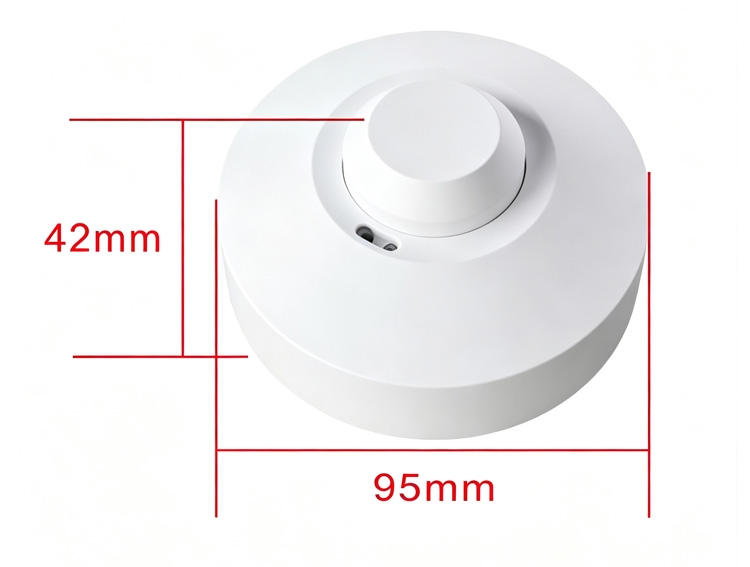

Dimension (Unit:mm)

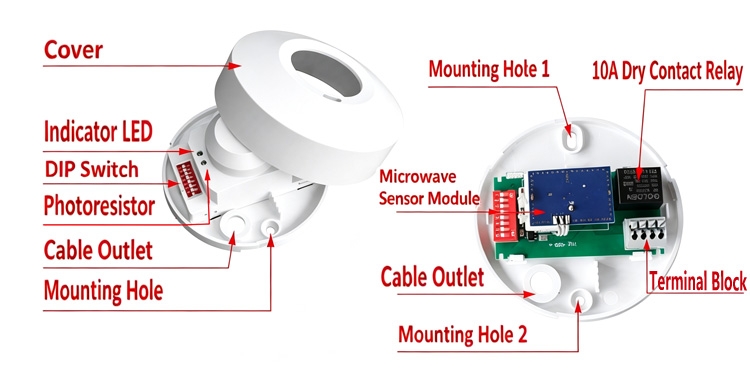

Details

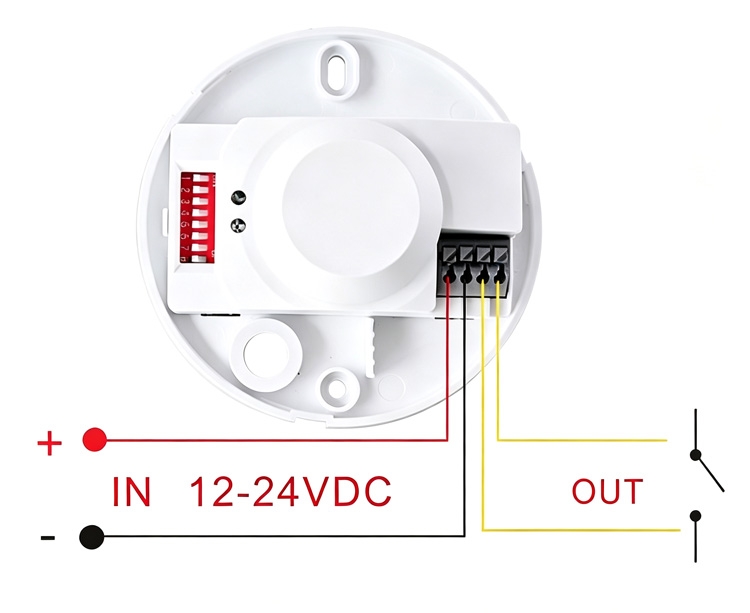

Wiring

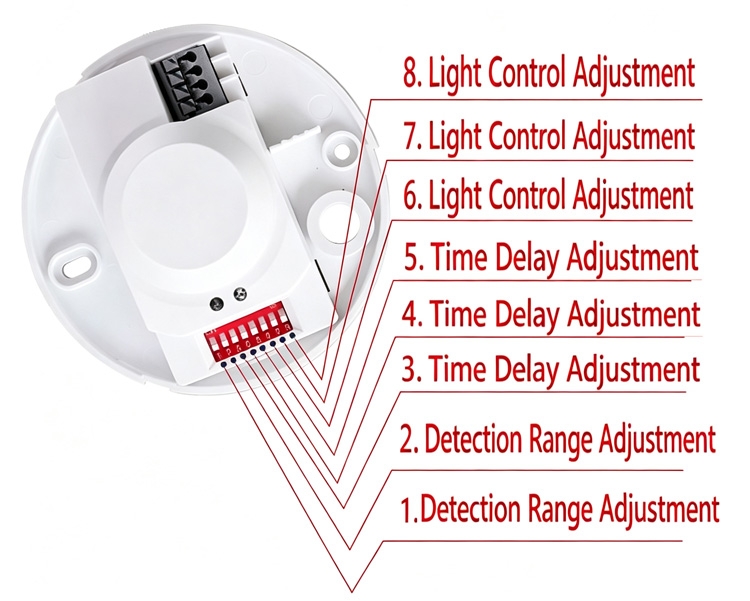

DIP Switch Settings

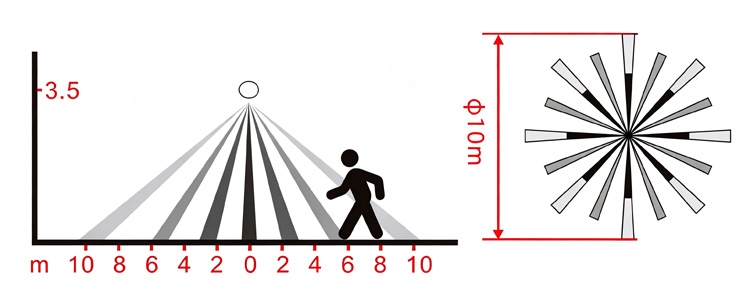

Detection

Note: Detection range shown is based on standard test conditions and may vary with installation environment, human size, angle, and movement speed. Actual range should be verified on-site.
