    Non-Contact Magnetic Incremental Linear Encoder, RS422

    0 review(s) | Add your review
    SKU: SUCH-LE-LMD
    $124.69
    ● Resolution 1μm ● Supply voltage 5V ● Output form RS422 ● Magnetic spacing 2+2mm
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

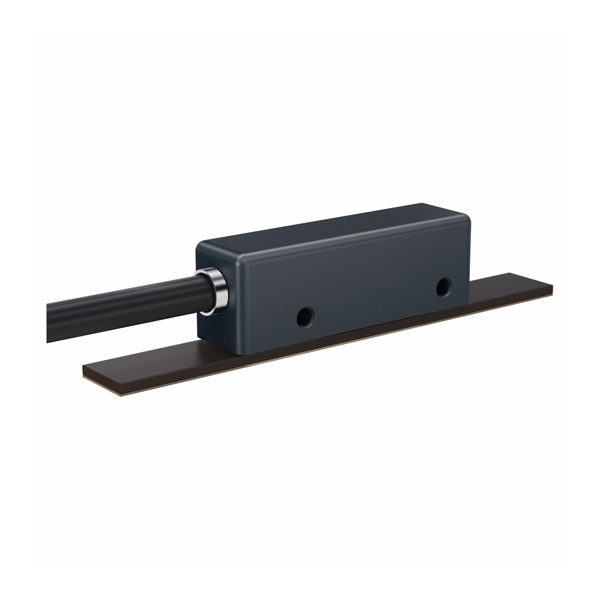

    The economical and practical non-contact magnetic incremental linear encoder is a sensor that uses the magnetic effect of the magnetic scale and magnetic resistance to measure, and is mainly used in various automated motion control scenarios. The SUCH incremental linear encoder uses non-contact measurement, has a resolution of 1μm, a repeatability of +1μm, and an output frequency of 2000 kHz. Its compact size and IP67 protection rating make it suitable for most industrial environments.

    Features

    • High resolution and high repeatability. Compact size, suitable for small installation spaces.
    • Incremental linear encoders feature intelligent error indicator lights to display the encoder's operating status.
    • Non-contact measurement, dust-resistant, wear-resistant, impact-resistant, vibration-resistant, and resistant to magnetic field interference.
    • Incremental magnetic encoders offer high protection against oil, dust, lubricants, and other contaminants.

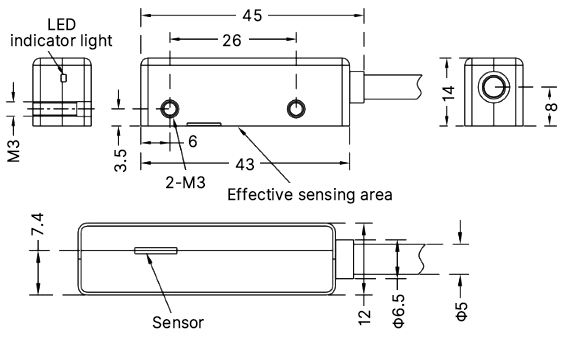

    Dimension (Unit:mm)

    Magnetic incremental encoder size

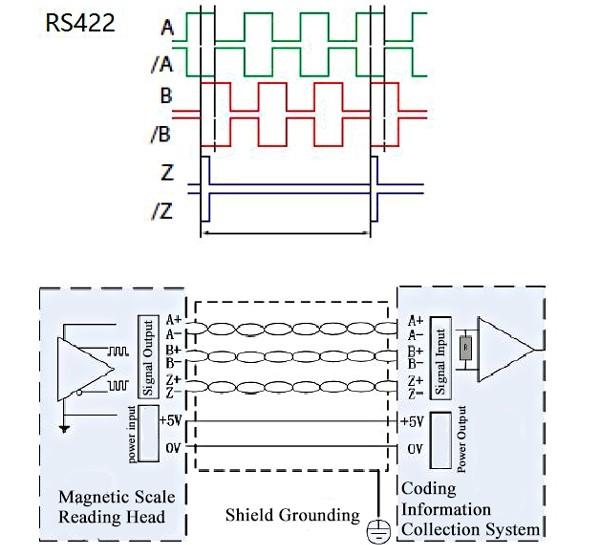

    Signal Output Diagram

    Magnetic incremental encoder output signal

    Specs
    Supply Voltage 5V +/-5%
    Magnetic Spacing 2+2mm
    Resolution 1μm
    Repetition Accuracy +1μm
    Output Frequency 2000 KHz
    Speed 5m/s
    Cable 8-core shielded wire
    Wiring Method Direct lead output
    Output Form RS422
    LED Status Indication Red/Green
    Electric Current Less than 50 mA
    Protection Level IP67
    Operating Temperature -20℃~70℃
    Storage Temperature -20℃~80℃
    Customizable Parameters Resolution, Output Frequency, Counting Direction, Cable Length (≤ 15m)

    Note*: This encoder does not include a magnetic scale. If you want to purchase a magnetic scale, please contact us.

    Application
    Linear encoder for assembly line



    Assembly Line

    Linear encoder for escalator



    Escalator

    Linear encoder for lifting platform



    Lifting Platform

    FAQ
    ❯

    Signal errors may be caused by incorrect installation, excessive gap between the read head and scale, electromagnetic interference, or damaged cables.

    ❯

    Yes. With proper protection and sealing, magnetic incremental linear encoders can operate in outdoor environments with dust, moisture, and vibration.

    ❯

    To choose the right magnetic incremental linear encoder, consider the required resolution, measurement length, output signal type, and operating environment. You should also ensure the encoder is compatible with your controller interface and installation space. Selecting the correct specifications helps ensure accurate position measurement and reliable operation in your application.
