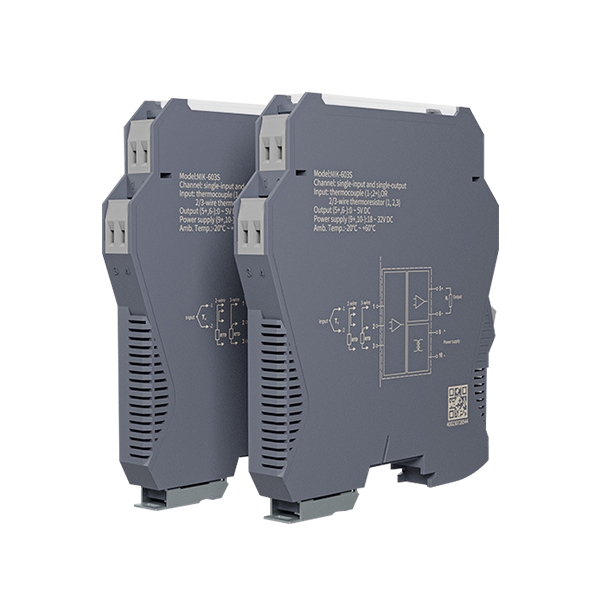

Signal Isolator, Temperature Input, K/B/S/PT100

Name: Signal Isolator, Temperature Input, K/B/S/PT100
Brand: Such.com
SKU: SUCH-SINIR-603S
Price: 110.58 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-SINIR-603S

$110.58

● K/E/J/N TC: ±0.3°C <300°C, ±0.1% ≥300°C ● S/B/T/R/WRe TC: ±0.5°C <500°C, ±0.1% ≥500°C ● Built-in cold junction compensation accuracy ±1°C ● Output temperature drift coefficient 40ppm per °C

Number of Channels *
Input Signal *
Output Signal *
Max Temp (High Output)
Min Temp (Low Output)

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Spec
Application
FAQ
Reviews

Overview

This analog isolator accepts thermocouple (K, E, S, B, J, T, R, N, WRe) and RTD (Pt100, Cu50, Cu100, BA1, BA2, 2/3-wire) inputs. It provides isolated output options: 4‑20mA, 0‑20mA, 0‑5V, 1‑5V, 0‑10V, with load capacity 550Ω for current and ≥1MΩ for voltage. Accuracy varies by type: thermocouples achieve ±0.1% FS or better, RTDs ±0.1% FS, with cold junction compensation ±1°C and 40ppm/°C drift. As a signal conditioner 4‑20mA, it supports single or dual outputs (≤0.7W or ≤1.3W), response time ≤0.5s, and 1500VAC isolation. Powered by 18‑32V DC, it includes DIN‑rail mounting, output ripple <5mVrms, and complies with IEC 61326‑1. Suitable for precise temperature signal conditioning in automation.

Feature

TC Accuracy: K/E/J/N ±0.3°C below 300°C / ±0.1% FS above; S/B/T/R/WRe ±0.5°C below 500°C / ±0.1% FS above.
Cold Junction Compensation: Built-in ±1°C CJC eliminates external probes and extra compensation leads.
Temperature Drift: ultra-low 40ppm/°C drift delivers double the stability of standard 100ppm units across wide ambient temperature swings.
RTD Lead Resistance: 3-wire RTD accepts up to 20Ω per lead, enabling ordinary copper wire runs of up to 100 meters.
Response Time: fast ≤0.5s response ensures real-time temperature control and reliable interlock triggering for critical processes.
Power Consumption: low power draw of 0.7W single or 1.3W dual output at 24V DC, with one input driving two isolated channels.

Dimension (Unit: mm)

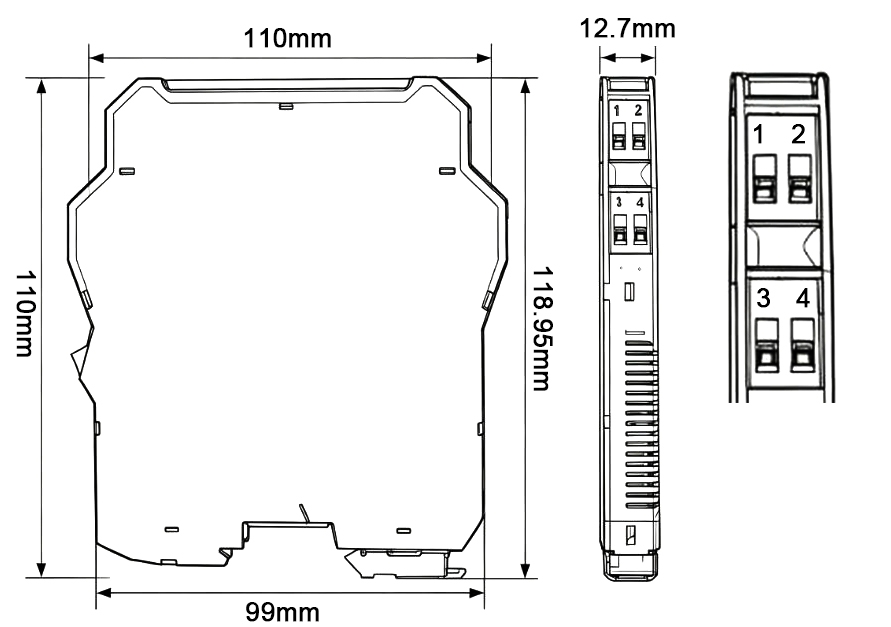

Dimensional outline drawing of the temperature-input signal isolator for thermocouple/RTD applications.

Wiring Diagram

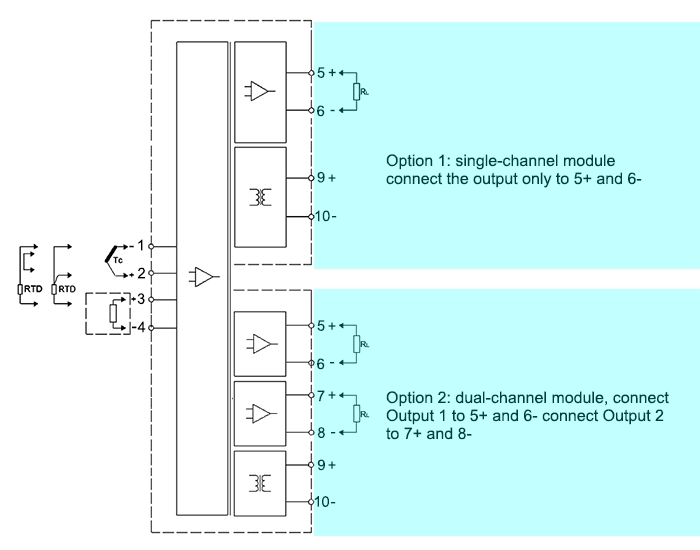

Wiring diagram of temperature signal isolator for 2-wire and 3-wire transmitter inputs, showing single and dual 4-20mA output channel configurations

Spec

Input Signal	K
	E
	S
	B
	J
	T
	R
	N
	WRe3-WRe25
	WRe5-WRe26
	Pt100
	Cu50
	Cu10
	Cu100
	BA1
	BA2
Output Signal	DC current: 4‑20 mA / 0‑20 mA
Output Signal	DC voltage: 1‑5 V / 0‑5 V / 0‑10 V
Number of Input & Output Channels	1 input channel & 1 output channel
Number of Input & Output Channels	1 input channel & 2 output channel
Isolation Transmission Accuracy	TC K/E/J/N etc: <300°C → ±0.3°C
	TC K/E/J/N etc: ≥300°C → ±0.1% F.S. (excluding cold junction compensation)
	TC S/B/T/R/WRe series: <500°C → ±0.5°C
	TC S/B/T/R/WRe series: ≥500°C → ±0.1% F.S. (excluding cold junction compensation)
	RTD Pt100/Cu100/Cu50/BA1/BA2 etc: <100°C → ±0.1°C
	RTD Pt100/Cu100/Cu50/BA1/BA2 etc: ≥100°C → ±0.1% F.S.
Load Capacity	For 0(4)mA-20mA: ≤550Ω
	For 0mA-10mA: ≤1.1kΩ
	For 0(1)V-5V: ≥1MΩ
	For 0V-10V: ≥2MΩ
Notes	Input type and range are determined at order, or can be user-programmed.
Notes	Single output or Dual output (determines power consumption)
Output Ripple	At 250Ω load: ≤5mVrms
Response Time	≤0.5s
Temperature Drift	40ppm/°C
Cold Junction Compensation Accuracy	±1°C (after 10 min warm-up)
Cold Junction Compensation Range	-20°C - +60°C
Lead Resistance for RTD Measurement	≤20Ω per lead
Full Load Power Consumption	Single output: ≤0.7W (at 24 VDC)
Full Load Power Consumption	Dual output: ≤1.3W (at 24 VDC)
Supply Voltage Range	18 VDC - 32 VDC (typical 24 VDC)
Dielectric Strength	≥2500 VAC (between input/output, input/power)
Dielectric Strength	≥1500 VAC (between output/power)
Insulation Resistance	≥100MΩ (between input/output/power)
Electromagnetic Compatibility	IEC61326-3
Dimension	12.7 × 110 × 118.9 mm
Certifications	CE Compliant

Application

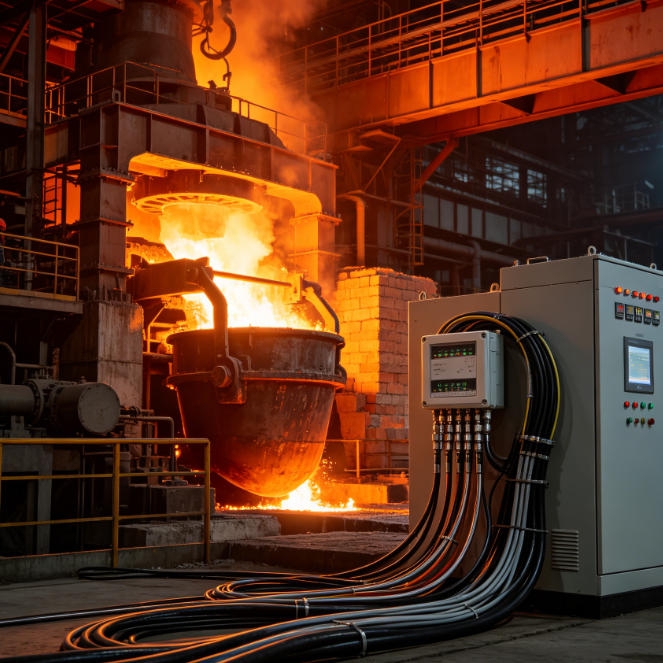

Steelmaking Furnace

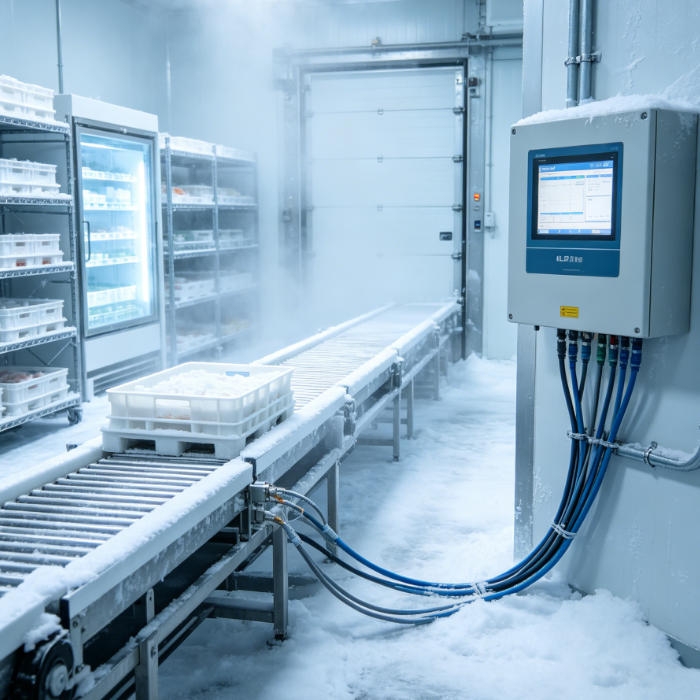

Cold Storage

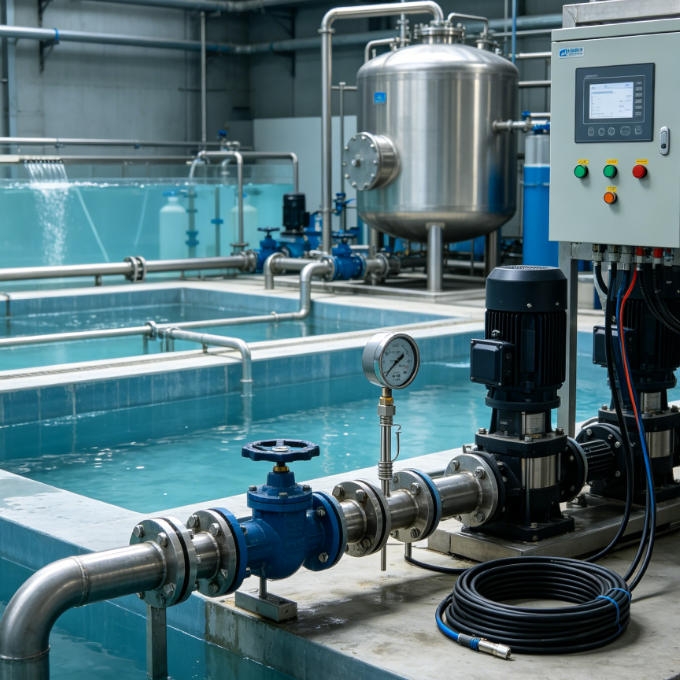

Wastewater Treatment

FAQ

Q1: What's the accuracy difference between thermocouple and RTD inputs? ❯

A: The accuracy is graded separately for each sensor type:

K/E/J/N thermocouple: <300℃ → ±0.3℃; ≥300℃ → ±0.1% F.S.
S/B/T/R/WRe thermocouple: <500℃ → ±0.5℃; ≥500℃ → ±0.1% F.S.
Pt100/Cu50/Cu100/BA1/BA2 RTD: <100℃ → ±0.1℃; ≥100℃ → ±0.1% F.S.

So you get tighter specs where it matters most – low‑temperature RTD measurements deliver 0.1℃ resolution.

Q2: Can I change the input type and range on-site if I order the wrong one? ❯

A: Yes, the MIK-603S is user-programmable. Input type and range can be configured via PC software (no factory return needed). This saves you from having to return the unit if project specs change mid‑stream, or if you accidentally specify the wrong configuration. Contact our support team for the software tool.

Q3: What's the power consumption? Can I pack multiple units on one DIN rail? ❯

A: Very low power draw – single output ≤0.7W, dual output ≤1.3W at 24V DC. You can mount multiple units side‑by‑side on a 35mm DIN rail without any overheating concerns – heat dissipation is minimal.
