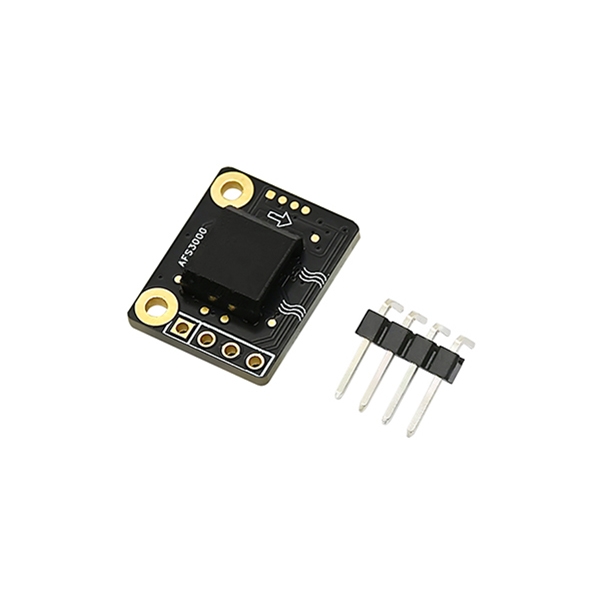

    Wind Speed Sensor Module, 0~15m/s, I2C Output

    0 review(s) | Add your review
    SKU: SUCH-WS-AFS3000
    $91.65
    ● Compact structure for easy integration ● Wind speed range 0~15m/s with response time 1s ● I2C communication with a 4.75–5.25 V supply ● Power consumption below 40mA for embedded applications
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Wind speed sensor module is a surface-mount air flow sensing module designed to measure the flow speed of the monitored gas by detecting changes in electrical resistance. It supports I2C communication and operates on a 4.75–5.25 V power supply with power consumption below 40 mA. With a wind speed measurement range of 0~15 m/s, response time of 1 second, and accuracy of <10% F.S., SUCH wind speed sensor module provides reliable airflow measurement for compatible applications. It is designed to operate at temperatures from 0 to 50℃ and within an operating pressure range of 0.2–0.5 bar.

    Feature

    • Compact Size: Small and compact structure with a simple design for easy integration.
    • Long-Term Stability: Provides stable and reliable performance over extended periods of operation.
    • Fast Response: Features quick response and recovery times for efficient airflow detection.
    • Strong Interference Resistance: Helps maintain reliable performance in environments with electrical interference.

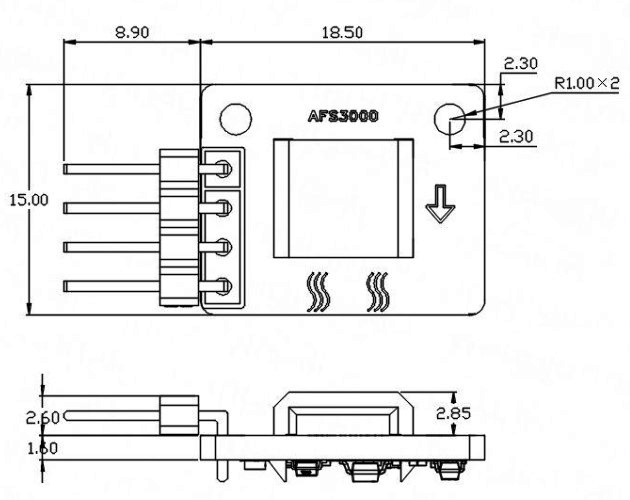

    Dimension (Unit: mm)

    Wind sensor module dimension

    Interface Definition

    Wind sensor module interface definition

    Pin Description
    1 SCL
    2 Power Supply
    3 GND
    4 SDA
    Specs
    Communication Method I2C
    Power Supply Voltage 4.75~5.25V
    Power Consumption <40mA
    I2C Communication Rate <400Kb/s
    Operating Temperature 0~50℃
    Accuracy <10%F.S
    Operating Pressure Range 0.2~0.5bar
    Digital Output 0~3000count
    Wind Speed ​​Range 0~15m/sec
    Response Time 1s
    Conversion Factor 0.005
    I2C Logic Level High Level: 3.3 V (Typical), maximum VDD
    Low Level: Maximum 0.8 V, minimum GND
    Application
    Data center

    Data Center

    Laboratory

    Laboratory

    HVAC

    HVAC

    FAQ
    ❯

    A wind speed sensor module is a device used to detect and measure the speed of airflow or gas flow and convert the measurement into an electrical signal for monitoring or control systems.

    ❯

    wind speed sensor modules can be used in airflow monitoring, ventilation systems, smart appliances, environmental monitoring, industrial equipment, and other air or gas flow measurement applications.

    ❯

    Airflow direction, installation position, turbulence, temperature, pressure, contamination, and surrounding environmental conditions can affect measurement performance.
