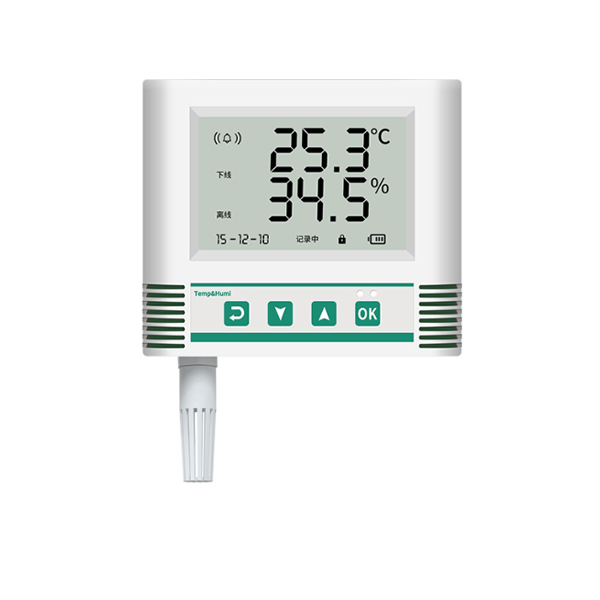

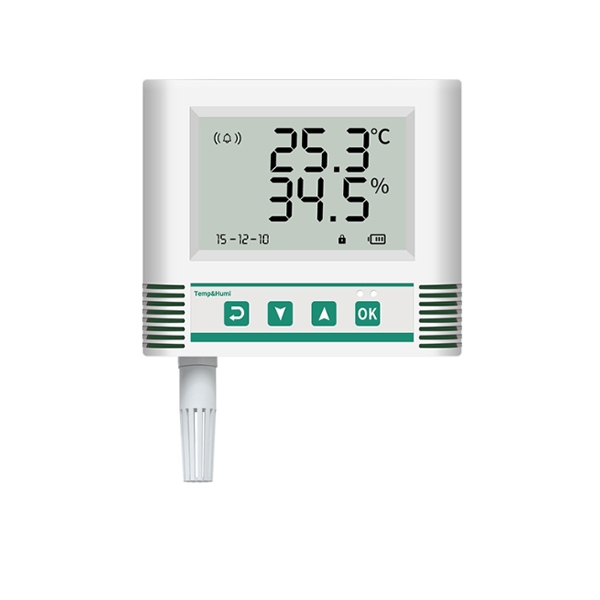

Wireless Temp and Humidity Sensor, 2.4GHz/5GHz

SKU: SUCH-TH-WLS

$189.98

● Standard WIFI wireless (2.4GHz/5GHz) ● Power Supply10~30V DC ● Support 802.11b/g/n wireless standard ● Supports WPA/WPA2 security mode

Accuracy *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Wireless temperature and humidity sensor (2.4GHz/5GHz) provides accurate real-time monitoring with dual-band Wi-Fi connectivity. It supports 802.11b/g/n and WPA/WPA2 security, ensuring fast and secure data transmission. Powered by 10-30V DC, the sensor measures temperature from -40°C to +80°C and humidity from 0-100%RH. SUCH temp humidity sensor features a large LCD display, built-in over-limit alarm, and automatic data upload after power or network recovery. Ideal for food storage, laboratories, cleanrooms, and industrial applications, it offers high accuracy, strong stability, and easy wireless setup.

Feature

Wide Application Range: Suitable for cold-chain logistics, food storage, pharmaceuticals, bioproducts, electronics, healthcare, laboratories, cleanrooms, and data centers.
High Precision and Stability: Wireless temp humidity sensor offers high measurement accuracy, wide sensing range, good linearity, and excellent long-term stability.
Real-Time Over-Limit Alarm: Built-in alarm module automatically triggers alerts when temperature or humidity exceeds preset upper or lower limits.
Data Continuity During Power Failure: When the network disconnects, the device stores data internally and uploads it automatically once the connection is restored.
High-Definition LCD Display: Equipped with a large LCD screen for real-time data display and a screen-lock function to prevent misoperation.
Strong Wireless Connectivity: Operates on 2.4GHz/5GHz dual-band Wi-Fi for stable, fast, and interference-free data transmission.
Industrial EMC Design: Uses EMC anti-interference components and industrial-grade processing chips, ensuring reliability under strong electromagnetic conditions.
Easy Installation and Configuration: Supports quick setup via 485 configuration software, enabling flexible parameter adjustment and seamless integration.
Durable Construction: Designed with high-quality materials and sealed protection to ensure precise and stable performance in various environments.

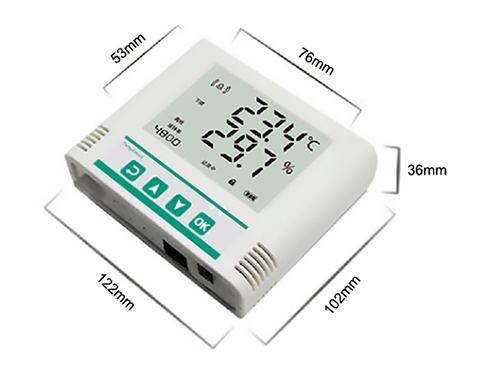

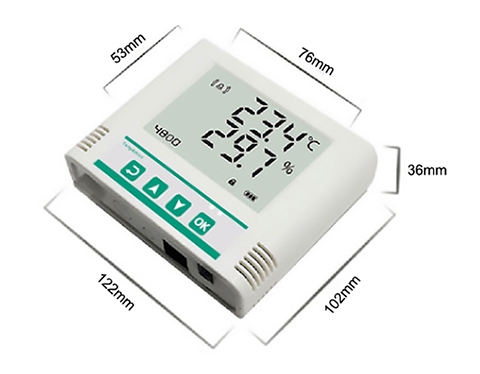

Dimension

Detail

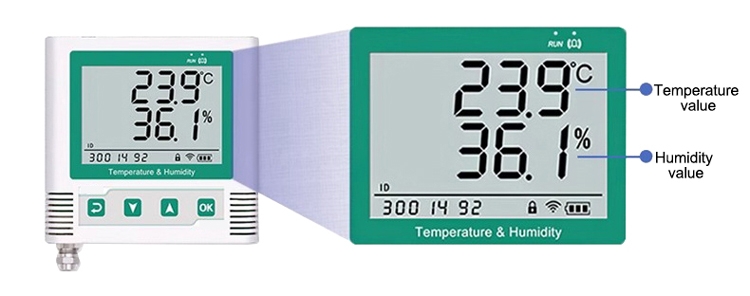

Wireless temp and humidity sensor display

Wiring

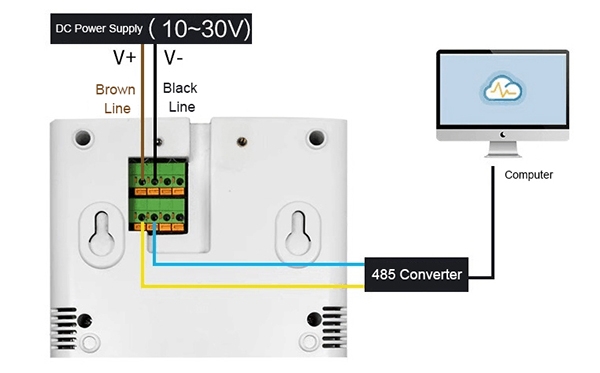

Wireless temp and humidity sensor wiring

Keyhole Mounting

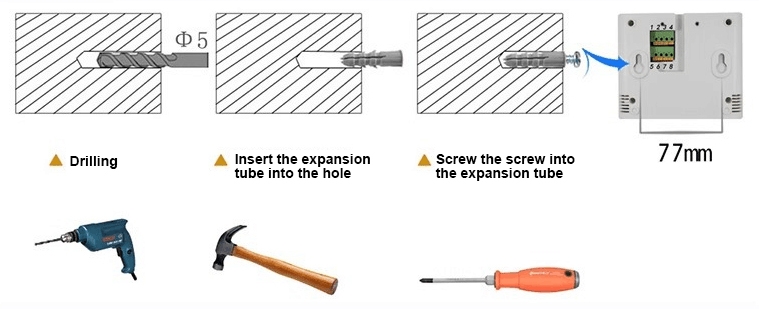

Wireless temp and humidity sensor installation

Wall Bracket Mounting

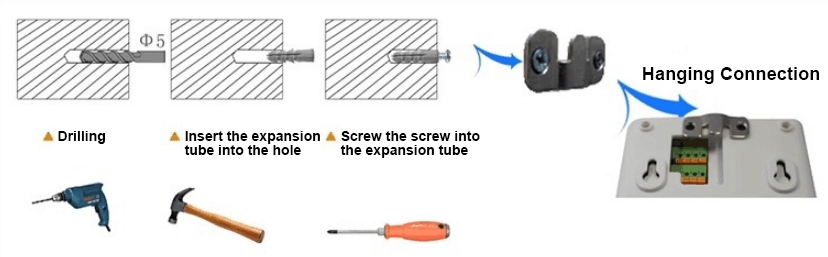

Wireless temp and humidity sensor install

Specs

Power Supply	10~30V DC
Communication Interface	Standard WIFI wireless (2.4GHz/5GHz)
IP Address	Supports static IP address, IP address auto-acquisition function, cross-gateway, domain name resolution, and WAN connectivity
WIFI Communication Parameters	Support 802.11b/g/n wireless standard
WIFI Encryption Performance	Supports WPA/WPA2 security mode
A Quasi Accuracy	Humidity: ±2%RH (60%RH,25℃)
A Quasi Accuracy	Temperature: ±0.4℃ (25℃)
B Quasi Accuracy	Humidity: ±3%RH (60%RH,25℃)
B Quasi Accuracy	Temperature: ±0.5℃ (25℃)
Transmitter Circuit Operating Temperature	-20℃~+60℃, 0%RH~80%RH
Probe Working Temperature	-40°C~+120°C, default-40°C~+80°C
Probe Working Humidity	0%RH-100%RH
Temperature Display Resolution	0.1℃
Humidity Display Resolution	0.1%RH
Temperature and Humidity Refresh Time	1s
Long-term Stability	Humidity: ≤1%RH/y
Long-term Stability	Temperature: ≤0.1℃/y
Response Time¹	Humidity: ≤25s (1m/s wind speed²)
Response Time¹	Temperature: ≤8s (1m/s wind speed²)
Data Upload Time	Default 20s/time, 1s~10000s can be set
Internal Storage	Recording period 1min-1h can be set, recording capacity: 65000 groups

Application

Pharmaceutical Warehouse

Factory Workshop

Wine Cellar

FAQ

Q1: Can the data be viewed remotely? ❯

Yes. Through the wireless cloud platform, users can monitor temperature and humidity in real time using computers or mobile devices.

Q2: Is the sensor resistant to moisture and corrosion? ❯

Yes. The circuit board has been treated with a three-proof coating (moisture-proof, salt-fog-proof, and mold-proof) for long-term reliability.

Q3: Can it be used in harsh industrial environments? ❯

Yes. The EMC anti-interference components and industrial-grade processor ensure stable operation under strong electromagnetic conditions.
