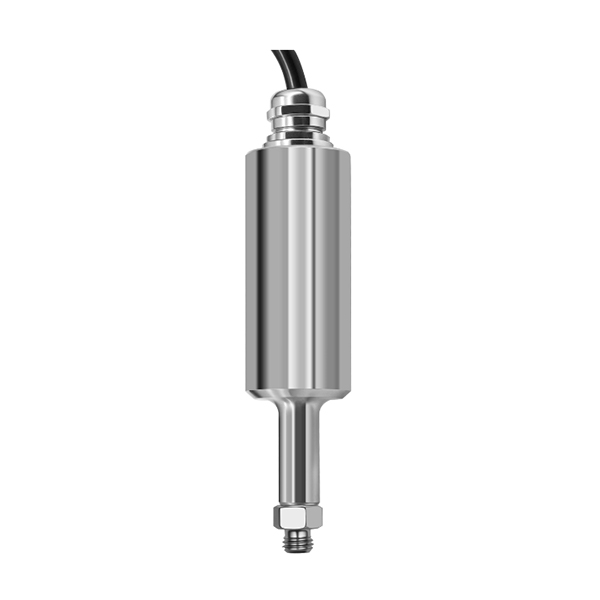

2-in-1 Vibration Transmitter, Vibration & Temperature

A: It utilizes a standard 3-wire configuration operating on a DC 12-24V power supply. The sensor provides two independent 4-20mA loop outputs—one dedicated to vibration and one dedicated to temperature. These dual analog signals allow direct, seamless integration with your existing legacy PLC systems without requiring any complex signal processing modules.

A: Absolutely. The unit supports both threaded and magnetic base mounting options. You can attach the magnetic base instantly to any ferrous surface, which is perfect for quick temporary diagnostics or installations on equipment where you prefer to avoid drilling. Additionally, the built-in waterproof connector provides an IP67 protection rating, ensuring reliable operation in humid or dusty industrial environments (up to 90% RH). The unit supports both threaded and magnetic base mounting options. Please select the mounting type when placing your order.

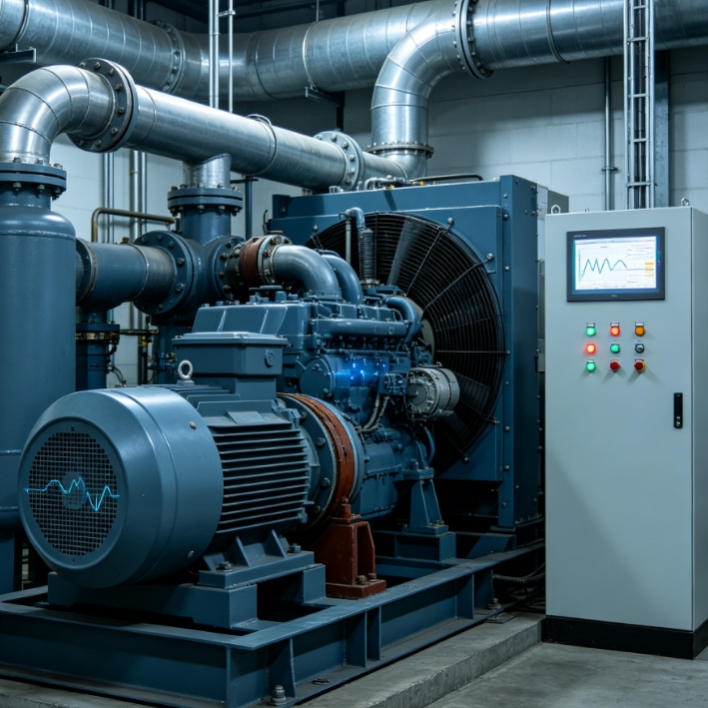

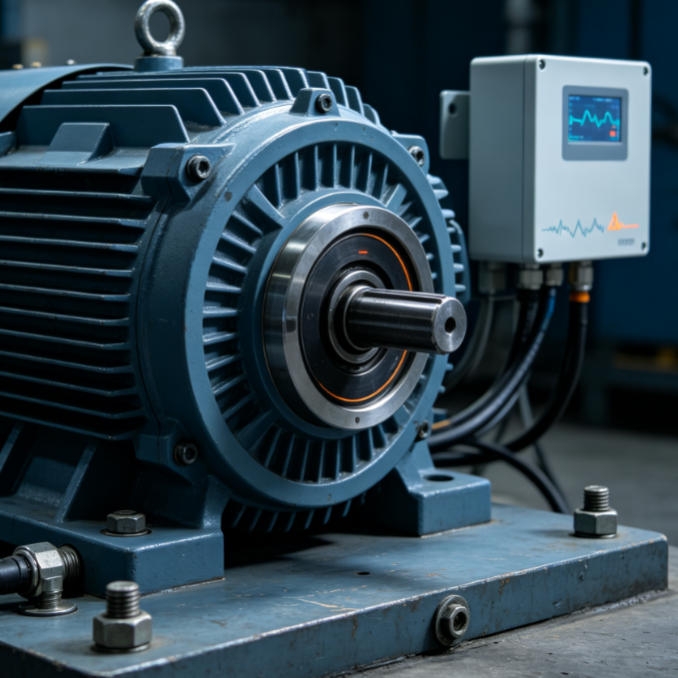

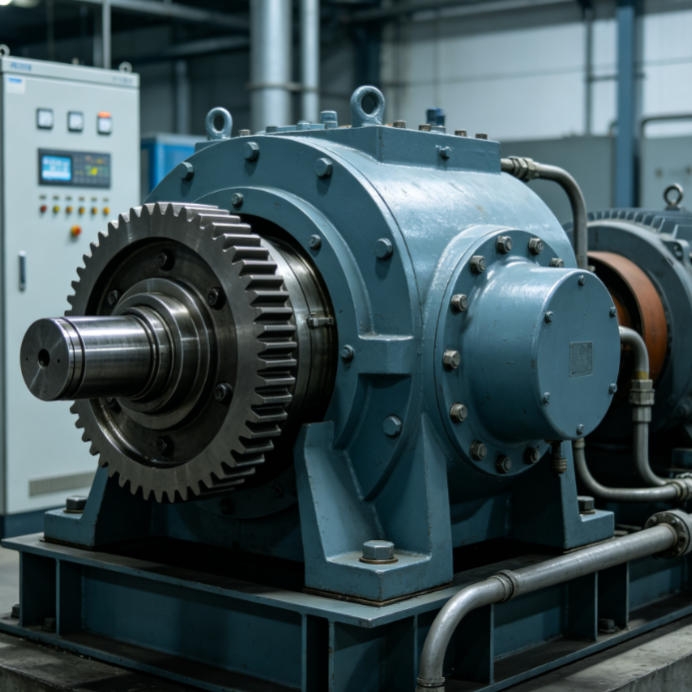

A: Combining both vibration and temperature monitoring into a single compact housing significantly reduces installation complexity. It eliminates the need for drilling two separate mounting holes and running four wires instead of three. This proves extremely valuable on small pumps, motors, and compressors where mounting space is limited. It also ensures both parameters are measured simultaneously, giving you a more holistic view of equipment health.

A: We strictly provide the official CE compliance certificate for this model. Alongside this, you will receive a comprehensive factory calibration report and a detailed technical datasheet covering both the vibration (0-50 mm/s) and temperature (0-200°C) measuring specifications. These materials guarantee you have everything needed for a compliant, smooth installation and integration process.
