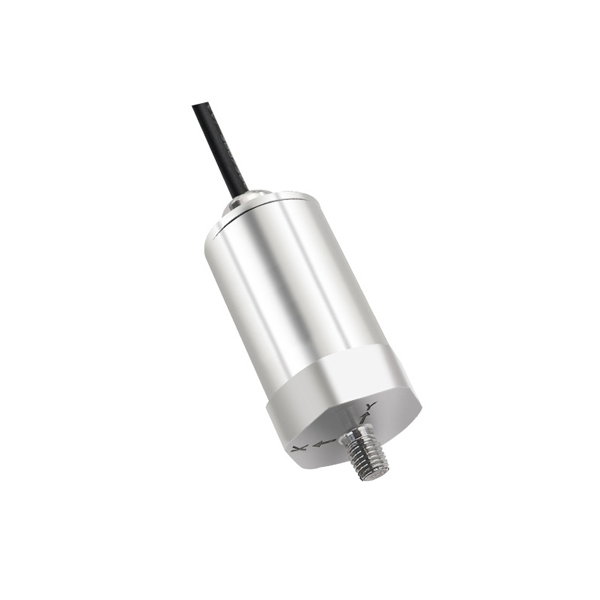

3-Axis RS485 Vibration Transmitter, Predictive Maintenance, Bearing Diagnosis

Name: 3-Axis RS485 Vibration Transmitter, Predictive Maintenance, Bearing Diagnosis
Brand: Such.com
SKU: SUCH-VT-SN-3001-2
Price: 132.77 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-VT-SN-3001-2

$132.77

● Electrical: RS485 (Modbus-RTU), DC 24V ● Axes: X/Y/Z tri-axial (simultaneous) ● Velocity range: 0-50mm/s (or up to 199.9mm/s) ● Frequency response: 10-5000Hz

Frequency Range *
Mounting Option *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Spec
Application
FAQ
Reviews

Overview

RS485 3 axis vibration sensor delivers comprehensive X/Y/Z triaxial data for accurate machine health assessment. Ideally suited for high-speed gearboxes, turbines, and automated equipment, it performs reliably in wide temperature ranges and wet outdoor conditions. It effectively eliminates the blind spots of traditional single-axis sensors, capturing complex spatial vibrations and early mechanical defects. Featuring standard Modbus-RTU, it seamlessly connects to existing PLC and SCADA systems without complex configuration. This ensures field operators receive real-time diagnostic insights immediately upon setup, making routine predictive maintenance straightforward and practical.

Feature

Triaxial Real-Time Monitoring: Simultaneously acquires three-axis vibration to reveal true machine directional dynamics.
Predictive Fault Diagnostics: The broad bandwidth capability effectively pinpoints early-stage gearbox and high-speed bearing wear.
Digital Industrial Communication: Reliable serial data transmission enables effortless connection to centralized SCADA and PLC systems.
Accurate Dual-Parameter Sensing: Measures velocity and acceleration simultaneously with high precision to identify harsh mechanical impacts.
Extreme Environment Tolerance: Rated IP68 and with wide temperature flexibility, it ensures stable operation in harsh industrial sites.
Versatile Industrial Mounting: Magnetic and threaded bases provide fast, secure attachment to diverse ferrous machine surfaces.

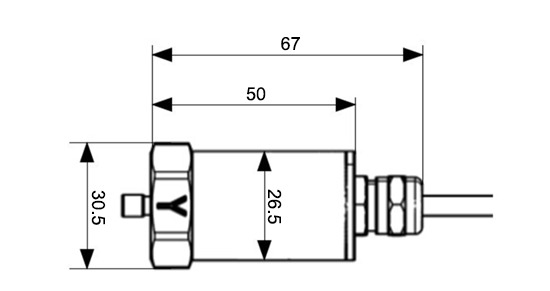

Dimensions (Unit: mm)

Dimensional specs of 3-axis RS485 vibration transmitter with IP68 housing and standard M10 thread

Wiring

Input: 10-30V DC
RS485 A/B: correct polarity, no reversal
Bus addresses: unique per device

	Line Color	Explanation
Power Supply	Brown	Power Supply Positive (10-30V DC)
Power Supply	Black	Power Supply Negative
Communication	Yellow (Green)	RS485-A
Communication	Blue	RS485-B

Signal & Diagnostic Reference

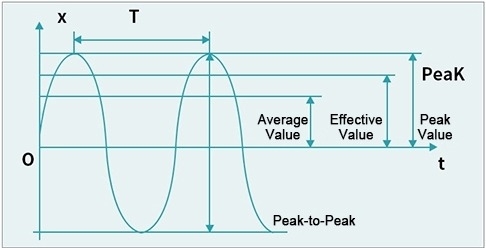

Vibration waveform-feature combo chart with RMS, Peak, P-P, and frequency-domain diagnostics.

Analysis Type	Description
Time‑Domain Analysis	Acceleration: RMS, Peak, Crest Factor
	Velocity: RMS, Peak, Crest Factor
	Displacement: RMS
Frequency‑Domain (Spectrum)	Acceleration: Freq. points, band energy & bearing fault data
Frequency‑Domain (Spectrum)	Velocity: Freq. points, band energy & rotational harmonics
Alerts & Alarms	Configurable thresholds for velocity, accel., displacement & temp
Fault Diagnosis	Empirical diagnostic results based on typical vibration scenarios

Spec

Frequency Range	10-1600Hz
Frequency Range	10-5000Hz
Mounting Option	Thread
Mounting Option	Magnetic Base
Velocity RMS Range	0-50 mm/s
Velocity RMS Accuracy	<1% (@160Hz, 10mm/s)
Velocity RMS Resolution	0.1 mm/s
Acceleration RMS Range	16g (g=9.8m/s²)
Acceleration RMS Accuracy	<1% (@160Hz, 10m/s²)
Acceleration RMS Resolution	0.1 m/s²
Measurement Direction	X‑axis, Y‑axis, Z‑axis (triaxial simultaneous)
Protection Rating	IP68
Supply Voltage	DC10-30V
Power Consumption	0.5W (at DC24V)
Transmitter Operating Temp.	-40°C ~ +80°C, 0%RH~80%RH
Detection Cycle	Real‑time
Certifications	CE

Application

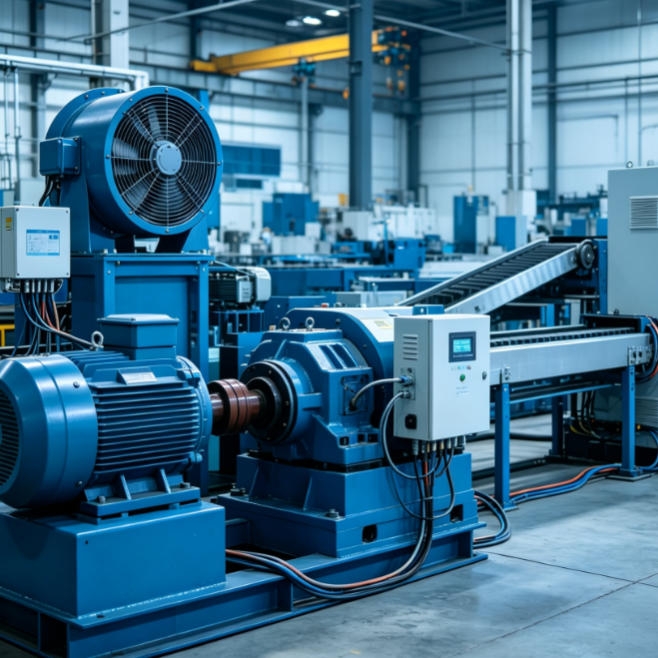

RS485 Modbus vibration transmitter for centralized networked vibration monitoring of multiple equipment in smart factory IIoT.

Smart Factory Network

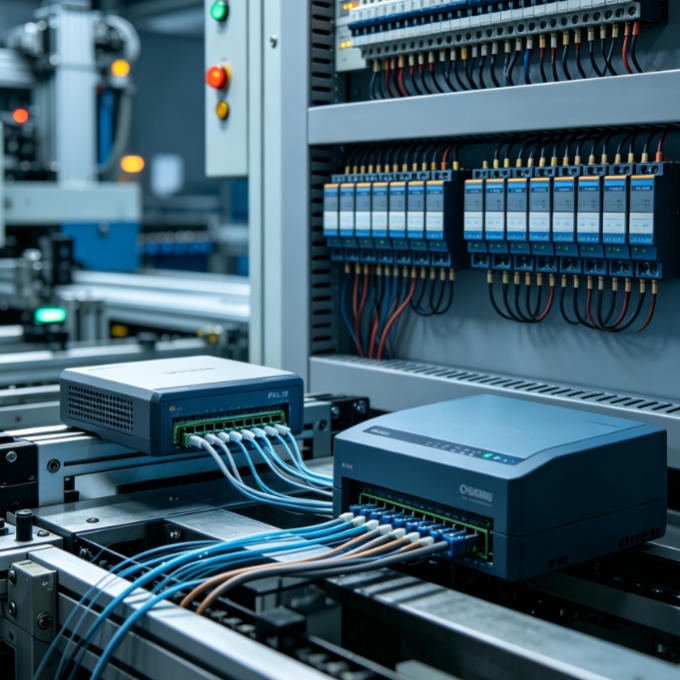

Digital RS485 sensor connected to PLC industrial gateway for state acquisition of digital production line

PLC & Gateway

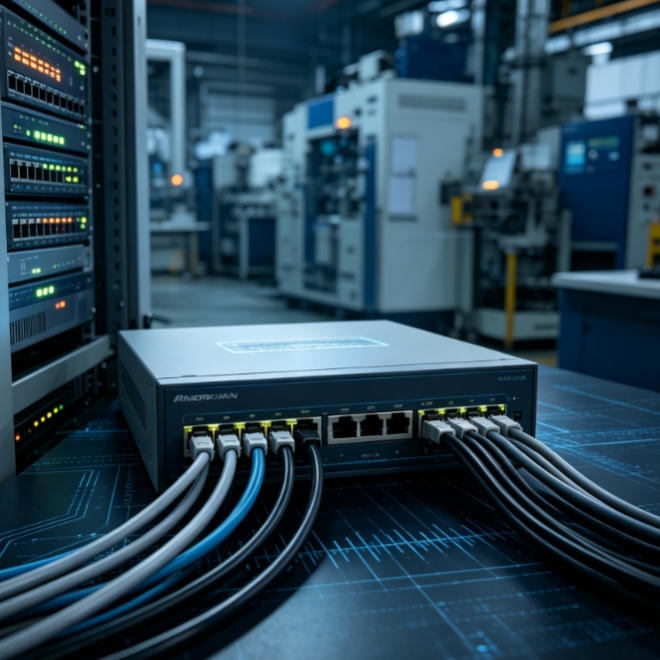

Energy Management

FAQ

Q1: How do I wire and communicate with this RS485 Modbus vibration transmitter? ❯

A: It utilizes a standard RS485 Modbus-RTU protocol and supports a flexible DC 10-30V supply voltage (DC 24V recommended). You simply connect the power lines and the A/B communication lines to your master controller. Once connected, the transmitter allows your PLC or SCADA to instantly read raw velocity, acceleration, and displacement data across all three axes synchronously without any complex signal conversions.

Q2: Can this sensor be used outdoors or in very cold/hot industrial sites? ❯

A: Absolutely. It features an IP68 protection rating, making it fully waterproof and dustproof. It is also designed to operate reliably in extreme environments ranging from -40°C to +80°C. Additionally, it provides both thread mounting and a magnetic base option, allowing for flexible installation on outdoor wind turbines, pumps, or automated production lines regardless of the mounting constraints.

Q3: Why should I choose this 3-axis RS485 sensor over a traditional 4-20mA vibration sensor for bearing diagnosis? ❯

A: Traditional single-axis 4-20mA sensors have critical blind spots in complex machines. They often fail to capture early defects that occur in specific directions. Our 3-axis sensor simultaneously monitors X, Y, and Z vibrations with an acceleration range of up to 16g and a super-wide frequency response of 10-5000Hz. This comprehensive full-spectrum data flow through Modbus-RTU allows your system to accurately pinpoint early bearing fatigue and gear wear, making it an essential tool for true predictive maintenance programs.

Q4: Does a 3-axis RS485 transmitter prevent ground loop interference? ❯

A: Yes. RS485 uses differential signaling, which provides natural immunity to common-mode noise and ground loops in industrial environments. It ensures stable data transmission even when long cables run alongside high-voltage motors. Note: For severe VFD interference or total galvanic isolation, a separate signal isolator is still recommended.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Michael Donovan | Date: 8/3/2026 8:35 AM

3 axis rs485 vibration transmitter is a smart choice

Bought this after our old vibration unit started giving inconsistent readings. The 3 axis rs485 vibration transmitter was easy to replace and the communication setup was not complicated. I like having vibration data from three directions instead of a single value. The settings took a little time to understand, but it has been working nicely since installation.
