Portable Magnetic Vibration Transmitter, Horizontal & Vertical

Name: Portable Magnetic Vibration Transmitter, Horizontal & Vertical
Brand: Such.com
SKU: SUCH-VT-LD1082ZD1020M-2
Price: 190.31 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-VT-LD1082ZD1020M-2

$190.31

●Signal: 4-20mA (compatible with legacy PLC systems) ● Voltage: DC 24V ● Range: 0-20mm/s (factory calibrated) ● Mounting: magnetic base (magnet block included)

Displacement Range *
Velocity Range *
Signal Output *
Frequency Range *
Cable Connector *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Spec
Application
FAQ
Reviews

Overview

Portable magnetic vibration transmitter delivering reliable 4-20mA signals for rapid on-site machinery assessments. Ideal for quick diagnostics on standard industrial motors, pumps, and fans during routine maintenance rounds. The magnetic base effortlessly attaches to any ferrous surface, completely eliminating the need for drilling or complex fixtures. Combined with a direct 4-20mA output that seamlessly interfaces with legacy PLC systems, it guarantees true plug-and-play deployment on any production floor.

Feature

Magnetic Mounting: Enables rapid non-destructive deployment on industrial machinery, ideal for temporary vibration spot-checks.
Weather Resistance: Industrial durable design guarantees reliable long-term performance in widely varying temperatures and humid conditions
Flexible Integration: Multiple signal options allow quick adaptation to both existing legacy and modern automation hubs.
Broad Measurement: Wide frequency response and dynamic range capture subtle low-frequency shifts and high-intensity shocks.
Portable Design: The compact Φ35×75 mm body ensures excellent mobility for fast deployment across diverse machines.
Instant Attachment: The provided magnet block allows immediate mounting to ferrous machine surfaces without requiring drilling.

Dimension (Unit:mm)

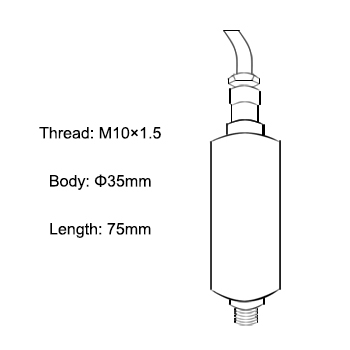

Dimensional diagram of portable magnetic vibration transmitter with Φ35x75mm body and magnetic base attachment

Wiring

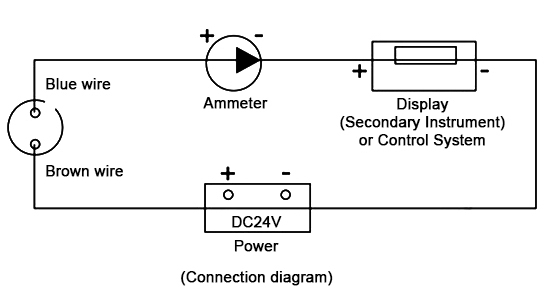

2-wire 4-20mA loop wiring diagram for portable magnetic vibration transmitter, showing brown and blue wire connection to DC 24V power and PLC analog input.

Spec

Displacement Range	0~100 μm
	0~200 μm
	0~500 μm
	0~800 μm
	0~1000 μm
Velocity Range	0~10 mm/s
	0~20 mm/s
	0~25 mm/s
	0~50 mm/s
	0~100 mm/s
Output Signal Type	4~20 mA
	1~5V
	2~10V
	RS485
Frequency Response	10 ~ 1000 Hz
Frequency Response	5 ~ 1000 Hz
Cable Outlet Type	Waterproof connector
Cable Outlet Type	Aviation plug
Output Impedance	≤500 Ω
Operating Voltage	DC 12~24V ±10%
Wiring Mode	2-wire (default)
Mounting Type	Magnetic base
Ambient Temperature	-40℃ ~ 100℃
Ambient Humidity	≤90% RH
Dimensions	Φ35 × 75 mm
Weight	approx. 350 g

Application

Portable magnetic vibration transmitter attached to new industrial motor for short-term trial run vibration testing.

New Motor Testing

Maintenance worker using portable magnetic vibration probe for quick on-site fault diagnosis on production line equipment.

Line Inspection

Test Platform

FAQ

Q1: What is the wiring requirement for this magnetic sensor? ❯

A: It features a default 2‑wire loop‑powered design, drawing DC 12‑24V power directly from your existing PLC analog input. No extra power supply is needed, which significantly saves your wiring effort and simplifies your overall field installation.

Q2: Can I install this sensor on a machine without drilling holes? ❯

A: Absolutely. The unit comes with a strong magnetic base (the magnet block is included). You can quickly attach it to any ferrous machine surface in seconds. This is perfect for temporary diagnostics or permanent installations on machinery where drilling is undesired or impossible.

Q3: My factory has older machines without standard M10 threaded holes. How can this sensor be used? ❯

A: This portable model is designed specifically for such cases. Instead of modifying your machine's surface, the built‑in magnet allows instant attachment. Once attached, the 2‑wire 4‑20mA output connects directly to your legacy control panel – giving you an immediate and cost‑effective way to monitor vibration without modifying your equipment or factory wiring.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Thomas Gardner | Date: 8/5/2026 8:27 AM

portable magnetic vibration sensor is worth having

I bought this after getting tired of moving around with larger vibration testing equipment. The portable magnetic vibration sensor is much easier to use for simple checks. The magnet holds well, and the unit is small enough to keep nearby when needed. It may not replace advanced equipment, but it is great for everyday troubleshooting.
