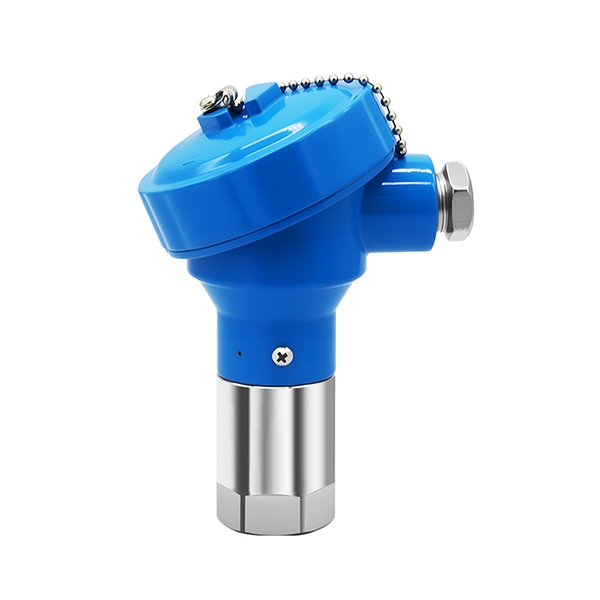

    Picture of Explosion Proof Vibration Transmitter, Digital Display, Exd IIC T6 Picture of Explosion Proof Vibration Transmitter, Digital Display, Exd IIC T6 Picture of Explosion Proof Vibration Transmitter, Digital Display, Exd IIC T6

    Explosion Proof Vibration Transmitter, Digital Display, Exd IIC T6

    1 review(s) | Add your review
    SKU: SUCH-VT-TXY9250
    $252.77
    ● Signal: 4-20mA (2-wire) ● Supply voltage: DC 24V ● Velocity range: 0-20mm/s (factory calibrated) ● Ex-proof: Ex d IIC T6 (certified) + optional digital LCD readout
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Ex d IIC T6 Explosion Proof Vibration Transmitter with IP67 protection is a rugged industrial vibration sensor designed for hazardous processing facilities. Offering a stable 4-20mA loop output and an optional local LCD readout for instant inspection, it excels in oil refineries, chemical plants, and explosive gas zones. It effectively eliminates the critical safety risks of manual on-site checking within hazardous areas. Integrated seamlessly into legacy PLC systems, this Ex d IIC T6 transmitter for predictive maintenance enables real-time detection of early bearing fatigue, effectively preventing catastrophic equipment downtime while ensuring continuous plant safety.

    Feature

    • Hazardous Area Safety: Certified Ex d IIC T6 construction ensures reliable operation in explosive gas and chemical environments.
    • On-Site Readability: The optional integrated LCD screen provides immediate real-time vibration data without needing handheld instruments.
    • Flexible Positioning: Supports threaded or magnetic bases, as well as vertical or horizontal orientations, for complex machinery layouts.
    • Wide Temperature Range: Operates dependably from -40°C to +60°C, adapting seamlessly to extreme outdoor industrial climates.
    • Broad Diagnostic Band: The 5-1000Hz frequency capture effectively identifies both slow rotational and fast bearing anomalies.
    • Rugged Enclosure: IP67 protection and EAC compliance guarantee durability against dust, water sprays, and mechanical shocks.

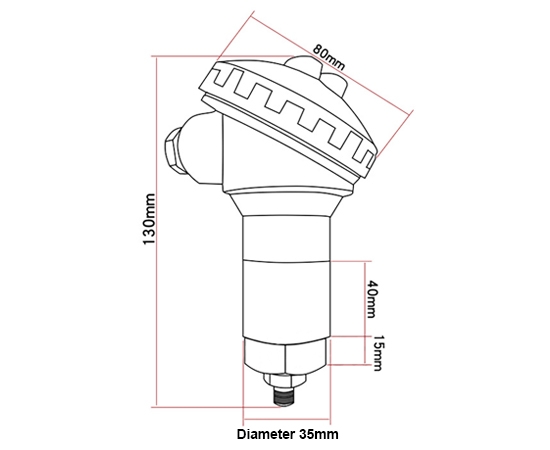

    Dimension (Unit:mm)

    Ex-proof vibration transmitter dimension drawing with M10x1.5 thread, IP67 enclosure, and digital display size specs

    Working Principle

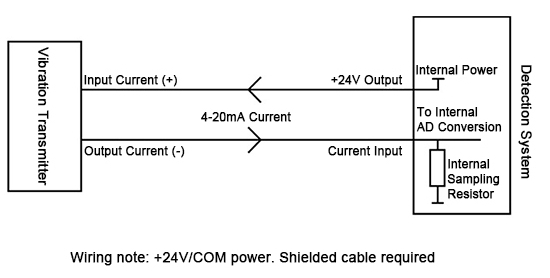

    2-wire 4-20mA loop-powered wiring diagram between explosion-proof vibration transmitter and PLC detection system with internal sampling resistor.

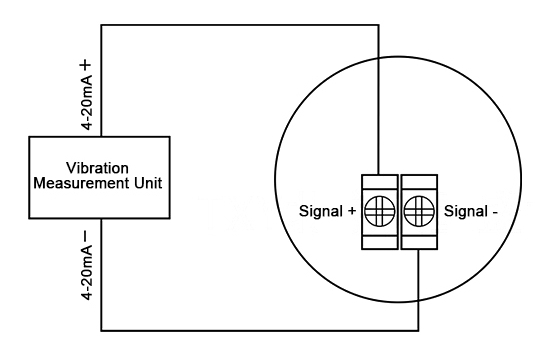

    WiringTerminal block wiring diagram for explosion-proof vibration transmitter showing Signal+ and Signal- connections.

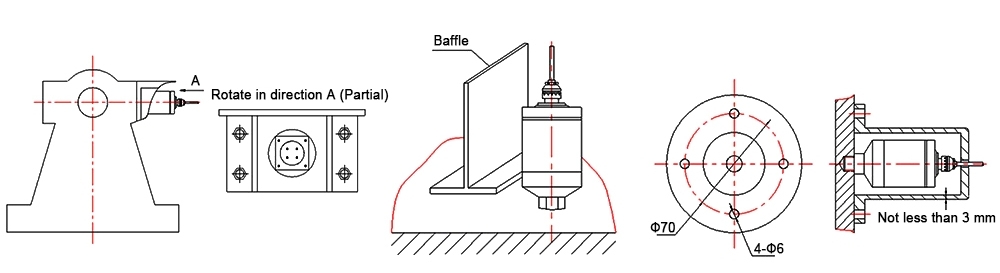

    Installation

    Terminal block wiring diagram for explosion-proof vibration transmitter showing Signal+ and Signal- connections.

    Spec
    Vibration Displacement Range 0-100μm
    0-200μm
    0-500μm
    Vibration Velocity Range 0-10.0mm/s
    0-20.0mm/s
    0-50.0mm/s
    Display Without Display
    With Display
    Mounting Option Thread
    Magnetic Base
    Frequency Response 5 – 1000 Hz
    Natural Frequency 10 Hz
    Velocity (RMS) Measuring Range 0 – 50 mm/s
    Displacement (Peak‑to‑Peak) Measuring Range 0 – 1000 μm
    Acceleration Measuring Range 10 g
    Output Impedance ≤ 500 Ω
    Supply Voltage DC 24 V
    Output Signal 4-20mA
    Mounting Orientation Vertical
    Horizontal
    Explosion‑proof Rating Ex d IIC T6
    Protection Rating IP67
    Operating Ambient Temperature –40 °C ~ +60 °C
    Operating Ambient Humidity ≤ 90% RH
    Thread Specification M10 × 1.5
    Weight Approx. 350 g
    Certifications CE Compliant
    Application

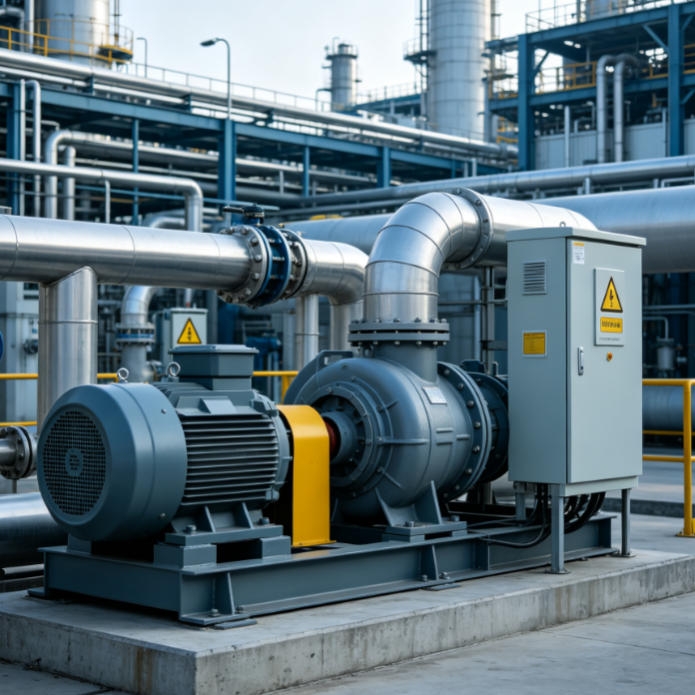

    Ex d IIC T6 explosion-proof vibration transmitter installed on process fan in flammable and explosive chemical plant area.

    Chemical Fan

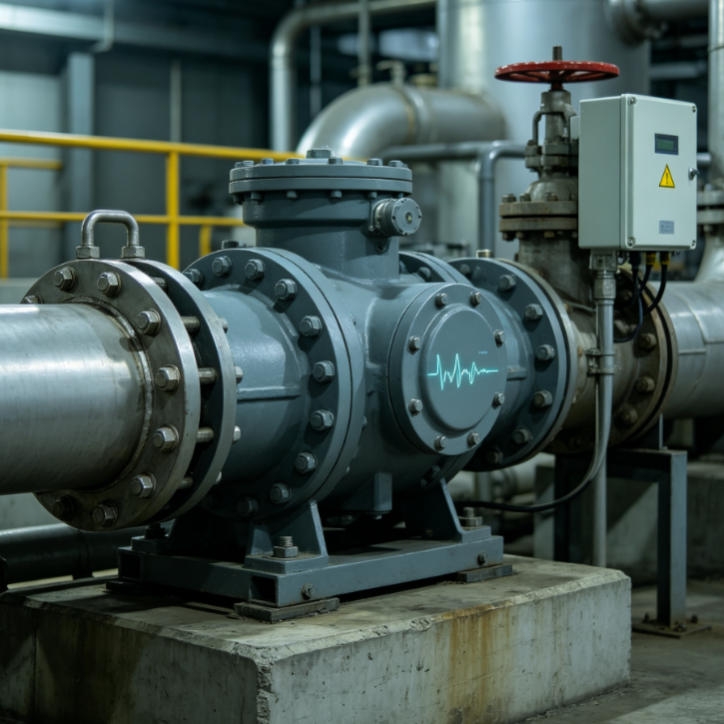

    Explosion-proof vibration sensor on oil and gas transfer pump for safe vibration online monitoring in hazardous environment

    Oil Pump

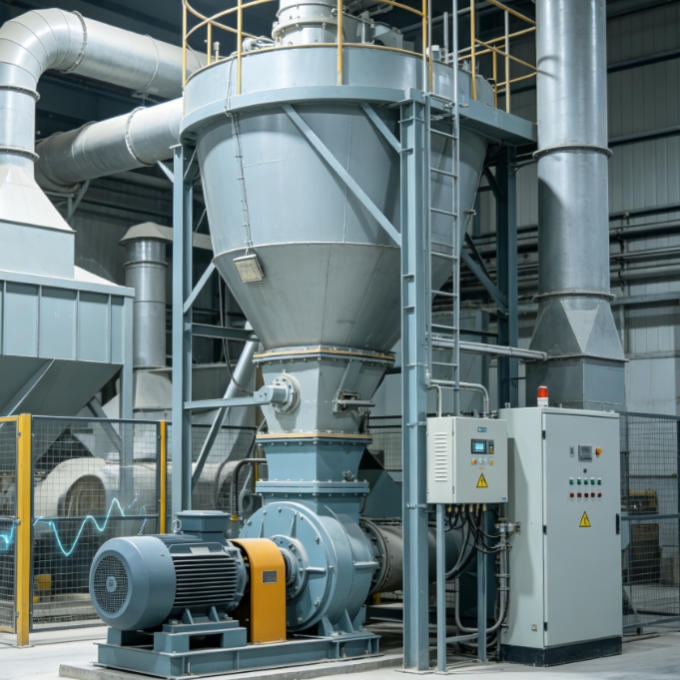

    Intrinsically safe vibration transmitter installed on raw material grinding equipment in dust hazardous workshop

    Grinding Equipment

    FAQ
    ❯

    A: It operates on a standard DC 24V supply using a 2-wire loop-powered design, delivering a direct 4-20mA output. This simplifies field wiring significantly—requiring just two wires—which is especially beneficial and safer for installation in hazardous explosion-proof zones, while still directly connecting to your existing PLC control system.

    ❯

    A: Yes. The sensor offers both vertical and horizontal mounting orientations to fit various machine layouts. It also offers two hardware versions: a standard version without display and a version with an integrated digital LCD readout for on-site data checking. It supports both M10×1.5 threaded mounting and a magnetic base, giving you flexible, tool-free installation options.

    ❯

    A: Unlike standard sensors, this model features a rigorous Ex d IIC T6 explosion-proof certification, making it specifically designed for high-risk facilities like oil refineries and chemical plants. It is engineered to operate reliably in extreme ambient temperatures ranging from -40°C to +60°C. Additionally, its wide 5-1000Hz frequency response ensures it effectively detects early-stage bearing and mechanical faults before they escalate into dangerous failures.

    ❯

    A: We strictly provide an official CE compliance certificate, confirming it meets the rigorous safety standards for hazardous area deployments. You will also receive a comprehensive factory calibration report and a technical datasheet covering its 0-20mm/s factory-calibrated velocity range and Ex d IIC T6 specifications. Additionally, we offer all necessary customs and declaration documentation to facilitate smooth international delivery to your destination.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Samuel Jennings | 8/10/2026 6:42 AM
    explosion proof vibration transmitter works as expected
    I ordered this for a vibration monitoring point in a hazardous area. The explosion proof vibration transmitter arrived well packed and the installation went smoothly with the existing wiring. The signal output has been stable during operation, and the housing feels suitable for a tougher environment. I spent some time checking the mounting position, but everything has been running fine since then.
