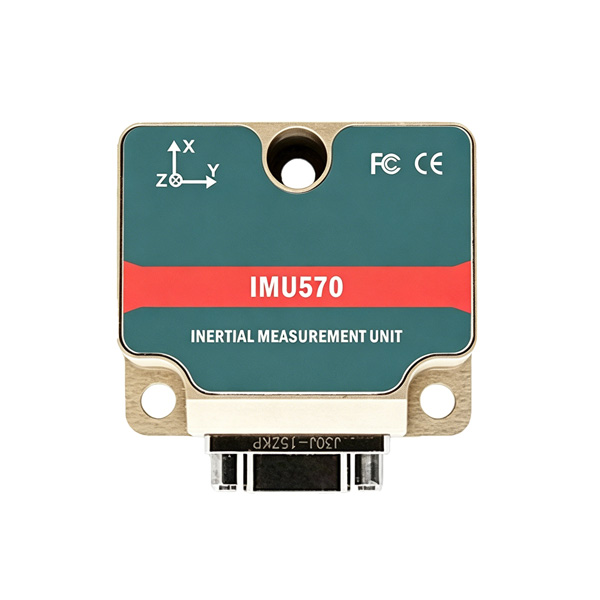

6 Axis IMU Accelerometer Gyroscope Sensor

Name: 6 Axis IMU Accelerometer Gyroscope Sensor
Brand: Such.com
SKU: SUCH-IMU-570
Price: 1080.59 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-IMU-570

$1,080.59

● 6-axis MEMS IMU with 3-axis gyro and accelerometer ● 0.5° dynamic roll/pitch accuracy, ±1800°/s gyro range ● 100g shock resistance, -40°C to 85°C operation ● For navigation, stabilization, and autonomous systems

Output Interface *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The SUCH 6 Axis IMU Accelerometer Gyroscope Sensor is a MEMS inertial measurement unit with a 3-axis gyroscope and a 3-axis accelerometer. It measures angular rate and linear acceleration. It has 0.5° roll/pitch accuracy, a gyroscope range of ±1800°/s, and an accelerometer range of ±38g. Operating temperature range is -40°C to 85°C, and it withstands 100g shock. The sensor weighs 52g and is used in automotive guidance, drone navigation, robotics, and industrial platform stabilization systems.

Feature

0.5° dynamic roll/pitch accuracy for orientation measurement in navigation and platform stabilization systems.
Gyroscope range up to ±1800°/s and accelerometer range up to ±38g for high-dynamic motion measurement.
100g shock resistance across three axes for stable operation in high-vibration environments such as vehicles and drones.
Operating temperature range from -40°C to 85°C for industrial and outdoor applications.
Low bias instability: 0.019 mg (accelerometer) and ≤8°/h (gyroscope) for reduced drift in long-term measurement.
52g compact design for integration in space-constrained systems.
Suitable for automotive guidance, drone navigation, robotics, and industrial control applications.

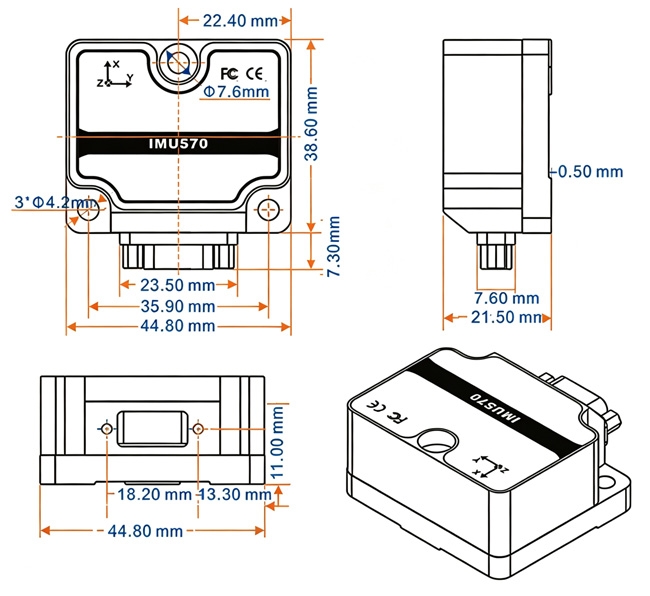

Dimension

Contacts

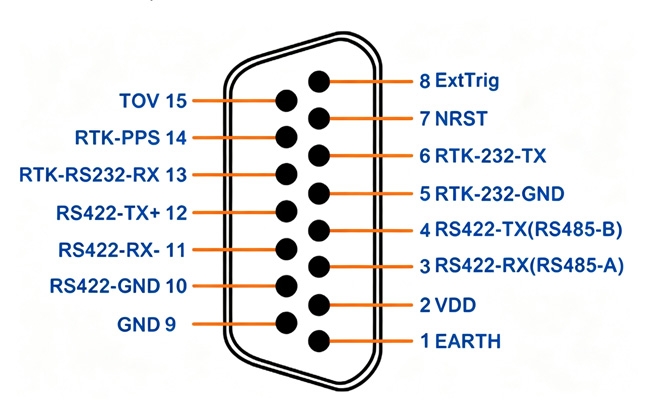

6 axis IMU sensor contacts pinout diagram showing wire connections

Specs

Supply Voltage	+5 V ±0.5 V (DC)
Operating Current	105 mA ± 5 mA
Operating Temperature	-40 ~ +85 °C
Storage Temperature	-40 ~ +85 °C
Vibration	10 ~ 2000 Hz, 10 g
Shock	100 g @ 11 ms (three-axis, half-sine)
Weight	52 ±5 g
Output Protocol	68 proprietary digital protocol
Attitude Performance	Roll/Pitch (1σ, Dynamic)	0.5°
Attitude Performance	Heading Accuracy (Dynamic, 1σ)	0.5°
Gyroscope Performance	Measurement Range	±1800 °/s
	Bias Instability (Allan Variance)	≤ 8 °/h (-20 ~ +70 °C)
	Angular Random Walk (Allan Variance)	≤ 0.13 °/√h & 0.24 °/√h
	Bias Acceleration Sensitivity	≤ 1 °/h/g
	Resolution	≤ 0.001 °/s
	Scale Factor Non-Linearity	≤ 100 ppm
	Scale Factor Repeatability	≤ 100 ppm
	Cross-Coupling	≤ 0.1 %
	Bandwidth	≥ 200 Hz
Accelerometer Performance	Measurement Range	±38 g
	Bias Instability (Allan Variance)	0.019 mg
	Bias Repeatability	0.08 mg
	Velocity Random Walk (Allan Variance)	0.04 m/s/√h
	Bias Error (Full Temperature Range)	0.5 mg

Application

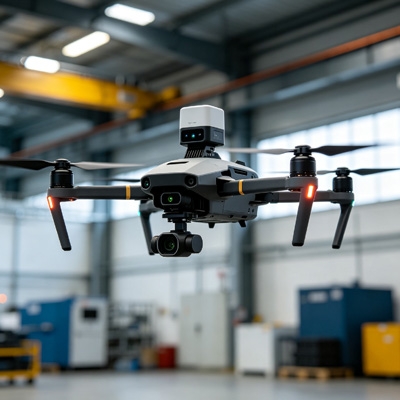

Drone navigation

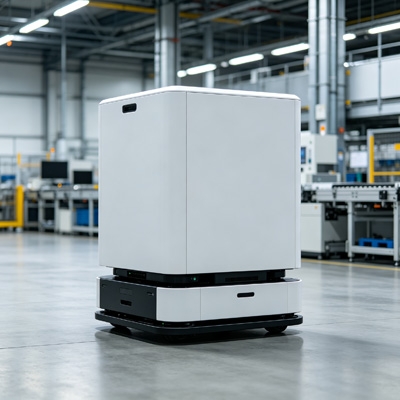

Automotive guidance

Robotics stabilization

FAQ

Q1: What is a 6 axis IMU sensor used for? ❯

A 6 axis IMU sensor measures angular rate and linear acceleration for automotive guidance, drone navigation, and robotics stabilization.

Q2: What is the difference between a 6 axis and 9 axis IMU sensor? ❯

A 6 axis IMU sensor combines a 3-axis gyroscope and a 3-axis accelerometer, while a 9 axis IMU adds a magnetometer for heading reference.

Q3: How accurate is a 6 axis IMU accelerometer gyroscope sensor? ❯

The sensor provides 0.5° dynamic roll/pitch accuracy, a gyroscope range up to ±1800°/s, and an accelerometer range up to ±38g.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Ryan Edwards | Date: 7/8/2026 9:47 AM

6 axis imu sensor reliable in motion control

ordered a 6 Axis IMU Sensor for a small robotic platform project. integration was easier than expected, just connected the interface and worked through the calibration. the 6 Axis IMU Sensor provides stable attitude data during movement tests. had to adjust some filtering settings at the beginning, but after that the output became much smoother and consistent for my application.
