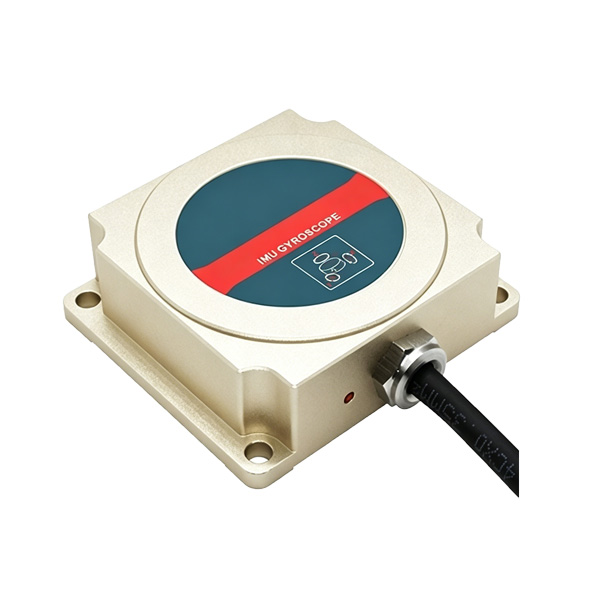

    Picture of 6 Axis High Precision IMU Sensor for Tractor , RS232/RS485 Picture of 6 Axis High Precision IMU Sensor for Tractor , RS232/RS485 Picture of 6 Axis High Precision IMU Sensor for Tractor , RS232/RS485

    6 Axis High Precision IMU Sensor for Tractor , RS232/RS485

    1 review(s) | Add your review
    SKU: SUCH-IMU-TL725D
    $162.94
    ● Specialized AGV / Agricultural Motion Intelligence ● Industrial-Grade Anti-Vibration Structure ● Full 9-Axis High-Precision Output ● IP67 Rugged Protection Design
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The SUCH 6 axis high precision IMU sensor is an industrial-grade inertial measurement unit designed for agricultural vehicle navigation and autonomous driving systems. Featuring a 3-axis gyroscope and 3-axis accelerometer, it provides stable attitude and heading data while reducing vibration interference and drift. The sensor supports a 9–36V power supply, RS232, RS485, and CAN interfaces for easy integration. With IP67 protection and an operating temperature range of -40°C to +80°C, it is suitable for tractors, farming machinery, and other precision agriculture applications.

    Features

    • Long-Term Stability: Engineered for continuous operation with excellent reliability, reducing maintenance requirements in automated guidance systems.
    • Real-Time Attitude Output: Provides three-axis attitude angles and gyroscope data simultaneously for accurate vehicle positioning and navigation control.
    • Wide Input Voltage: Supports a DC 9-36V power supply, making this agricultural IMU sensor compatible with tractors, combine harvesters, sprayers, and other farm machinery.
    • Anti-Vibration Design: Built-in vibration-resistant structure minimizes the impact of shocks and continuous machine vibration, maintaining stable IMU performance in demanding field conditions.
    • IP67 Environmental Protection: Sealed IP67 housing protects the MEMS IMU sensor from dust, mud, rain, and water exposure during outdoor agricultural operations.
    • Compact and Lightweight: Small footprint and lightweight construction allow easy installation on tractors, agricultural implements, and autonomous farming equipment.
    • High-Precision Motion Tracking: Advanced MEMS sensing technology provides accurate orientation measurement and fast response for agricultural auto-steering, path tracking, and machine guidance systems.
    • Agricultural Navigation Algorithm: Optimized agricultural dynamic algorithms deliver accurate attitude and heading information, ensuring reliable performance for tractor auto-steering and precision farming applications.

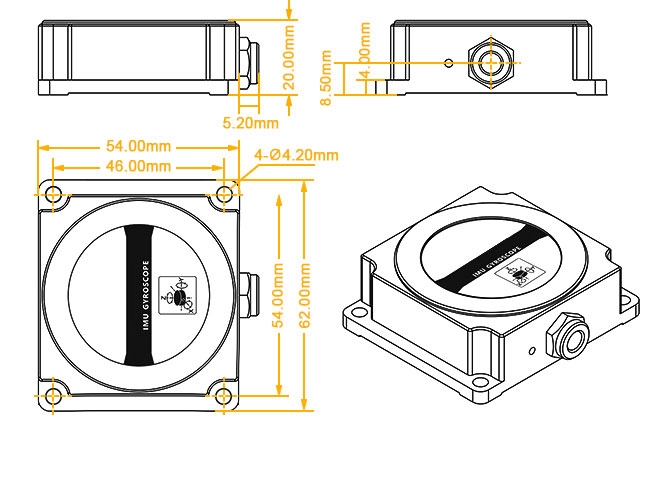

    Dimension (Unit:mm)

    precision imu sensor dimension

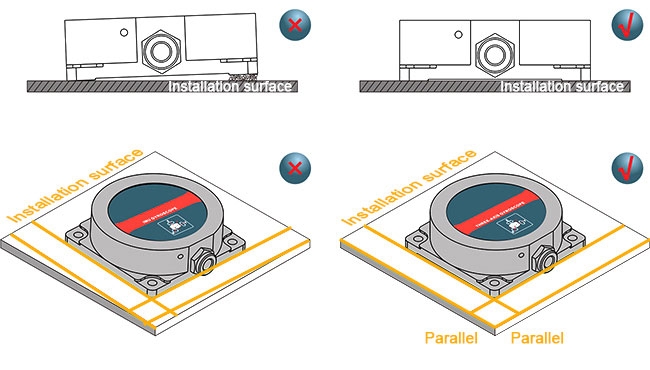

    Installation

    precision imu sensor installation



    Specs
    Input Voltage +9 ~ +36 V DC
    Current Consumption (@12V) 35 mA (Typical)
    Insulation Resistance ≥ 100 MΩ
    Housing Dimensions L62 × W54 × H20 mm
    Installation 4 × M4 Screws
    Weight (with 1m cable) ≤ 160 g
    Cable Standard 1-meter 4-core shielded cable
    Ingress Protection (IP) Rating IP67
    Operating Temperature -40 ~ +80 °C
    Storage Temperature -40 ~ +85 °C
    Shock Resistance 200g peak, 2ms, 1/2 sine (Note: Conflicting spec: 100g@11ms also listed)
    Vibration Resistance 10 grms, 10 ~ 1000 Hz
    Operational Lifespan 10 Years
    Mean Time Between Failures (MTBF) ≥ 98,000 hours
    Output Signal RS232 / RS485 CAN 2.0A / CAN 2.0B
    Attitude Performance
    Measurement Range (Roll, Pitch, Yaw) ±180° Roll, ±90° Pitch, ±180° Yaw
    Resolution 0.01°
    Non-Linearity 0.1% of FS
    Algorithm Bandwidth > 100 Hz
    Gyroscope Performance
    Measurement Range 250 °/s 250 °/s, 500 °/s (Configurable)
    Output Data Rate 5, 15, 25, 35, 50, 100 Hz (Configurable) 1 ~ 200 Hz (Configurable)
    Bias Instability (Allan) 4.0 °/h 4.5 °/h
    Angular Random Walk (Allan) 0.25 °/√h
    Bias Stability (10s mean) 8.5 °/h
    Startup Time 500 ms 250 ms
    Accelerometer Performance
    Measurement Range ±4 g ±2g, ±4g, ±8g, ±16g (Configurable)
    Resolution 0.001 g
    Accuracy 1 mg
    Bias Instability (Allan) 0.05 mg
    Velocity Random Walk (Allan) 0.015 m/s/√h
    Bias Stability (10s mean) 0.15 mg

    PDF computing6 Axis High Precision IMU Sensor User Manual

    Application
    precision imu sensor for harvester

    Harvester

    precision imu sensor for cultivator

    Cultivator

    precision imu sensor for rice transplanter

    Rice Transplanter

    FAQ
    ❯

    The product comes with two main types of communication interfaces: Serial (RS232/RS485) and Automated Vehicle Bus (CAN 2.0A/CAN 2.0B). If you are connecting to a standard micro-controller, PLC, or industrial PC, choose RS232 or RS485. If you are integrating it into a modern tractor's bus system (like an ISOBUS architecture) or a vehicular CAN network, choose the CAN version.

    ❯

    The 3-axis attitude measurement range is: Azimuth (Yaw) ±180°, Roll ±180°, and Pitch ±90°. This is more than enough for agricultural machinery (such as monitoring tractor slope or front-wheel steering angles) under normal operating conditions.

    ❯

    Yes. The imu sensor has an IP67 waterproof and dustproof rating. It is designed to withstand outdoor rain, mud, intense sunlight, and heavy splashing. However, it should not be permanently submerged in water.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Elliot Kensington | 9/7/2026 6:30 AM
    pretty happy with this imu sensor
    Got this precision imu sensor for a tractor and so far so good. The machine shakes quite a bit when it’s out in the field, but the sensor has been holding up fine. Data looks stable from what I’ve seen. I had to redo the mounting once because of the angle, but that was on me. Haven’t had any issues since.
