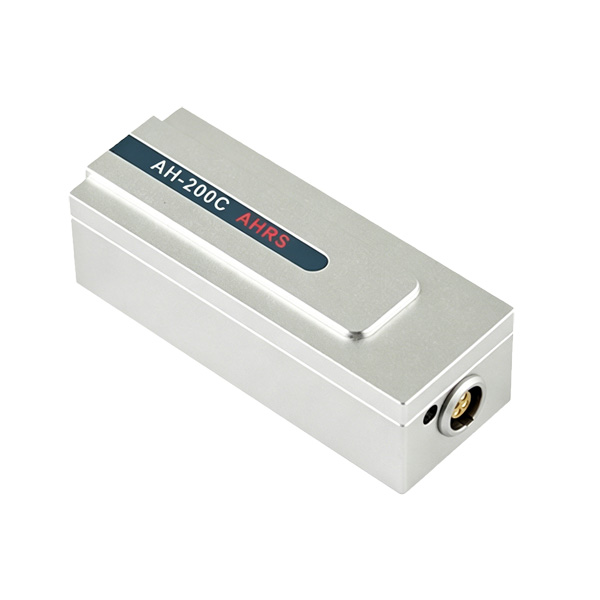

9 Axis MEMS IMU Sensor for GPS/Camera/Automotive, RS232/TTL

The SUCH 9-axis MEMS IMU sensor fuses a 3-axis gyroscope, accelerometer, and magnetometer through Kalman filtering to deliver stable, real-time roll, pitch, and yaw data. With an IP65 aluminum housing, RS232/TTL output, and a -25°C to +85°C operating range, it holds steady heading accuracy under vibration, shock, and temperature change, making it well suited for GPS-aided navigation, camera or gimbal stabilization, and vehicle attitude sensing in automotive systems.

Feature

• 9-axis fusion: Gyroscope (±500°/sec), accelerometer (±8G), and magnetometer (±8 Gauss) with Kalman filtering for accurate roll, pitch, and yaw output.
• High accuracy: <1.5° RMS heading and <0.5° dynamic tilt accuracy for reliable GPS-aided positioning.
• Stable output: Zero-bias drift below 200°/hr and >100 Hz bandwidth for smooth tracking during fast movement.
• Rugged design: 100g shock and 10 g_rms vibration resistance for automotive and mobile mounting.
• Wide temperature range: Operates from -25°C to +85°C for consistent performance outdoors and under-hood.
• Easy integration: RS232/TTL output for direct connection to controllers, GPS modules, and camera/gimbal systems.
• Durable housing: IP65 aluminum enclosure protects against dust and moisture.
• Long lifespan: MTBF ≥ 50,000 hours for continuous industrial and automotive use.

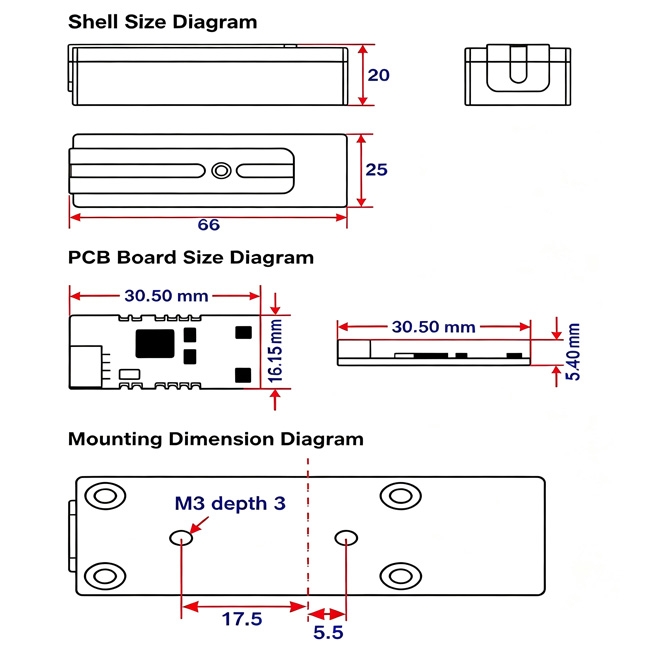

Dimension (Unit: mm)

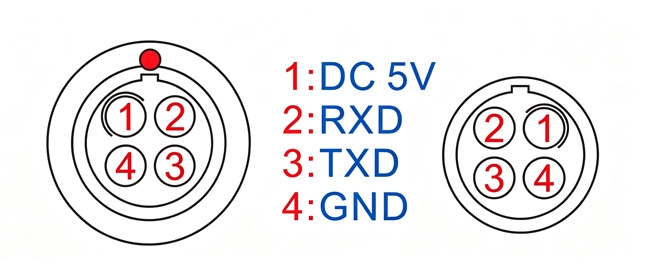

Contacts

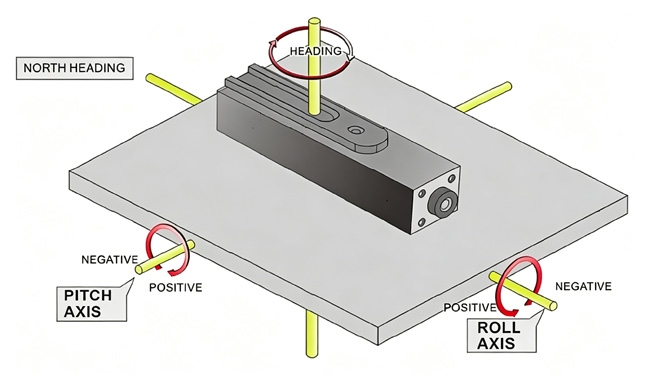

Measuring Direction
