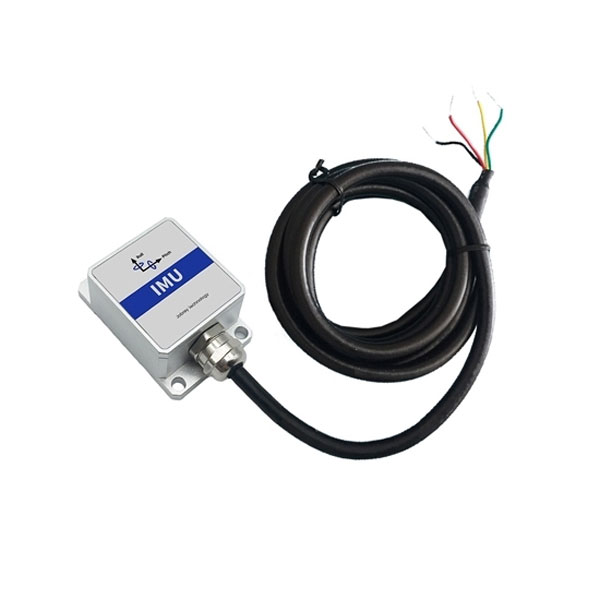

Industrial IMU Sensor for Robotics/Drone, RS485/RS232/CAN/TTL

Name: Industrial IMU Sensor for Robotics/Drone, RS485/RS232/CAN/TTL
Brand: Such.com
SKU: SUCH-IMUS700
Price: 315.88 USD
Availability: InStock

0 review(s) | Add your review

SKU: SUCH-IMUS700

$315.88

● IP67 Rated Protection ● Power Supply: 5V DC ● High Performance Kalman Filter Algorithm ● Flexible Output: RS232 / RS485 / TTL Optional

Output *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Industrial-grade Inertial Measurement Unit (IMU) is designed for high-precision motion tracking and reliable attitude sensing in harsh environments. Built with advanced MEMS technology and an intelligent Kalman-based fusion algorithm, the SUCH IMU delivers accurate acceleration and angular velocity data with reduced drift and enhanced stability during dynamic operation. With IP67 protection, 2000g shock resistance, and flexible communication options including RS232, RS485, TTL, and Modbus, the compact and easy-to-integrate sensor provides dependable real-time performance for robotics, AGVs, drones, autonomous systems, and smart agricultural machinery.

Feature

Industrial-grade power supply: Operates on a standard 5V DC input, ensuring easy integration into embedded and control systems.
Harsh environment protection: IP67-rated housing provides strong resistance to dust, water, and outdoor industrial conditions.
Advanced signal processing: Integrated Kalman filter algorithm reduces drift and improves dynamic measurement accuracy for reliable attitude output.
Flexible communication interfaces: Supports RS232, RS485, TTL, and CAN interfaces for seamless compatibility with industrial controllers and platforms.
Compact mechanical design: Small form factor (L55 × W37 × H24 mm) enables easy installation in space-limited applications.
High-precision motion sensing: Measures acceleration and angular velocity for stable real-time motion tracking in robotics, drones, and autonomous systems.

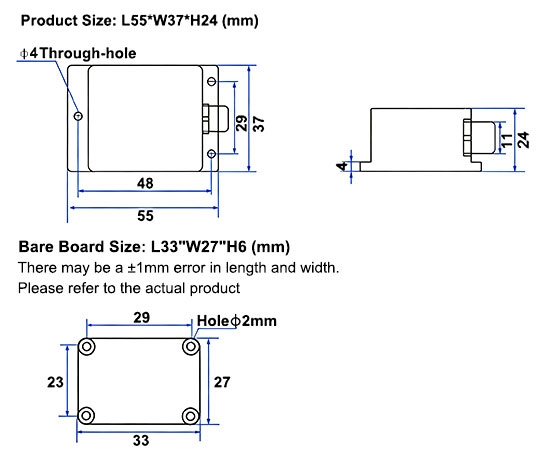

Dimension (Unit:mm)

industrial imu sensor dimension

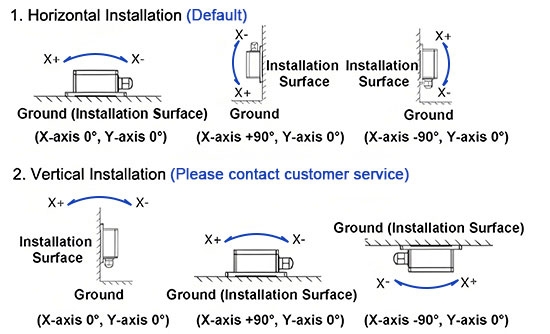

Installation

industrial imu sensor installation

Specs

Electrical
Supply Voltage	5 V DC
Operating Current	30 mA (40 mA max)
Environmental & Reliability
Ingress Protection (IP) Rating	IP67
Operating Temperature	-40 ~ +85 °C
Storage Temperature	-55 ~ +100 °C
Vibration Resistance	2000 g
Physical & Mechanical
Dimensions	L55 × W37 × H24 (mm)
Weight	60 g
Connector	Metal connector (Cable length 1.5m)
Enclosure Material	Magnesium-Aluminum Alloy, Brushed & Anodized
Installation	Triple M4 Bolts
Gyroscope Performance
Resolution	0.1 °/sec
Measurement Range	±2000 °/sec
Bias Stability	150 °/h
ARW (Angular Random Walk)	4.6 °/√h
Noise Density	0.01 °/s/√Hz
Zero Offset Absolute Error	±0.5 °/sec
Accelerometer Performance
Measurement Range (X, Y, Z)	±16 g
Resolution	5 mg
Bias Stability	±20 mg
Data Interface & Processing
Output Interface	RS232 / RS485 / TTL / CAN (Optional)
Filter Algorithm	High-performance Kalman filter
Startup Delay	< 3 s
Maximum Output Frequency	100 Hz
Serial Communication Baud Rate	2400 to 115200 baud
Digital Output Format	Binary High-Performance Protocol

Application

Drone

Robot

AGV

FAQ

Q1: Does this IMU have a built-in Kalman Filter? Does it output raw or fused data? ❯

Yes, it features an integrated high-performance 6-state Kalman filtering algorithm. The internal MCU processes raw data from the 3-axis accelerometer and 3-axis gyroscope in real time. It filters out high-frequency noise and outputs optimized angular velocity and acceleration. Additionally, it typically provides calculated, drift-compensated attitude angles (Pitch, Roll, and Yaw).

Q2: Are the RS232, RS485, TTL, and CAN interfaces interchangeable on the same device? ❯

No, they are not. The hardware interface is fixed at the factory (configured via internal chips and wiring). You must choose the interface that matches your host computer or controller (e.g., MCU, Raspberry Pi, Industrial PC, PLC) before purchasing. It cannot be switched via software.

Q3: Can this IMU be used in high-vibration environments like drones or heavy off-road vehicles? ❯

Yes, absolutely. The enclosure features an IP67 protection rating, meaning it is dust-tight and highly waterproof. It boasts a shock resistance of 2000g, and its internal algorithms are specifically optimized for harsh industrial environments. This makes it an excellent choice for drones (UAVs), AGVs, robotics, Satcom-on-the-move (Santom/mobile satellite antennas), and smart agricultural machinery.
