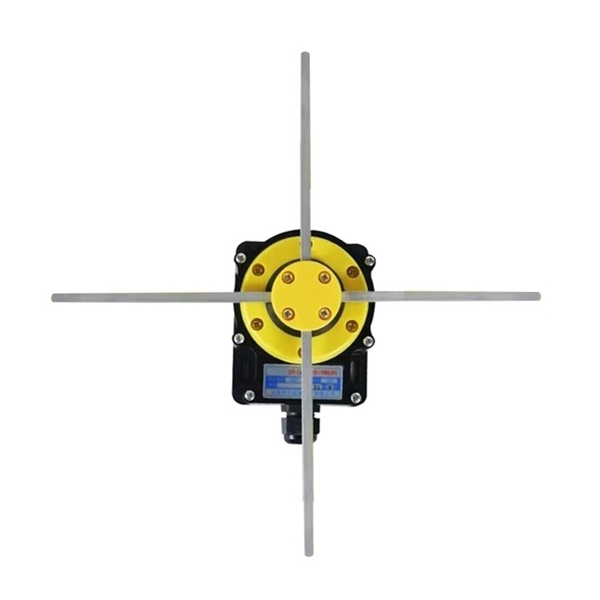

Rotary Cross Limit Switch for Crane, 380V, 180°/360°

Cross rotary limit switch features a rated current of 16A and a rated voltage of 380V, with two options available: single-speed 180° and double-speed 360°. It is widely used in cranes and can also be applied in CNC lathes, marine facilities, medical equipment, and industrial towers. The housing is made of thickened engineering plastic for enhanced durability and insulation, and the device is designed to be dustproof, waterproof, and oil-resistant with an IP65 protection rating. SUCH rotary limit switch supports 360° rotation (for applicable models) and comes with a removable top cover for easy installation and maintenance.

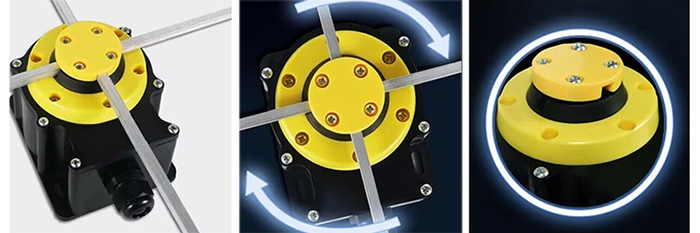

Feature

• Rotary cross limit switch operates smoothly and features dustproof, waterproof, and oilproof performance.
• The housing is made of precision die-cast aluminum alloy, ensuring strength and durability.
• The contacts adopt a double-gap positive opening design for enhanced reliability and safety.
• The enclosure offers a high protection rating with excellent sealing against dust, water, and condensation.

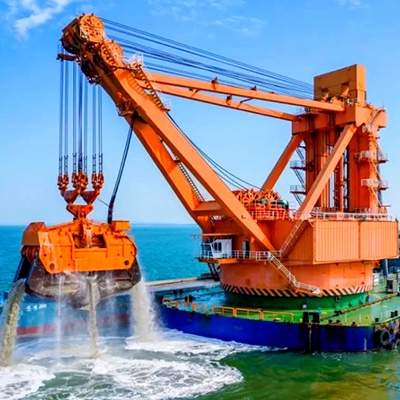

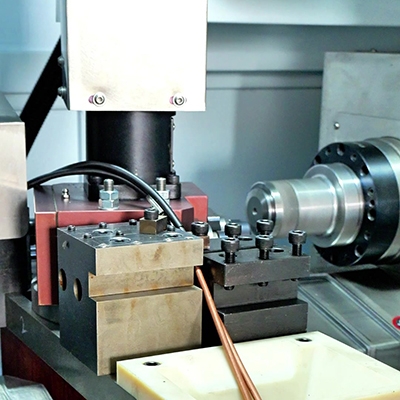

• It is widely used in factory equipment, medical devices, instrumentation, CNC machine tools, marine equipment, and textiles.

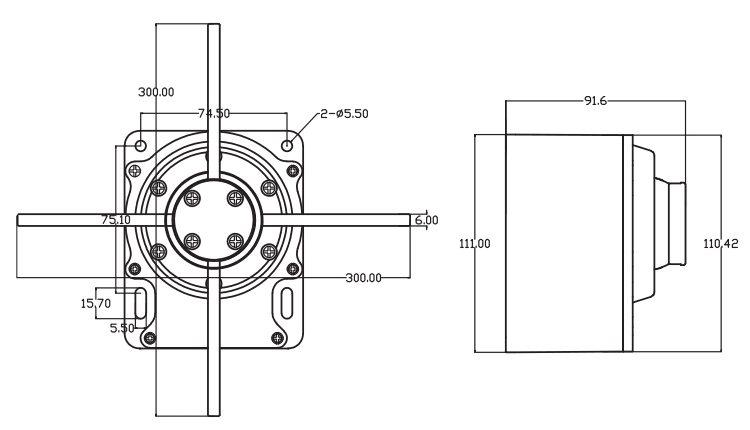

Dimension (Unit: mm)
