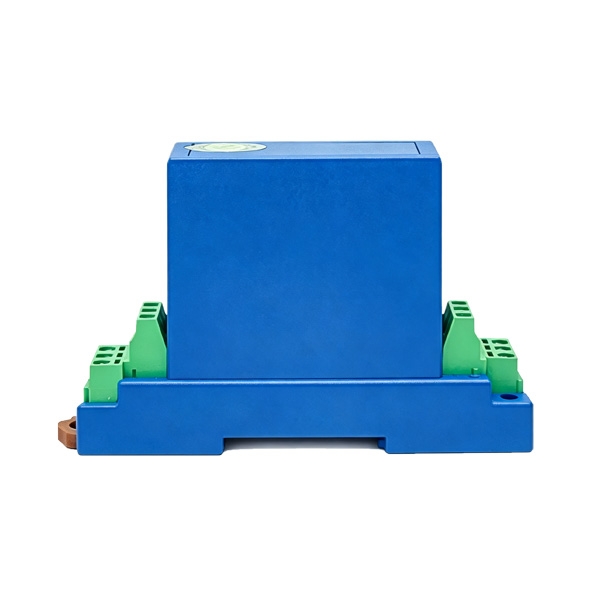

    Picture of DC Voltage Transducer, 50mV–1000V, 0–5V/0–10V Output Picture of DC Voltage Transducer, 50mV–1000V, 0–5V/0–10V Output Picture of DC Voltage Transducer, 50mV–1000V, 0–5V/0–10V Output

    DC Voltage Transducer, 50mV–1000V, 0–5V/0–10V Output

    1 review(s) | Add your review
    SKU: SUCH-VOS-DC5
    $149.23
    ● Wide Input Range DC 50mV to 1000V ● Tracking Output 0–5V / 0–10V ● High Accuracy Class 0.2 ● Fast Response ≤15μs
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    A DC voltage transducer is an isolated signal conditioning device that converts DC voltage into a proportional analog output for industrial monitoring and control systems. The SUCH DC voltage transducer supports a wide input range from 50mV to 1000V with 0–5V or 0–10V outputs, offering Class 0.2 accuracy and a fast response time of ≤15μs for real-time measurement. Designed for DIN rail (EN50022) installation in a flame-retardant IP20 ABS enclosure, it operates reliably in −25°C to +70°C environments. It is widely used in industrial automation, battery management systems, renewable energy monitoring, and motor drive feedback applications.

    Feature

    • Measures bidirectional DC voltage from 50mV to 1000V, covering both low-signal and high-voltage applications in a single device.
    • Tolerates overload up to 2× rated input voltage, reducing the risk of sensor damage in transient conditions.
    • 2500V DC galvanic isolation via linear optocoupler, protecting downstream circuits from voltage spikes and electrical noise.
    • Compatible with DC +12V, +15V, or +24V auxiliary power supply, allowing flexible integration into existing system architectures.
    • Mounts on DIN rail (EN50022) or with M3 screws, supporting both panel and rail-based installation environments.
    • Flame-retardant ABS enclosure, IP20 rated, with MTBF >50,000 hours, suitable for continuous operation in industrial environments.

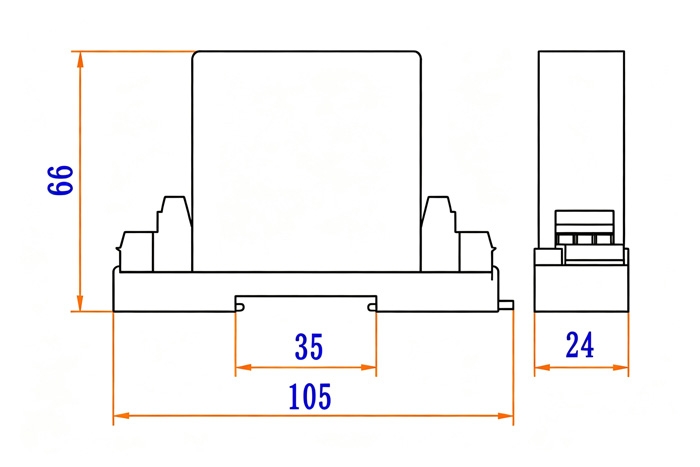

    Dimension (Unit:mm)

    DC voltage transducer 50mV 1000V dimensions and mounting size

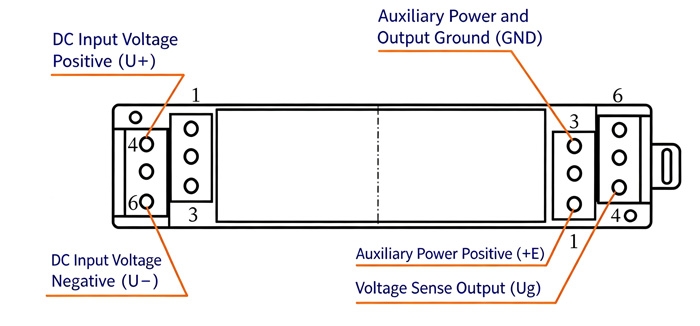

    Wiring

    DC voltage transducer 50mV 1000V wiring diagram and terminal connection

    Specs
    Input
    Input Voltage DC 50mV, 75mV, 50V, 100V, 200V, 300V, 500V, 1000V (selectable)
    Input Response Bidirectional DC
    Input Impedance UX >1V: Ri = UX × 10kΩ/V; UX ≤1V: Ri ≥1MΩ
    Allowable Overload 2× rated input, 1s on / 10s off, 10 cycles
    Linear Measurement Range 0–120% of rated input
    Output
    Output Type Tracking voltage output
    Output Signal 0–5V or 0–10V (selectable)
    Accuracy Class 0.2
    Load Capacity 5mA
    Response Time ≤15μs
    Temperature Drift 160 × 10⁻⁶/°C
    Power Supply
    Auxiliary Power DC +12V, +15V, or +24V (selectable)
    Static Current ≤30mA
    Isolation
    Isolation Type Input, output, and power supply fully isolated
    Isolation Withstand Voltage DC 2.5kV, 1 min
    General
    Operating Temperature −25°C to +70°C
    Storage Temperature −25°C to +70°C
    Enclosure Protection IP20
    MTBF >50,000 hours
    Enclosure Material Flame-retardant ABS (UL94V-0)
    Mounting DIN rail (NS35/7.5, NS35/15, EN50022) or M3 screws
    Weight <90g
    Application

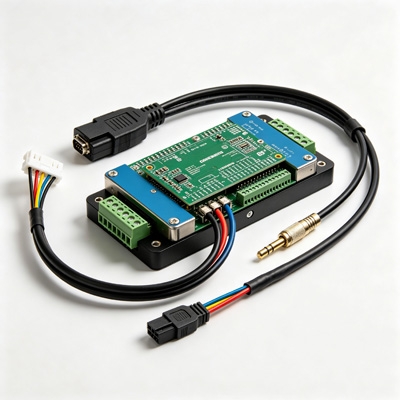

    DC voltage transducer used in battery management system monitoring

    Battery Management

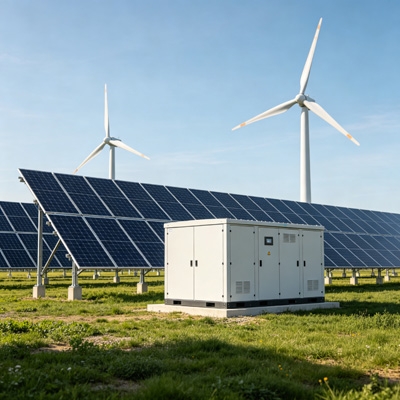

    DC voltage transducer applied in solar renewable energy monitoring system

    Renewable Energy

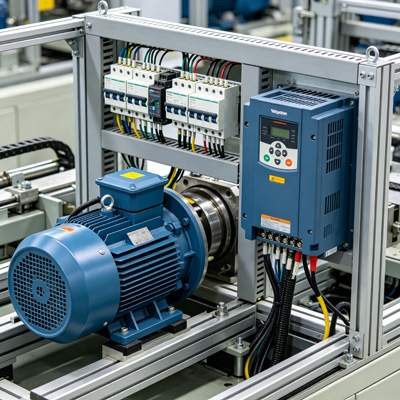

    DC voltage transducer for industrial automation and motor drive feedback

    Industrial Automation

    FAQ
    ❯

    A DC voltage transducer measures the input DC voltage and converts it into a proportional analog output signal (0–5V or 0–10V) through galvanic isolation, allowing safe integration with control and monitoring systems without direct electrical connection.

    ❯

    The terms are often used interchangeably. In industrial practice, a transducer typically refers to a device that converts voltage into a standardized analog output signal (such as 0–5V or 0–10V), while a sensor may refer more broadly to the detection element itself.

    ❯

    The key parameters to consider are input voltage range, output signal type (0–5V or 0–10V), required accuracy, auxiliary power supply availability, and whether galvanic isolation is needed between the measured circuit and the control system.
